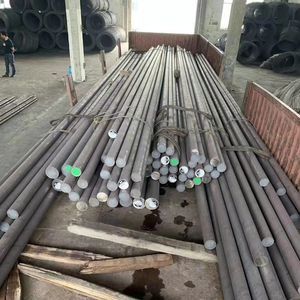

Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Cold Drawn Hot Rolled ASTM 316L Stainless Steel Round Bar with Bright Surface
Specifications
Certification :
AISI
MOQ :
88 kg
Price :
US $2.72-3.32 / kg
Model Number :
316L
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Bright
Diameter Range :
8 - 300mm
Length :
6m/pcs
Carbon Content :
0.03% max
Manganese Content :
2.0% max
Silicon Content :
0.75% max
Chromium Content :
16.0 - 18.0%
Molybdenum Content :
2.00 - 3.00%
Nickel Content :
10.0 - 14.0%
Tensile Strength :
485 MPa min
Yield Strength :
170 MPa min
Elongation :
40% min
Description
Cold Drawn/Hot Rolled ASTM 316L Stainless Steel Round Bar
Product Specifications
Product: Stainless Steel Round Bar
Grade: 316L / 1.4404 / AISI316L
Standard: ASTM A276/276M
Diameter: 8 - 300mm
Length: 6m/pcs or custom cutting available
Surface: Black, Bright
Additional Services: Cutting, Polishing, Heat Treatment
Available Stainless Steel Bar Products
Product Name Size Range Main Grades
Stainless Steel Round Bar (Hot Rolled) 8 - 300mm 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 17-4PH, 17-7PH
Stainless Steel Round Bar (Bright Polished) 3 - 50mm 201, 304, 316L, 310S, 2205, 630
Stainless Steel Square Bar 4×4 - 50×50mm 201, 304, 316L, 310S, 410, 420
Stainless Steel Hexagon Bar S4 - S70 201, 304, 316L, 310S, 410, 420
Stainless Steel Flat Bar 10×3 - 100×40mm 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 431, 440A/B/C, 2205, 2507, 904L, 254SMO, 17-4PH, 17-7PH
Stainless Steel Angle Bar 30×30 - 200×200mm 201, 304, 316L, 310S, 2205
Stainless Steel Channel Bar 50×25 - 200×100mm 201, 304, 316L, 310S, 2205
About 316L Stainless Steel
Grade 316 is the standard molybdenum-bearing austenitic stainless steel, second in importance to 304. The molybdenum content provides 316 with superior corrosion resistance compared to Grade 304, particularly offering higher resistance to pitting and crevice corrosion in chloride environments.
Grade 316L, the low carbon version of 316, is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over approximately 6mm). The austenitic structure also provides excellent toughness, even at cryogenic temperatures.
Chemical Composition
Element Min (%) Max (%)
Carbon (C)-0.03
Manganese (Mn)-2.0
Silicon (Si)-0.75
Phosphorus (P)-0.045
Sulfur (S)-0.03
Chromium (Cr)16.018.0
Molybdenum (Mo)2.003.00
Nickel (Ni)10.014.0
Nitrogen (N)-0.10
Mechanical Properties
Property Value
Tensile Strength (MPa) min485
Yield Strength 0.2% Proof (MPa) min170
Elongation (% in 50mm) min40
Rockwell B (HR B) max95
Brinell (HB) max217
Grade Specification Comparison
Standard Designation
UNS NoS31603
British BS316S11
Euronorm No1.4404
Euronorm NameX2CrNiMo17-12-2
Swedish SS2348
Japanese JISSUS 316L
Corrosion Resistance
Excellent performance in various atmospheric environments and corrosive media, generally more resistant than 304. Subject to pitting and crevice corrosion in warm chloride environments, and stress corrosion cracking above approximately 60°C. Considered resistant to potable water with up to about 1000 mg/L chlorides at ambient temperatures, reducing to about 500 mg/L at 60°C.
Heat Resistance
Good oxidation resistance in intermittent service to 870°C and continuous service to 925°C. Continuous use in the 425-860°C range is not recommended if subsequent aqueous corrosion resistance is important. Grade 316L is more resistant to carbide precipitation and can be used within this temperature range.
Heat Treatment
Solution Treatment (Annealing) - Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.
Welding
Excellent weldability by all standard fusion and resistance methods, both with and without filler metals. Heavy welded sections in Grade 316 require post-weld annealing for maximum corrosion resistance, which is not required for 316L. Not generally weldable using oxyacetylene welding methods.
Machining
316L stainless steel tends to work harden if machined too quickly. Low speeds and constant feed rates are recommended. Easier to machine compared to 316 stainless steel due to its lower carbon content.
Hot and Cold Working
Can be hot worked using common techniques with optimal temperatures of 1150-1260°C (minimum 930°C). Post-work annealing should be carried out for maximum corrosion resistance. Most cold working operations can be performed, with post-work annealing recommended to remove internal stresses.
Hardening and Work Hardening
Does not harden in response to heat treatments. Can be hardened by cold working, resulting in increased strength.
Applications
  • Food preparation equipment in chloride environments
  • Pharmaceutical equipment
  • Marine applications
  • Architectural components
  • Medical implants including pins, screws, and orthopedic implants
  • Fasteners and hardware
