Specifications
Certification :
ISO, AISI, ASTM, EN, DIN, JIS
MOQ :
50 kg
Price :
US $1.65-2.85 / kg
Model NO. :
630
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification :
OD 6-300mm
Production Capacity :
50000kgs
Tensile Strength :
1105-1310 MPa
Yield Strength :
1000-1170 MPa
Elongation :
10-16%
Hardness Rockwell C :
28-44 HRC
Hardness Brinell :
277-388 HB
Thermal Conductivity :
18.4-22.7 W/m.K
Specific Heat :
460 J/kg.K
Elec Resistivity :
800 nΩ.m
Density :
7750 kg/m³
Description
SS 630 Stainless Steel Round Bar Bright AISI 630 17-4PH
17-4PH Stainless Steel Overview
17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).
General Properties
Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance.
Mechanical properties can be optimized with heat treatment. Very high yield strength up to 1100-1300 MPa (160-190 ksi) can be achieved.
This grade should not be used at temperatures above 572°F (300°C) or at very low temperatures. It has adequate resistance to atmospheric corrosion or in diluted acids or salts where its corrosion resistance is equivalent to Alloy 304 or 430.
Applications & Standards
Applications Standards
  • Offshore (foils, helicopter deck platforms, etc.)
  • Food industry
  • Pulp and paper industry
  • Aerospace (turbine blades, etc.)
  • Mechanical components
  • Nuclear waste casks
  • ASTM A693 grade 630 (AMS 5604B) UNS S17400
  • EURONORM 1.4542 X5CrNiCuNb 16-4
  • AFNOR Z5 CNU 17-4PH
  • DIN 1.4542
Corrosion Resistance
Alloy 17-4 PH withstands corrosive attacks better than any of the standard hardenable stainless steels and is comparable to Alloy 304 in most media.
If there are potential risks of stress corrosion cracking, higher aging temperatures above 1022°F (550°C), preferably 1094°F (590°C), must be selected. 1022°F (550°C) is the optimum tempering temperature in chloride media, while 1094°F (590°C) is optimum in H2S media.
The alloy is subject to crevice or pitting attack if exposed to stagnant seawater for extended periods. It is corrosion resistant in chemical, petroleum, paper, dairy and food processing industries (equivalent to 304L grade).
Technical Specifications

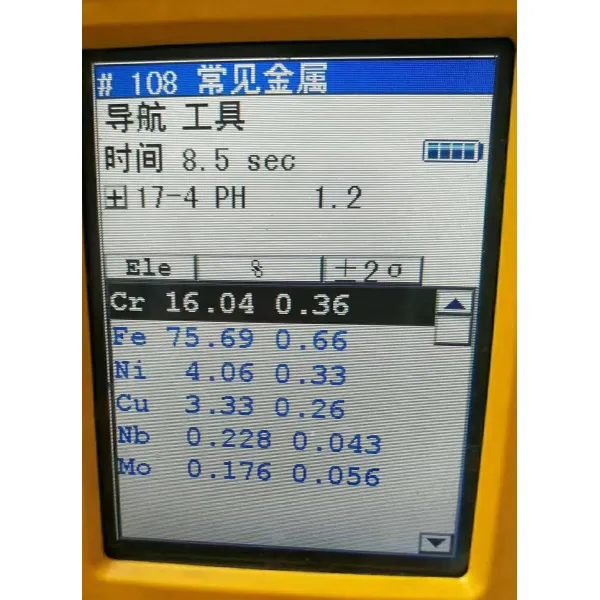

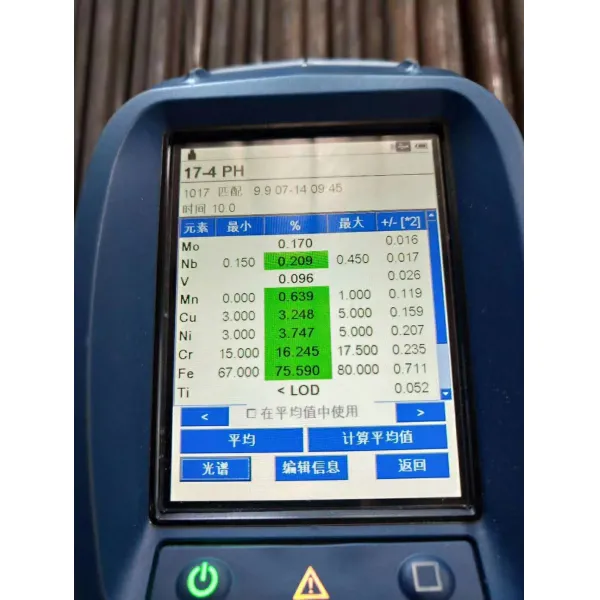

Chemical Composition
Composition ranges for grade 630 stainless steels:
Element Min (%) Max (%)
C-0.07
Mn-1.00
Si-1.00
P-0.04
S-0.030
Cr15.0017.50
Ni3.005.00
Cu3.005.00
Nb+Ta0.150.45
Mechanical Properties
Condition Tensile Strength (MPa) Yield Strength 0.2% Proof (MPa) Elongation (% in 50mm) Hardness Rockwell C (HR C) Hardness Brinell (HB)
Solution Treated1105 typ1000 typ15 typ38 max363 max
Condition 9001310 min1170 min10 min40 min388 min
Condition 1150930 min724 min16 min28 min277 min
Physical Properties
Property Value
Density (kg/m³)7750
Thermal Expansion 0-100°C (µm/m/°C)10.8
Thermal Expansion 0-315°C (µm/m/°C)11.6
Thermal Conductivity at 100°C (W/m.K)18.4
Thermal Conductivity at 500°C (W/m.K)22.7
Specific Heat 0-100°C (J/kg.K)460
Electrical Resistivity (nΩ.m)800
Alternative Grades Comparison
Alternative Grade Reasons for Choosing
431Higher toughness than 17-4PH, better availability in some sizes
416Free-machining martensitic stainless steel - better for repetition machining, lower cost
316Higher corrosion resistance to resist more severe environments, but with much lower strength than 17-4PH
2205Much better corrosion resistance than 17-4PH, with lower strength (but not as low as 316)
Heat Treatment
Solution treatment (Condition A): Grade 630 stainless steels are heated at 1040°C for 0.5 h, then air-cooled to 30°C. Small sections can be oil quenched.
Hardening: Grade 630 stainless steels are age-hardened at low temperatures to achieve required mechanical properties. During the process, superficial discoloration occurs followed by shrinkage at 0.10% for condition H1150, and 0.05% for condition H900.
Condition Hardening Temp (°C) Time (h) Typical Hardness Rockwell C Tensile Strength (MPa)
AAnn-361100
H900482144-
H9254964421170-1320
H10255524381070-1220
H10755804361000-1150
H1100593435970-1120
H1150621433930-1080
Fabrication & Processing
Welding: Grade 630 stainless steels can be welded using all conventional methods and do not require pre-heating. Care should be taken in designing and welding high strength steels to prevent weldment stresses.
Machining: Grade 630 stainless steels can be machined in their solution-treated condition. They have machining rates similar to grade 304 steels.
Applications
  • Engine components
  • High strength and boat propeller shafts
  • Plastic moulding dies
  • Valves and gears
