Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness
Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness
Specifications
Certification :
AISI
MOQ :
100 kg
Price :
US $1.85-6.95 / kg
Model NO. :
314
Shape :
Flat
Technique :
Hot Rolled
Surface Treatment :
Polished
Specification Width :
10-600mm
Production Capacity :
50000kgs
Size :
3 - 20mm*1500*6000mm
Surface :
NO.1
Tensile Strength :
689 MPa
Yield Strength :
345 MPa
Modulus of Elasticity :
200 GPa
Elongation at Break :
40%
Hardness Rockwell B :
85
Annealing Temperature :
1038-1149°C
Forging Temperature :
1093-1232°C
Description
Hot Rolled 314 Stainless Steel Sheets Plate
310SSi2 Heat Resistant SS Plate 3.0 - 20mm TISCO NO.1
Product Overview
Stainless steel grade 314 offers exceptional high-temperature resistance within the chromium-nickel steels series. The silicon content enhances oxidation and carburization resistance, though prolonged exposure to 649-816°C (1200-1500°F) may cause brittleness.
Product Specifications
Item314 Stainless Steel Sheet
BrandTISCO
Size3 - 20mm × 1500 × 6000mm
StandardJIS ASTM DIN
CertificateISO
SurfaceNO.1
PackingStandard export sea-worthy packing
ShipmentOcean shipping
Lead Time10-15 days after deposit
PaymentT/T, L/C, Western Union
Chemical Composition
ElementContent (%)
C ≤0.25
Si ≤1.50-3.00
Mn ≤2.00
P ≤0.045
S ≤0.030
Cr23.0-26.0
Ni19.0-22.0
Mechanical Properties
PropertyMetricImperial
Yield Strength272 MPa (≥)-
Tensile Strength549 MPa (≥)-
Impact13 J-
Elongation43%-
Reduction in Cross Section42%-
Brinell Hardness (HBW)433-
Tensile Strength689 MPa99,900 psi
Yield Strength345 MPa50,000 psi
Modulus of Elasticity200 GPa29,000 ksi
Elongation at Break40%40%
Hardness, Rockwell B8585
Equivalent Materials
AFNOR Z 12 CNS 25.20 | DIN 1.4841 | UNI X 16 CrNiSi 25 20 | UNI X 22 CrNi 25 20 | JIS SUS Y 31O
B.S. 310 S 24 | AMS 5522 | AMS 5652 | ASTM A276 | ASTM A314 | ASTM A473 | ASTM A580 | SAE 30314 | SAE J405 (30314)
Manufacturing Process
Grade 314 stainless steel undergoes heat treatment through annealing at 1038-1149°C (1900-2100°F), followed by water quenching or rapid air cooling. Hardening is achieved exclusively through cold working. For optimal machinability, we recommend using coolant and high-speed turning tools.
Forging, flanging, or working requires slow heating to 871°C (1600°F), thorough soaking, followed by rapid heating to 1093-1232°C (2000-2250°F).
Applications
  • Radiant tubes
  • Equipment for furnaces
  • Heat treatment components
  • Annealing and carburizing boxes
Related Products
Productsstainless steel plate
ManufacturerTISCO BAOSTEEL JISCO
ThicknessCR: 0.6 - 3.0mm HR: 3.0 - 80mm
SizeCR 1219×2438mm HR: 1500×6000mm
SurfaceCR: 2B HR: No.1
Grade304 316L 309S 310S 321 2205
Stock300 Tons in stock
Loading PortShanghai, China
Product Images

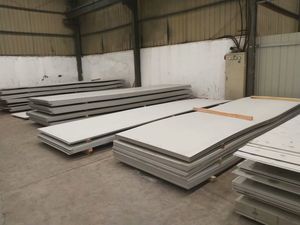

Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness Hot Rolled 314 Stainless Steel Plate Heat Resistant SS Plate 3.0 - 20mm Thickness
