Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Specifications
MOQ :
30 kg
Price :
US $1.49-2.49 / kg
Material Grade :
316L / 1.4404
Shape :
Angle
Technique :
Hot Rolled
Surface Treatment :
Bright
Angle Size Range :
30*30*3 - 200*200*10mm
Channel Size Range :
50*30*3 - 200*100*10mm
Length :
6m
Thickness Range :
3-10mm
Weight per Meter :
0.894-15.0kg
Standard :
ASTM A276
Angle Bar Sizes :
20×20 to 100×100mm
Channel Bar Sizes :
40×20 to 200×100mm
Processing Service :
Cutting
Packing :
Waterproof paper or wooden pallets
Available Grades :
201, 304, 310S, 316L, 321, 2205
Description
Corrosion Resistant 316L / 1.4404 Stainless Steel Angle Bar
Equal Angle Steel Bar manufactured to ASTM A276 Standard for superior corrosion resistance and structural integrity.
Product Specifications
Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade: 201, 304, 310S, 316L, 321, 2205, etc.
Standard: ASTM, GB, DIN
Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
Service: Cutting
Packing: Waterproof paper surround or wooden pallets
Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes and Weight per Meter
Size A×B (mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
20×200.8941.131.38
25×251.131.451.772.06
30×301.371.772.172.53
35×351.612.092.573.01
40×401.852.412.973.49
45×452.122.763.404.00
50×502.363.073.794.465.135.766.427.06
60×604.585.426.247.03
63×635.035.956.847.718.609.48
70×705.426.427.398.349.3110.3
75×755.826.897.958.9710.011.1
80×807.378.509.6110.711.8
90×908.339.6511.9012.213.4
100×1009.2810.812.2013.615.0
Stainless Steel Channel Bar - Standard Sizes and Weight per Meter
Size H×B (mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm
40×201.79
50×252.27
60×302.743.564.375.12
70×353.234.215.176.08
80×403.714.845.967.03
90×454.255.556.838.05
100×504.736.187.628.9810.311.713.041.2
120×609.2010.912.614.2
130×6510.111.913.815.517.319.1
140×7012.914.916.818.820.7
150×7513.916.018.120.222.226.3
160×8014.817.119.321.623.828.1
180×9016.719.422.024.527.032.0
200×10018.621.624.527.430.235.8
About Our Company
We are a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, and South Korea.
Material Range & Processing Capabilities
  • Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L, high-temperature resistant series, duplex stainless steel series, super stainless steel series
  • Equipment: Plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment
  • Processing Services: Material opening, strip cutting, plate cutting, oil mill wire drawing, full coil oil film wire drawing, 8K mirror finishing, titanium plating
  • Special Features: Thick plate zero cutting, cutting rounds, squares, shaped parts, casting parts, forging parts up to 150mm thickness
Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment industries

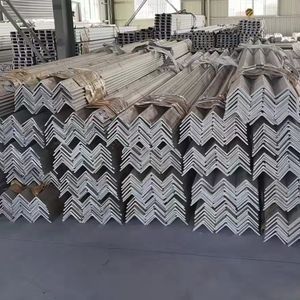

Product Gallery
Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar Corrosion Resistant 316L Stainless Steel Angle Bar Hot Rolled ASTM A276 Standard Equal Angle Steel Bar
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
  • High-voltage power transmission towers
  • Frame structures on both sides of main beams in steel bridge construction
  • Columns and booms of tower cranes on construction sites
  • Columns and beams in workshop structures
  • Air-conditioning and solar-powered shelf supports under windows
Widely utilized in building structures and engineering projects such as house beams, ship beams, industrial furnaces, and various industrial applications across multiple sectors.
