Specifications
MOQ :
30 kg
Price :
US $1.84-3.55 / kg
Shape :
U Channel
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification :
30*30-100*100
Grade :
201 304 310S 316L 321 2205
Standard :
ASTM GB DIN
Angle Bar Size :
30*30*3 - 200*200*10mm * 6m length
Channel Bar Size :
50*30*3 - 200*100*10mm * 6m length
Angle Bar Thickness :
3-10mm
Channel Bar Thickness :
3-12mm
Angle Bar Weight :
0.894-15.0 kg/m
Channel Bar Weight :
1.79-35.8 kg/m
Length :
6m
Material :
316L Stainless Steel
HS Code :
7222400000
Description
316L Stainless Steel Cold Drawn Steel Bar Equal Angle / Unequal Angle Bar
High-quality stainless steel angle bars and channel bars manufactured through cold drawing process for superior strength and dimensional accuracy.
Product Specifications
Product Name Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade 201, 304, 310S, 316L, 321, 2205, etc.
Standard ASTM, GB, DIN
Angle Bar Size 30×30×3 - 200×200×10mm × 6m length
Channel Bar Size 50×30×3 - 200×100×10mm × 6m length
Service Cutting
Packing Waterproof paper surround or wooden pallets
Brand TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes and Weight per Meter
Size (A×B mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
20×200.8941.131.38
25×251.131.451.772.06
30×301.371.772.172.53
35×351.612.092.573.01
40×401.852.412.973.49
45×452.122.763.404.00
50×502.363.073.794.465.135.766.427.06
60×604.585.426.247.03
63×635.035.956.847.718.609.48
70×705.426.427.398.349.3110.3
75×755.826.897.958.9710.011.1
80×807.378.509.6110.711.8
90×908.339.6511.9012.213.4
100×1009.2810.812.2013.615.0
Stainless Steel Channel Bar - Standard Sizes and Weight per Meter
Size (H×B mm) 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm
40×201.79
50×252.27
60×302.743.564.375.12
70×353.234.215.176.08
80×403.714.845.967.03
90×454.255.556.838.05
100×504.736.187.628.9810.311.713.041.2
120×609.2010.912.614.2
130×6510.111.913.815.517.319.1
140×7012.914.916.818.820.7
150×7513.916.018.120.222.226.3
160×8014.817.119.321.623.828.1
180×9016.719.422.024.527.032.0
200×10018.621.624.527.430.235.8
About Our Company
316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and South Korea.
Material Range
  • 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
  • High temperature resistant stainless steel series
  • Duplex stainless steel series
  • Super stainless steel series
Processing Capabilities
  • Plasma cutting machines
  • Coil material opening equipment
  • Laser cutting machines
  • 8K mirror, grinding wire drawing, film and titanium plating equipment
  • Material opening, strip cutting, plate cutting
  • Oil mill wire drawing, complete coil oil film wire drawing
  • Thick plate cutting up to 150mm thickness
  • Custom cutting of rounds, squares, and shaped components
  • Casting parts and forging parts manufacturing
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.
316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes 316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes 316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes

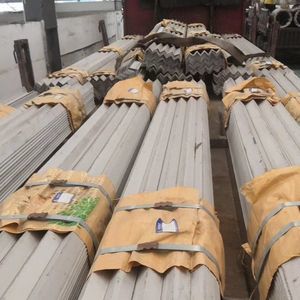

Product Photos
316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes 316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes 316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes 316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes
Applications
316L Stainless Steel Hot Rolled Angle Bar and Channel Bar in 30*30-100*100 Sizes
Stainless steel angle bars and channel bars are primarily used for frame structures including:
  • High-voltage power transmission towers
  • Frame structures on both sides of main beams in steel bridge construction
  • Columns and booms of tower cranes on construction sites
  • Columns and beams in workshop structures
  • Air-conditioning and solar-powered shelf supports under windows
Widely applied in building structures and engineering construction such as house beams, ship beams, industrial furnaces, and various structural applications across multiple industries.
