2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
Specifications
MOQ :
50 kg
Price :
US $4.55-4.95 / kg
Model Number :
2205 S32205 S31803
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Polished
Outer Diameter :
6-630mm
Material Grade :
S31803
Thickness :
0.8mm - 34mm
Length :
5.8m, 6m
Diameter Tolerance :
+/- 0.2mm
Thickness Tolerance :
+/- 0.02mm
Length Tolerance :
+/- 5mm
Chromium Content :
21-23%
Nickel Content :
4.5-6.5%
Molybdenum Content :
2.5-3.5%
Nitrogen Content :
0.08-0.2%
Description
Duplex Stainless Steel Tube 2205 S32205 S31803
High-performance duplex stainless steel pipes offering superior strength, corrosion resistance, and cost-effectiveness for demanding industrial applications.
Product Specifications
ParameterDetails
Product NameDuplex Stainless Steel Pipe S31803 00Cr22Ni5Mo3N Duplex 2205
Product TypeRound SS Seamless Pipe
StandardsASTM, GB, DIN, AISI
Material GradeS31803, 2205
Outer Diameter9.5mm - 813mm
Thickness0.8mm - 34mm
Length5.8m, 6m, or custom lengths
ToleranceOD: ±0.2mm, Thickness: ±0.02mm, Length: ±5mm
Surface TreatmentAnnealing, Pickling, Sandblasting
TestingSquash Test, Extended Test, Water Pressure Test, Heat Treatment, NDT
Chemical Composition
Element2205 (%)2507 (%)
C≤0.030≤0.030
Si≤1.00≤0.80
Mn≤2.00≤1.2
P≤0.03≤0.035
S≤0.02≤0.02
Cr21-2324-26
Ni4.5-6.56-8
Industry Applications
  • Petrochemical Industry Pipes and Tubes
  • Pharmaceutical Industry Equipment
  • Food Processing Industry
  • Aviation and Aerospace Components
  • Architectural Decoration Applications
2205 Duplex Stainless Steel Characteristics
Alloy 2205 (UNS S32305/S31803) is a duplex stainless steel composed of 22% chromium, 3% molybdenum, and 5-6% nickel-nitrogen alloy. It delivers exceptional strength, impact toughness, and comprehensive corrosion resistance.
Key Advantages
Superior Corrosion Resistance: Outperforms 316L and 317L austenitic stainless steel in pitting and crevice corrosion resistance.
High Strength: Twice the compressive strength of austenitic stainless steel, enabling weight reduction and cost savings.
Thermal Properties: Lower thermal expansion coefficient and higher thermal conductivity compared to austenitic grades.
Temperature Range: Optimal performance between -50°F to +600°F, with considerations for welded structures beyond this range.
Detailed Chemical Composition - 2205
ElementContent (%)
Ni4.50-6.50
Cr21.0-24.00
Si≤1.00
Mn≤2.00
C≤0.03
S≤0.03
P≤0.04
Mo2.5-3.5
N0.08-0.2
Product Applications
Common applications include chemical processing, desalination, material handling, oil and gas mining, pulp and paper, and petrochemical industries. Products constructed from 2205 duplex stainless steel include:
  • Cargo Tanks
  • Couplings and Fasteners
  • Heat Exchangers
  • Pipes and Pipe Fittings
  • Pressure Vessels and Rollers
  • Screw Conveyors and Shafts
  • Valve Components
Additional Features
  • Excellent durability, corrosion resistance, and high-temperature performance
  • Custom pipe specifications available upon customer request

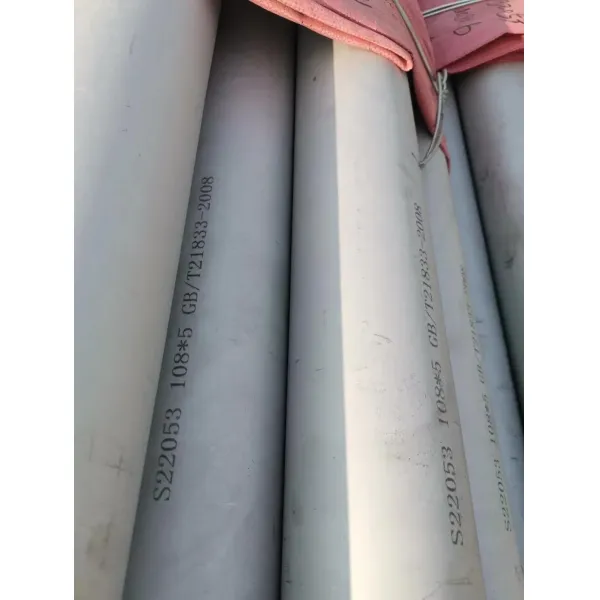

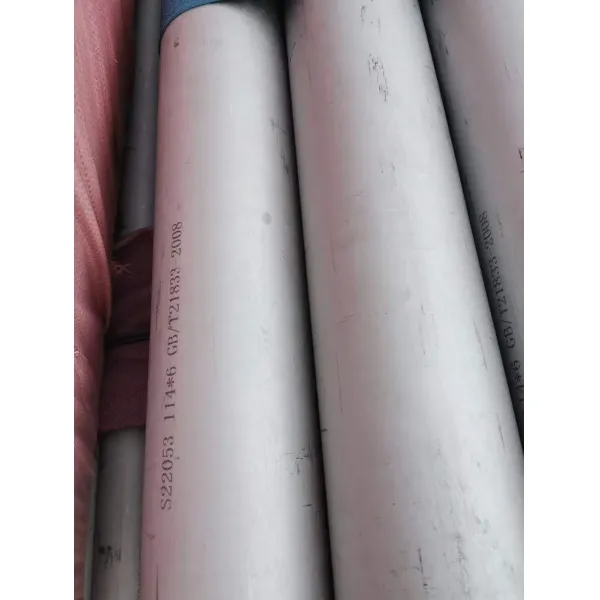

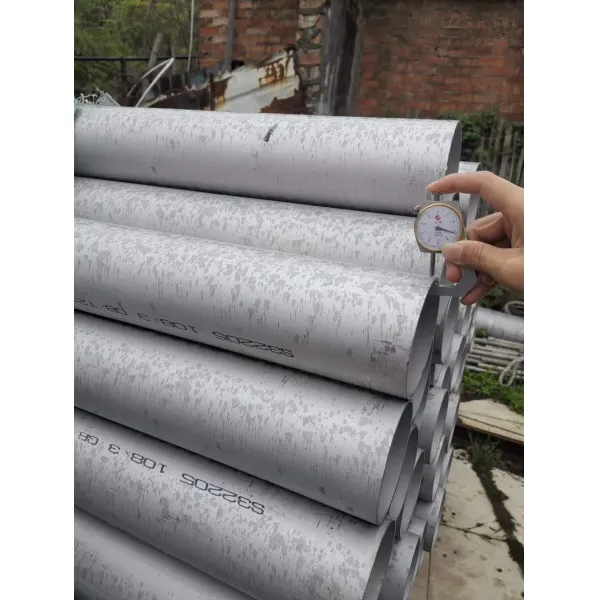

Product Images
2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface 2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface 2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface 2205 S32205 S31803 Duplex Stainless Steel Tube Cold Rolled with Polished Surface
Packaging
Standard industrial packaging with protective wrapping to prevent damage during transportation and storage.
