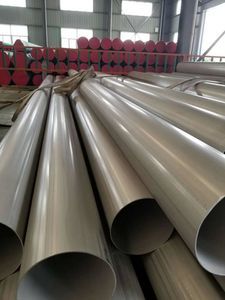

Cold Rolled Duplex Stainless Steel Pipe with Polished Surface and OD 6-630mm S31803 S32205
Cold Rolled Duplex Stainless Steel Pipe with Polished Surface and OD 6-630mm S31803 S32205
Specifications
MOQ :
50 kg
Price :
US $4.55-4.95 / kg
Model NO. :
s31803 s32205
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Polished
Specification :
OD 6-630mm
Production Capacity :
500000kgs
Material Grade :
S31803, 2205
Outer Diameter :
9.5mm-813mm
Thickness :
0.8mm-34mm
Length :
5.8m,6m
Diameter Tolerance :
+/- 0.2mm
Thickness Tolerance :
+/- 0.02mm
Length Tolerance :
+/- 5mm
Surface Finish :
annealing, pickling, sandblasting
Temperature Range :
-50°F/+600°F
Description
Duplex Stainless Steel Tubes S31803/S32205
High-quality duplex stainless steel tubes and pipes in grades 2205, S32205, and S31803, designed for demanding industrial applications requiring superior corrosion resistance and mechanical strength.
Product Specifications
Product Name Duplex Stainless Steel Pipe S31803 00Cr22Ni5Mo3N Duplex 2205
Product Type Round SS Seamless Pipe
Standards ASTM, GB, DIN, AISI
Material Grade S31803, 2205
Outer Diameter 9.5mm - 813mm
Thickness 0.8mm - 34mm
Length 5.8m, 6m, or as per customer requirements
Tolerance Outer Diameter: ±0.2mm, Thickness: ±0.02mm, Length: ±5mm
Surface Treatment Annealing, Pickling, Sandblasting
Testing Squash Test, Extended Test, Water Pressure Test, Heat Treatment, NDT
Chemical Composition
Material C Si Mn P S Cr Ni
2205 ≤0.030 ≤1.00 ≤2.00 ≤0.03 ≤0.02 21-23 4.5-6.5
2507 ≤0.030 ≤0.80 ≤1.2 ≤0.035 ≤0.02 24-26 6-8
Industry Applications
  • Pipe and Tubes for Petrochemical Industry
  • Pharmaceutical Industry
  • Food Industry
  • Aviation and Aerospace Industry
  • Architectural Decoration Industry
2205 Duplex Stainless Steel Characteristics
Alloy 2205 (UNS S32305/S31803) is a duplex stainless steel composed of 22% chromium, 3% molybdenum and 5-6% nickel-nitrogen alloy. It offers high strength, excellent impact toughness, and superior overall and local stress corrosion resistance.
Key Advantages

Compared with 316L and 317L austenitic stainless steel, 2205 alloy provides superior pitting corrosion and crevice corrosion resistance. It features high corrosion resistance, lower thermal expansion coefficient, and higher thermal conductivity than austenitic grades.

The compressive strength of 2205 is twice that of austenitic stainless steel, allowing designers to reduce weight while maintaining performance, resulting in cost savings compared to 316L and 317L.

Detailed Chemical Composition - 2205 Grade
Element Content (%)
Ni 4.50-6.50
Cr 21.0-24.00
Si ≤1.00
Mn ≤2.00
C ≤0.03
S ≤0.03
P ≤0.04
Mo 2.5-3.5
N 0.08-0.2
Product Features

2205 duplex stainless steel is particularly suitable for temperature ranges of -50°F to +600°F. For applications beyond this range, special considerations may be required, especially for welded structures.

The yield strength of 2205 is twice that of austenitic stainless steel, enabling weight reduction in product design while providing cost advantages over 316 and 317L alloys.

Common Applications
Chemistry, desalination, material handling, oil and gas mining, pulp and paper, petrochemicals. Products constructed from duplex stainless steel include cargo tanks, couplings, diaphragm seals, fasteners, heat exchangers, hubs, exterior pipes, pipe fittings, pressure rollers, pressure vessels, screw conveyors, shafts, and valve parts.
Additional Features
  • Chemical and Physical Characteristics: Durable, corrosion resistant, and high-temperature resistant
  • Custom pipes available according to specific customer requirements
