2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment
2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment
Specifications
Certification :
ISO, ASTM
MOQ :
50 kg
Price :
US $7.85 / kg
Model NO. :
2205
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Pickling
Outer Diameter :
10.3mm - 1219mm
Wall Thickness :
1.24mm - 54.59mm
Length :
as per customer's requirement
Material Grade :
S32205, S31803, S32304, S32750, F51, F53, 2205, 2507
Yield Strength :
550 MPa min (UNS S32750), 450 MPa min (UNS S31803)
Tensile Strength :
800 MPa min (UNS S32750), 620 MPa min (UNS S31803)
Elongation :
15% (UNS S32750), 25% (UNS S31803)
Hardness :
20 HRC
Production Capacity :
50000kgs
Transport Package :
Wooden Pallet
Specification :
OD 6-630mm
Description
Welded Duplex Steel Pipe 2205 Duplex Seamless Steel Pipe
2507 Super Duplex Stainless Steel Pipe S32750 Seamless Pipe
ASTM A789 / A790 2205 / 2507 Duplex Steel Seamless Pipe With Cold Rolled
Duplex stainless steel was developed to combat common corrosion problems encountered with the 300 series stainless steels. "Duplex" describes a family of stainless steels that are neither fully austenitic (like 304 stainless) nor purely ferritic (like 430 stainless). The advantage of a duplex structure is that it combines the favorable qualities of ferritic alloys (stress corrosion cracking resistance and high strength) with those of austenitic alloys (ease of fabrication and corrosion resistance).
UNS32750 super duplex stainless steel pipes provide enhanced corrosion resistance compared to other materials. These super duplex steel pipes offer greater tensile and yield strength, excellent ductility, and superior stress corrosion cracking resistance. They help clients reduce purchase costs while maintaining quality standards.
Product Specifications
Material Grade S32205, S31803, S32304, S32750, F51, F53, 2205, 2507
Outer Diameter 10.3mm - 1219mm
Wall Thickness 1.24mm - 54.59mm
Length As per customer's requirement
Standard ASTM A789; ASTM A790; EN 10216-5
Applications
  • Petroleum industry
  • Chemical industry
  • Instrumentation
  • Industrial transportation
  • Mechanical structure industry
  • High corrosion resistance applications (offshore industry)
Chemical Composition
Grade C max Si max Mn max P max S max Cr Ni Mo N
UNS S32750 0.03 0.8 1.2 0.03 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.03 1 2 0.02 0.02 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
Physical Properties
Grade Y.S. MPa min T.S. Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
Product Advantages
  • Superior surface finish
  • Better mechanical properties
  • More precise dimensions
  • Comprehensive inspection methods and equipment
Ordering Information
Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time 30 working days after receiving deposit (based on order quantity)
Package Iron case; woven bag or as per customer's requirement
Quality Documentation Mill Test Certificate supplied with shipment, Third Party Inspection acceptable
Quality Testing
  • NDT (Ultrasonic test, Eddy Current test)
  • Mechanical Test (Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)
  • Metal Test (Metallographic Analysis, Impact Test - High/low temperature)
  • Chemical Analysis (Photoelectric Emission Spectroscopic)
Main Markets
Europe, Middle East, Southeast Asia, South America

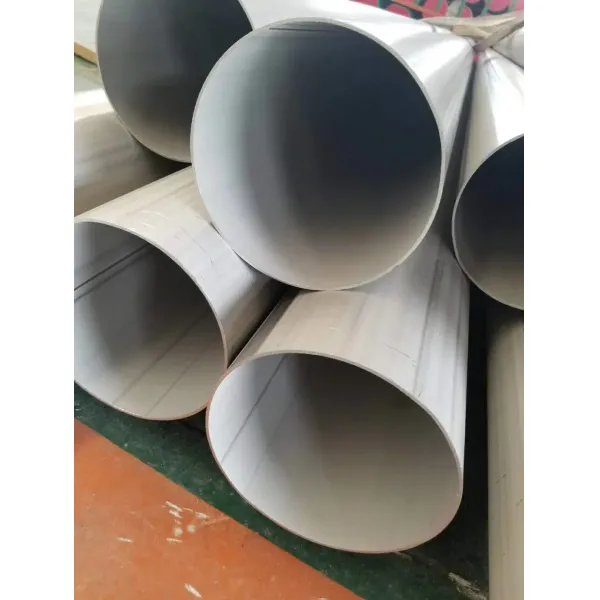

Product Images
2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment 2205 Duplex Cold Rolled Seamless Steel Pipe with Pickling Surface Treatment
