ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
Specifications
Certification :
AISI, ASTM
MOQ :
50 kg
Price :
US $3.15-6.65 / kg
Model NO. :
316L
Shape :
Round
Technique :
Cold-Drawing
Surface Treatment :
Polished
Outer Diameter :
1.0-1220mm
Wall Thickness :
0.1-150mm
Length :
3m, 5.8m, 6m, 11.8m
Carbon Content :
≤0.03
Silicon Content :
≤1.00
Manganese Content :
≤2.00
Phosphorus Content :
≤0.045
Sulfur Content :
≤0.03
Nickel Content :
10.0~14.0
Chromium Content :
16.0~18.0
Molybdenum Content :
2.00~3.00
Description
ASTM A312 TP316L Seamless Pipe 1.4404 Stainless Steel Pipe
High-quality ASTM A312 316/316L stainless steel round pipes with pickled surface treatment, specifically designed for marine applications and demanding industrial environments.
Product Specifications
Standards: ASTM A249, ASTM A268, ASTM A269, ASTM A312
Material: 316, 316L Stainless Steel
Outer Diameter: 1.0-1220mm (1/8"-48")
Wall Thickness: 0.1-150mm (SCH 5S-XXS)
Length: 3m, 5.8m, 6m, 11.8m, or custom lengths available
Surface Treatment: Pickled, annealed, polished, bright, sand blast, hair line
316 vs 316L Stainless Steel Comparison
Both 316 and 316L stainless steels are molybdenum-containing alloys that offer superior performance compared to 310 and 304 stainless steels. The molybdenum content provides enhanced corrosion resistance, making these steels ideal for marine environments and applications requiring chloride resistance.
316L stainless steel contains a maximum carbon content of 0.03%, making it suitable for applications that cannot be annealed after welding and require maximum corrosion resistance. The molybdenum content in 316L is slightly higher than in standard 316 stainless steel.
Chemical Composition Comparison
Material C Si Mn P S Ni Cr Mo N
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 10.0~14.0 16.0~18.5 2.00~3.00 ≤0.10
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10
Mechanical Properties Comparison
Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB) max
316 S31600 515 205 40 217 95
316L S31603 485 170 40 217 95

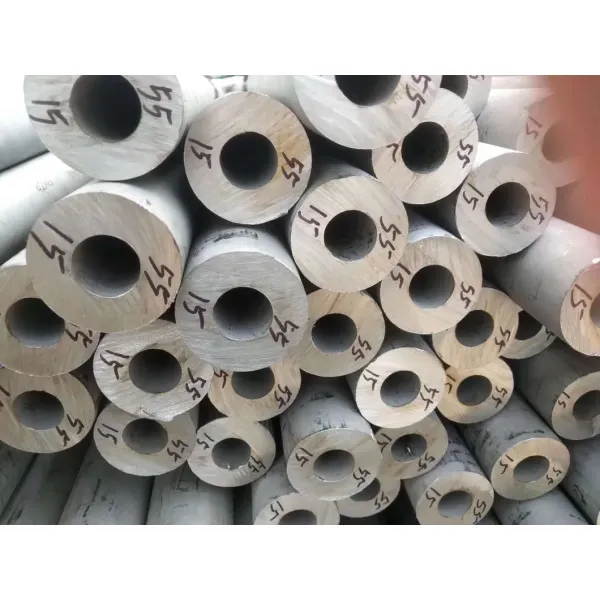

Product Images
ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique ASTM A312 TP316L Seamless Stainless Steel Pipe 1.4404 with Cold-Drawing Technique
