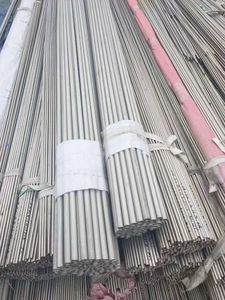

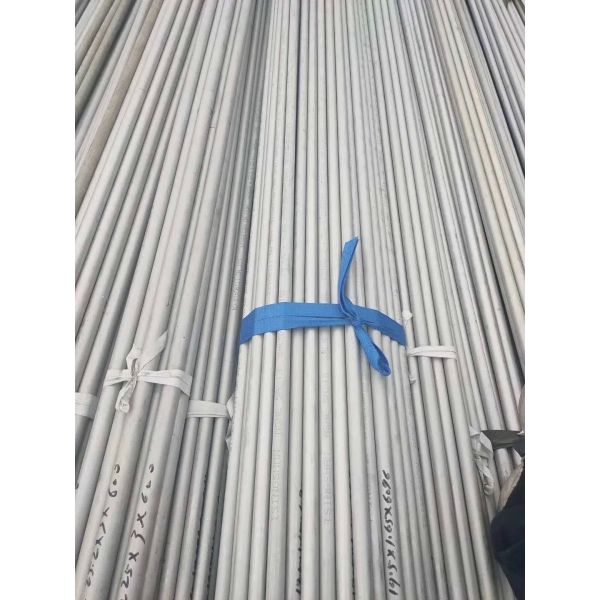

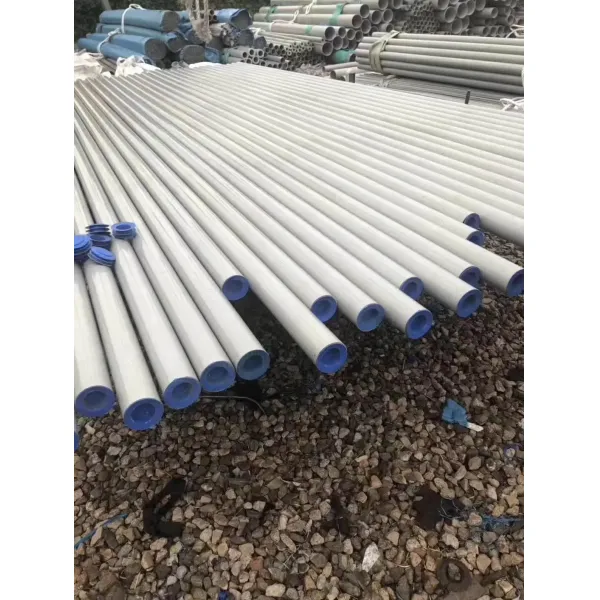

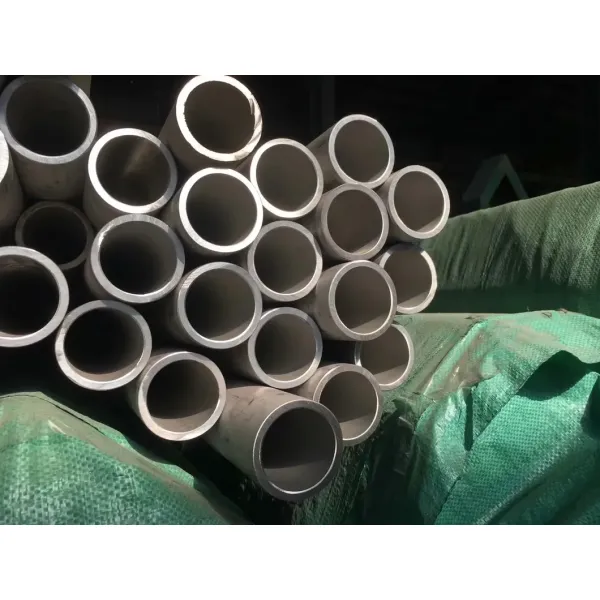

316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
316Ti ASTM A312 Cold Rolled Seamless Stainless Steel Pipe for High-Temperature Applications
Specifications
Certification :
AISI, ASTM, EN, DIN
MOQ :
30 kg
Price :
US $3.25-6.55 / kg
Model NO. :
316ti
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Pickling
Specification :
OD 6-630mm
Production Capacity :
500000kgs
Carbon Content :
0.08% max
Silicon Content :
0.75% max
Manganese Content :
2.00% max
Phosphorus Content :
0.045% max
Sulfur Content :
0.030% max
Chromium Content :
16.00-18.00%
Nickel Content :
10.00-14.00%
Molybdenum Content :
2.00-3.00%
Tensile Strength :
515 MPa min
Description
316Ti Seamless Steel Pipe ASTM A312 316Ti Stainless Steel Pipe
316Ti/1.4571 ASTM A312 Seamless Heat Exchanger Stainless Steel Tubes
ASME SA213 / ASTM A213 316Ti UNS S31603, EN 10216-5 1.4571 Stainless Steel. Similar to Grade 316L except that 316Ti offers superior high-temperature strength and mechanical performance. Ideal for equipment exposed to aggressive corrosive conditions and high-temperature applications.
  • Automotive flexible connectors
  • Welded bellows
  • Chimney liners
  • Flexible ducting
Chemical Composition
Weight % C Si Mn P S Cr Ni Mo Ti Fe
TP316Ti 0.08 max 0.75 max 2.00 max 0.045 max 0.030 max 16.00-18.00 10.00-14.00 2.00-3.00 5×(C+N)-0.70 Rem
EN 10216-5 1.4571 / X6CrNiMoTi17-12-2 0.08 max 1.00 max 2.00 max 0.040 max 0.015 max 16.50-18.50 10.50-13.50 2.00-2.50 5×C-0.70 Rem
AISI 316 Ti 0.08 max 0.75 max 2.00 max 0.045 max 0.030 max 16.00-18.00 10.00-14.00 2.00-3.00 5× (C+N)-0.70 Rem
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness Rockwell B (HR B) max Hardness Brinell (HB) max
316H 515 205 35% 75 205
