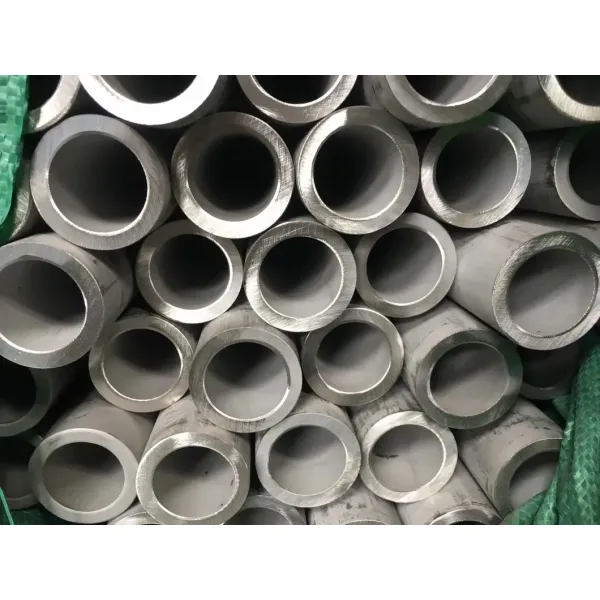

316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
316Ti Stainless Steel Seamless Pipe Cold Rolled for High-Temperature Strength Applications
Specifications
Certification :
AISI, ASTM, EN, DIN
MOQ :
30 kg
Price :
US $3.25-6.55 / kg
Model NO. :
316ti
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Pickling
Specification :
OD 6-630mm
Production Capacity :
500000kgs
Tensile Strength :
515 MPa (min)
Yield Strength :
205 MPa (min)
Elongation :
35% (min)
Hardness :
Rockwell B 75 max, Brinell 205 max
Thermal Conductivity :
14.6 W.m-1.°K-1
Thermal Expansion :
16.5 μm/μm/°C
Modulus Elasticity :
193 GPa
Electrical Resistivity :
7.4 μohm/cm
Density :
7.99 g/cm3
Description
SUS316Ti Stainless Steel Seamless Pipe
316Ti/1.4571 ASTM A312 Seamless Heat Exchanger Stainless Steel Tubes
ASME SA213 / ASTM A213 316Ti UNS S31603, EN 10216-5 1.4571 Stainless Steel. Similar to Grade 316L with enhanced high-temperature strength and mechanical properties. Ideal for equipment exposed to aggressive corrosive conditions and high-temperature applications including automotive flexible connectors, welded bellows, chimney liners, and flexible ducting.
Chemical Composition
ASTM A213 TP316Ti Chemical Composition (Weight %)
Element C Si Mn P S Cr Ni Mo Ti Fe
TP316Ti 0.08 max 0.75 max 2.00 max 0.045 max 0.030 max 16.00-18.00 10.00-14.00 2.00-3.00 5×(C+N)-0.70 Rem
EN 10216-5 1.4571 / X6CrNiMoTi17-12-2 Chemical Composition
Element C Si Mn P S Cr Ni Mo Ti Fe
1.4571 0.08 max 1.00 max 2.00 max 0.040 max 0.015 max 16.50-18.50 10.50-13.50 2.00-2.50 5×C-0.70 Rem
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness Rockwell B (HR B) max Hardness Brinell (HB) max
316Ti 515 205 35% 75 205
Material Characteristics: UNS S31635 is a titanium-stabilized version of 316 molybdenum-bearing austenitic stainless steel. The 316 alloys offer superior resistance to general corrosion and pitting/crevice corrosion compared to conventional chromium-nickel austenitic stainless steels like 304. They provide higher creep, stress-rupture, and tensile strength at elevated temperatures.
Sensitization Resistance: Titanium additions stabilize the structure against chromium carbide precipitation, which is the source of sensitization. This significantly reduces susceptibility to sensitization in service by limiting chromium carbide formation. The alloy can be used for extended periods at elevated temperatures without compromising corrosion resistance. 316Ti has equivalent corrosion resistance to sensitization as the low carbon version 316L.
Standard Specifications
  • ASTM A213
  • BS EN 10216 part 5
  • Custom specifications available
Available Product Forms
  • Straight tubes
  • Coiled tubes
  • Seamless construction
  • Seam welded, cold redrawn and annealed
Typical Applications
  • Chemical processes
  • High temperature applications
  • Automotive components
  • Control lines
Primary Industries
  • Chemical processing
  • Oil and Gas
  • Automotive manufacturing
Detailed Mechanical Properties (Annealed Temper)
Property Value Unit
Tensile Rm 75 / 515 ksi (min) / MPa (min)
R.p. 0.2% Yield 30 / 205 ksi (min) / MPa (min)
Elongation (2" or 4D gl) 35 % (min)
Physical Properties (Room Temperature)
Property Value Unit
Specific Heat (0-100°C) 500 J.kg⁻¹.°K⁻¹
Thermal Conductivity 14.6 W.m⁻¹.°K⁻¹
Thermal Expansion 16.5 μm/μm/°C
Modulus Elasticity 193 GPa
Electrical Resistivity 7.4 μohm/cm
Density 7.99 g/cm³
Complete Chemical Composition (% by weight)
Element Min Max
C - 0.08
Si - 0.75
Mn - 2
P - 0.045
S - 0.03
Cr 16 18
Mo 2 3
N - 0.1
Fe Balance
Ni 10 14
Ti 5x%(C+N)
