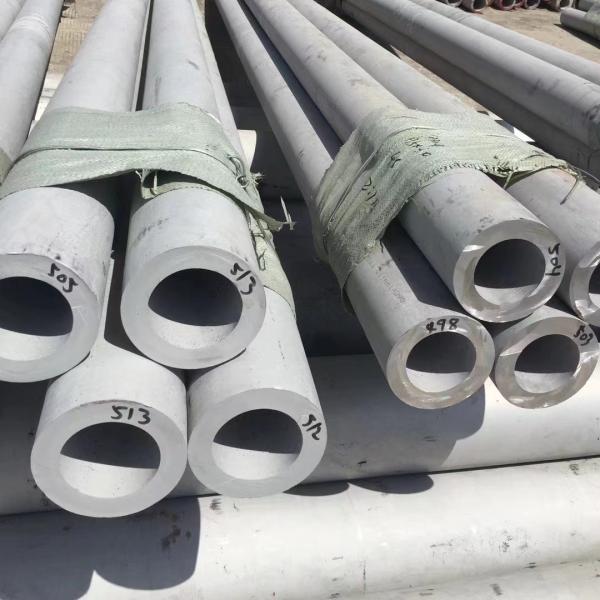

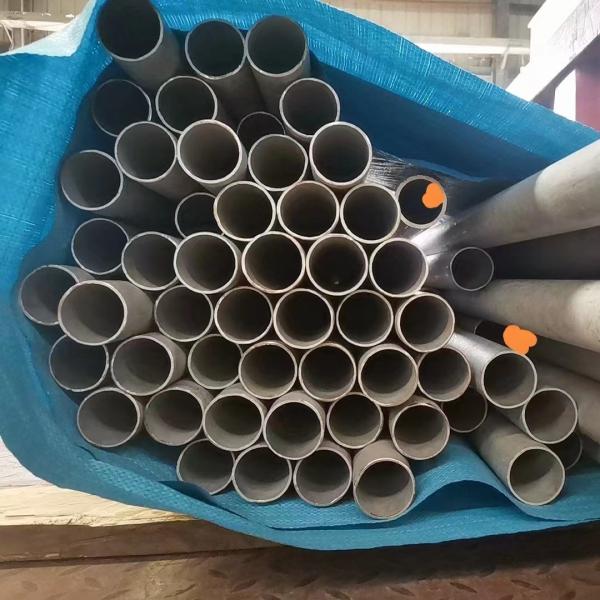

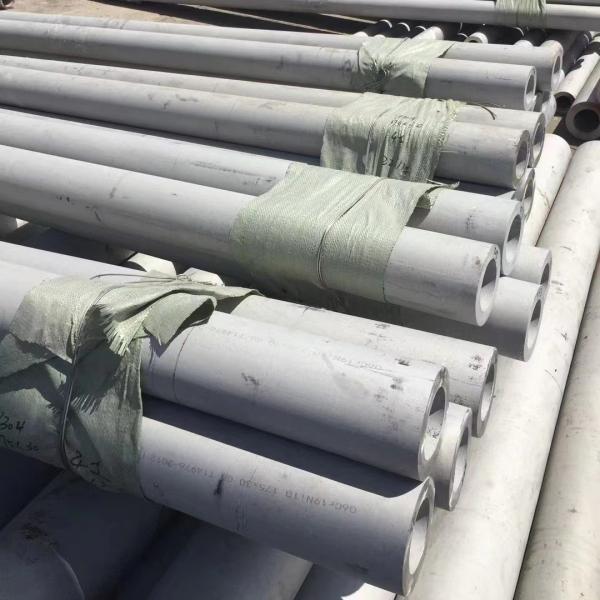

Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe
Specifications
Brand Name :
DELTA
Model Number :
304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
4000-5000 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
253ma Stainless Steel Pipe
Grade :
304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc
Standard :
ASTM GB EN
Length :
6m or custom cutting any length as request
Diameter :
DN10 - DN400
Wall thickness :
SCH10 - XXS or unstandard size
Type :
seamless pipe
Service :
cutting, polishing
application :
Heat exchanger
Packing :
wooden box or PP bag
Description

Super Austenitic 317L Stainless Steel Pipe AISI316L / UNS S31703 Stainless Tube Seamless Pipe

317L Stainless Steel Tubing

Similar in composition to 316L and 304L, alloy 317L is an austenitic molybdenum, chromium, nickel stainless alloy. Due to the higher moly content, 317L provides enhanced resistance to pitting and stress corrosion cracking particularly in chloride or halide-rich environments. 317L has higher creep, stress-to-rupture, and tensile strength than its 316L and 304L counterparts which makes it a great solution to demanding applications found offshore, in pulp & paper mills and in chemical processing plants.

Products Specification of 317L Stainless Steel Pipe

Products Name 317L Stainless Steel pIpe
Diameter DN6 - DN500
Wall Thickness SCH10S - XXS or unstandard size as request
Length 6m or cutting any length as request
Standard ASTM JIS EN DIN
Technique Hot Rolled / cold drawn
Type Seamless Pipe / Welded Pipe
Other Grade 201 304 304L 309S 310S 316L 316Ti 316LMod 317L 321 347 410 904L 254SMO 253MA 2205 2507 654SMO 926 400 c276 c22 C4 600 625 800 825.etc
MOQ 500 kgs
Loading Port Shanghai Port
Packing wooden box or ppbag

Chemical Composition of 317L Stainless Steel Pipe

Chemical Requirements

ASTM TP317L (UNS S31703)
Composition %

C

Carbon

Mn
Manganese

P
Phosphorous

S
Sulfur

Si
Silicon

Cr
Chromium

Ni

Nickel

Mo
Molybdenum

0.030 max

2.00 max

0.045 max

0.030 max

1.00 max

18.0–20.0

11.0–15.0

3.0–4.0

Dimensional Tolerances

OD

OD Tolerance

Wall Tolerance

≤ .500”

± .005"

± 10%

.500”–1.5” excl

± .005”

± 10%

Size Range

Outside Diameter (OD)

Wall Thickness

6 - 508mm

SCH10S SCH40S SCH80S SCH160

APPLICATIONS

Alloy 317L is commonly used to handle sulfur, pulp liquor, acid dyestuffs, acetylating and nitrating mixtures, bleaching solutions, severe coal and oil, and many chemical compounds. Some other applications that use alloy 317L include:

  • Paper and pulp handling equipment
  • Chemical and petrochemical processing equipment
  • Condensers in fossil and nuclear fueled power generation stations
  • Food processing equipment
  • Textile equipment
