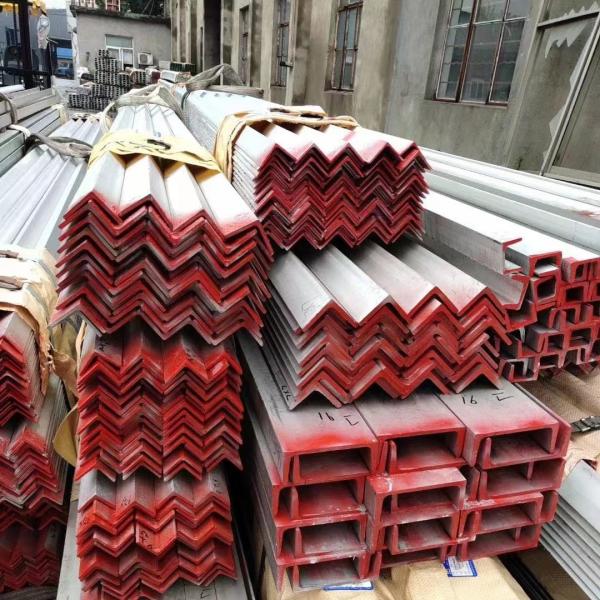

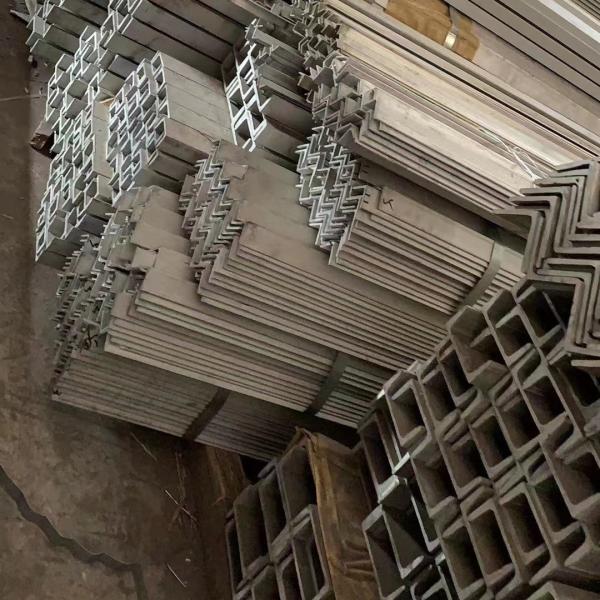

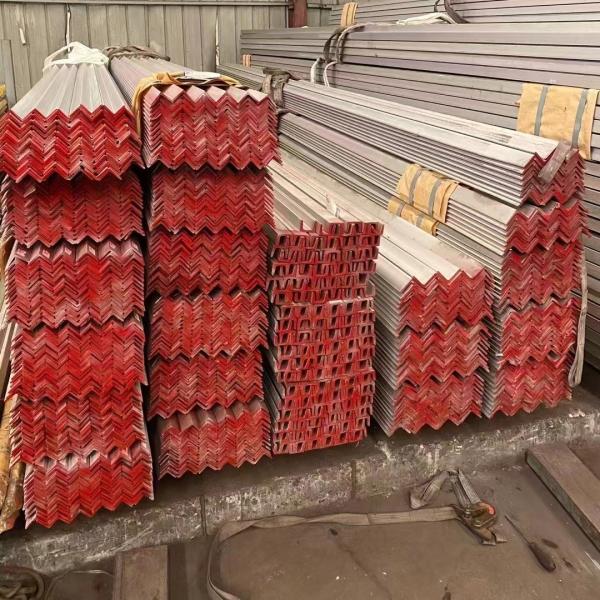

Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Stainless Steel U Channel Bar / U Shape Stainless Steel Channel Bar Grade 304 316L 310S
Specifications
Brand Name :
DELTA
Model Number :
201 304 316L 321 309S 310S 2205 17-4PH 2507
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2400 - 3500 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Shape :
Angle Bar / channel bar
Standard :
ASTM EN GB JIS
Grade :
201 304 316L 309S 310S 321 2205 2507.etc
Application :
Construction,Industry,surgical tools,seawater equipment.,kitchenware
Length :
Customers' Requirements,5.8m,6m,2m-6m,or as required
Size :
custom as request
Packing :
Standard Seaworthy Package,In wooden cases(for FCL/ LCL shipment)
Service :
Cutting, surface finishing
Description

201 Stainless Steel Angle Bar Channel Bar Flat Bar ASTM EN DIN GB JIS Standard SS Bars

Products Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade 201 304 304L 310S 316L 2205.etc
Finishing Hot rolled
Diameter 30*30*3- 120*120*12
Length 6m or custom cutting as request
Service Cutting
MOQ 500 Kgs
Deliver time 10 - 15 Days based on the quantity
Packing wooden box, or packing as request
Loading Port Shanghai Port. Ningbo Port
Other Shape Round, Square, Flatness, Hexagonal , Angle, Channel
Company Type Factory

We produce and distribute hot rolled and laser fused stainless steel channels throughout the world in both imperial and metric sizes. Please select the catalog for your region below to view a list of available standard size channels. Our range of capabilities far exceeds standard sections, though. We are a profile solutions company, and custom shapes, sizes and alloys are available upon request. If you do not see what you are looking for, please contact us, and our experienced staff will help guide you with your custom profile needs. If you can dream it up, chances are we can make it.

Chemical composition

Grade C Si Mn P S Cr Ni Mo Ti N Cu Nb
201 ≤0.15 ≤1.0 5.50-7.50 ≤0.05 ≤0.03 16.00-18.00 3.50-5.50 - - 0.05-0.25 - -
202 ≤0.15 ≤1.0 7.50-10.00 ≤0.05 ≤0.03 17.00-19.00 4.00-6.00 - - 0.05-0.25 - -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 16.00-18.00 6.00-8.00 - - ≤0.1 - -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 8.00-10.00 - - ≤0.1 - -
303 ≤0.15 ≤1.0 ≤2.0 ≤0.2 ≥0.15 17.00-19.00 8.00-10.00 ≤0.6 - ≤0.1 - -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 8.00-10.00 - - - - -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 18.00-20.00 8.00-10.00 - - - - -
304H 0.04-0.1 ≤1.0 ≤2.0 ≤0.035 ≤0.03 18.00-20.00 8.00-10.00 - - - - -
304N ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 18.00-20.00 8.00-10.00 - - 0.10-0.16 - -
304J1 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 18.00-20.00 6.00-9.00 - - - 1.00-3.00 -
305 ≤0.12 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 10.50-13.00 - - - - -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 22.00-24.00 12.00-15.00 - - - - -
310S ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 24.00-26.00 19.00-22.00 - - - - -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16.00-18.00 10.00-14.00 2.00-3.00 - - - -
316L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16.00-18.00 12.00-15.00 2.00-3.00 - - - -
316H ≤0.1 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16.00-18.00 10.00-14.00 2.00-3.00 - - - -
316N ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16.00-18.00 10.00-14.00 2.00-3.00 - 0.10-0.16 - -
316Ti ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16.00-19.00 11.00-14.00 2.00-3.00 ≥5C - - -
317L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 18.00-20.00 11.00-15.00 3.00-4.00 - - - -
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 9.00-12.00 - 5C-0.7 - - -
347 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 9.00-12.00 - - - - 10C-1.10
347H ≤0.1 ≤1.0 ≤2.0 ≤0.035 ≤0.03 17.00-19.00 9.00-12.00 - - - - 8C-1.10
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 21.00-24.00 4.50-6.50 2.50-3.50 - 0.08-0.20 - -
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 24.00-26.00 6.00-8.00 3.00-5.00 - 0.24-0.32 - -
904L ≤0.02 ≤1.0 ≤2.0 ≤0.045 ≤0.03 19.00-23.00 23.00-28.00 4.00-5.00 - - 1.00-2.00 -
C276 ≤0.02 ≤0.05 ≤1.0 - - 14.00-16.50 Other - - - - -
Monel400 ≤0.3 ≤0.5 ≤2.0 - ≤0.024 - ≥63 - - - 28-34 -
409L ≤0.03 ≤1.0 ≤1.0 ≤0.035 ≤0.03 17.00-19.00 - - - - - -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 11.50-13.50 - - - - - -
410L ≤0.03 ≤1.0 ≤1.0 ≤0.035 ≤0.03 11.50-13.50 - - - - - -
420J1 0.16-0.25 ≤1.0 ≤1.0 ≤0.035 ≤0.03 12.00-14.00 - - - - - -
420J2 0.26-0.40 ≤1.0 ≤1.0 ≤0.035 ≤0.03 12.00-14.00 - - - - - -
430 ≤0.12 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-18.00 - - - - - -
436L ≤0.025 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-19.00 - - - - - -
439 ≤0.03 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-18.00 - - - - - -
440A 0.60-0.75 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-18.00 - ≤0.75 - - - -
440B 0.75-0.95 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-18.00 - ≤0.75 - - - -
440C 0.95-1.2 ≤1.0 ≤1.0 ≤0.035 ≤0.03 16.00-18.00 - ≤0.75 - - - -
441 ≤0.03 0.2-0.8 ≤0.7 ≤0.03 ≤0.015 17.50-18.50 - ≤0.5 0.1-0.5 ≤0.025 - 0.3+3C-0.9
