Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Specifications
Brand Name :
DELTA
Model Number :
304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
4000-5000 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
stainless steel pipe tube
Grade :
304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc
Standard :
ASTM GB EN
Length :
6m or custom cutting any length as request
Diameter :
DN10 - DN400
Wall thickness :
SCH10 - XXS or unstandard size
Type :
seamless pipe
Service :
cutting, polishing
application :
Heat exchanger
Packing :
wooden box or PP bag
Description

Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe

Product Name ASTM A312 TP316L Stainless Steel Pipe
Out Diameter 19-813mm
Wall Thickness 0.5-60mm
Material Standard ASTM A312
Steel Grade ASTM A312 TP316L
Surface Pickling, Solid solution, Polishing
Packing Plastic Film, Plastic Cap, Bundle, Woven bag, Wooden Case, Iron Frame
Delivery Within 3 days with stock, 15-50 days based on production
Payment T/T, D/P, L/C at sight, Usance L/C etc.

What is stainless steel pipe

Stainless steel seamless pipe is a long strip of steel with a hollow section and no seams around it. The thicker the wall thickness of the product, the more economical and practical it is, and the thinner the wall thickness, the higher its processing cost will be.

The process of this product determines its limited performance. Generally, seamless steel pipes have low precision, uneven wall thickness, low brightness inside and outside the tube, high cost of cutting to length, and pits and black spots on the inside and outside are not easy to remove. Its detection and Shaping must be handled offline. Therefore, it embodies its superiority in terms of high pressure, high strength, and mechanical structural materials.

Chemical Composition of 316L Stainless Steel Pipe

Grade C Mn P S Si Cr Ni
TP316L 0.035max 2.00max 0.045max 0.030max 1.00max 16.00-18.00 10.00-14.00

Mechanical Property
Grade

Tensile strength

Min

Ksi(Mpa)

Yield strength

Min

Ksi(Mpa)

Elongation

%

min
TP316L 70(485) 25(170) 35

Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe

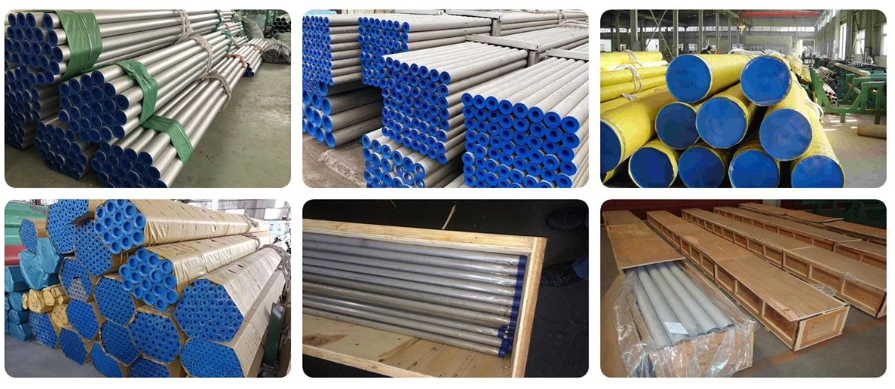

Packing Show

Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe

Why Choose US

1.We have a professional product inspection team. Before the delivery of the goods, we will conduct strict comprehensive inspections on each batch of products, such as appearance, size, chemical composition, mechanical properties, etc.
2.In order to meet customers' urgent order needs, we promise to deliver goods within three days for spot orders, and within 15 days for production orders.
3.We will confirm all parameters before quoting, so that you can get an accurate quotation.
We have excellent sales men and technicians to solve your problems quickly and in a timely manner.

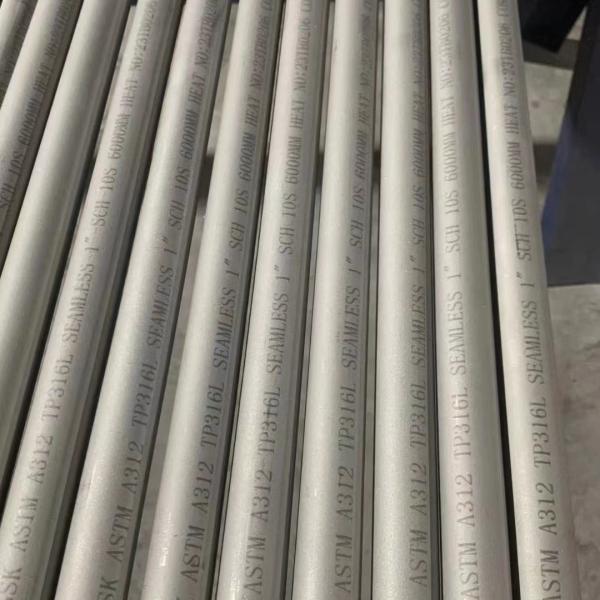

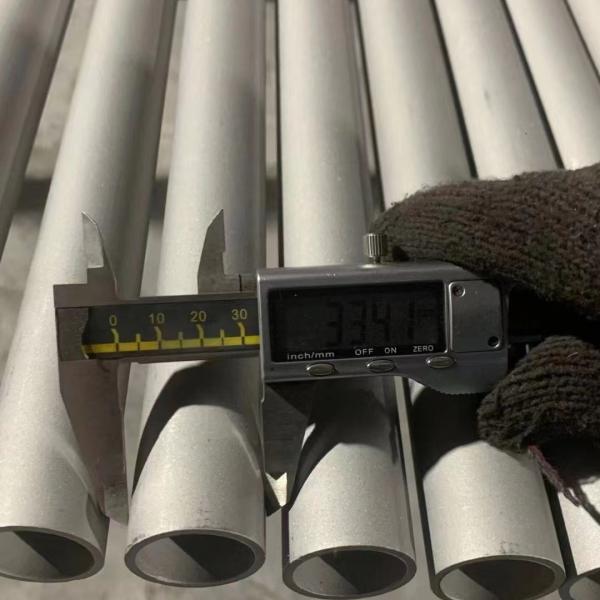

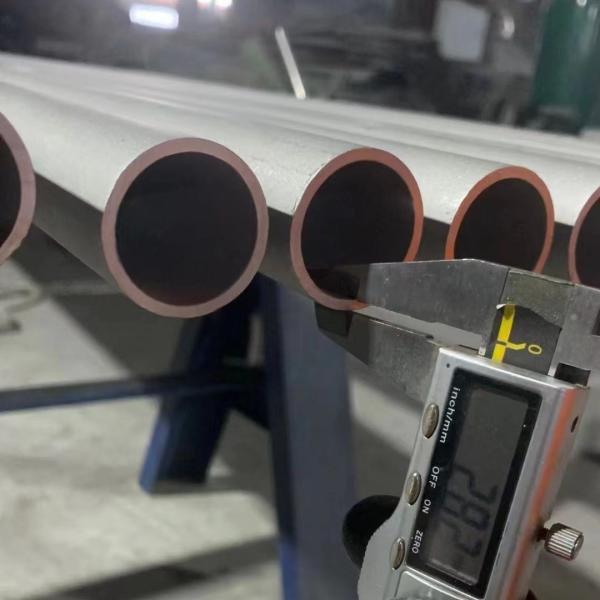

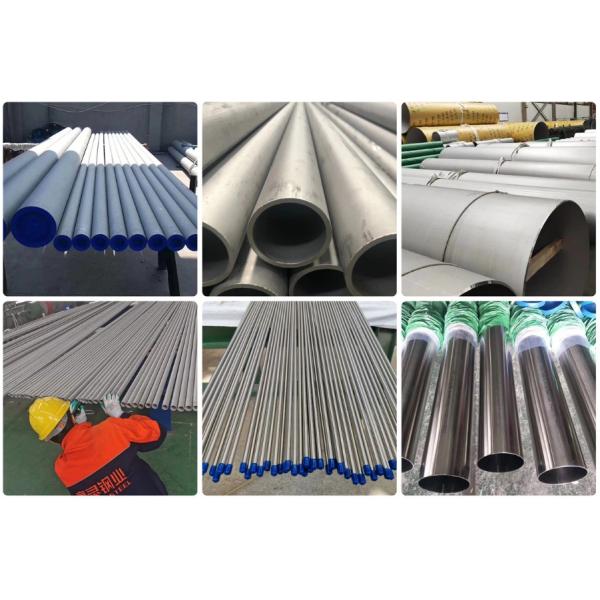

Products Show

Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless PipeHeavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless PipeHeavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless PipeHeavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
