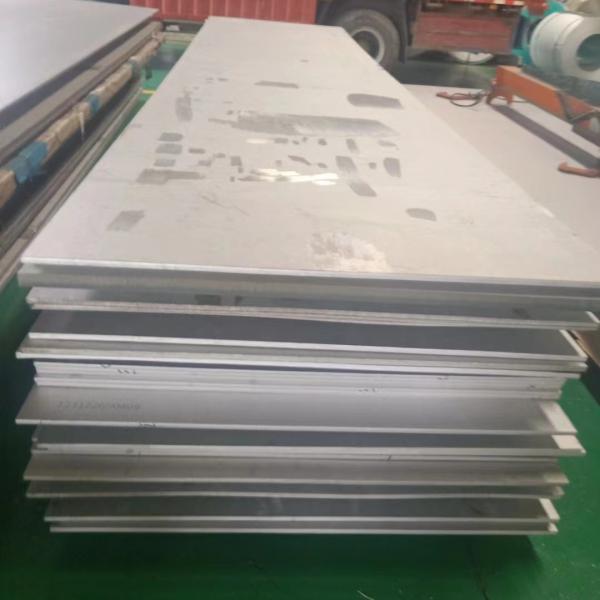

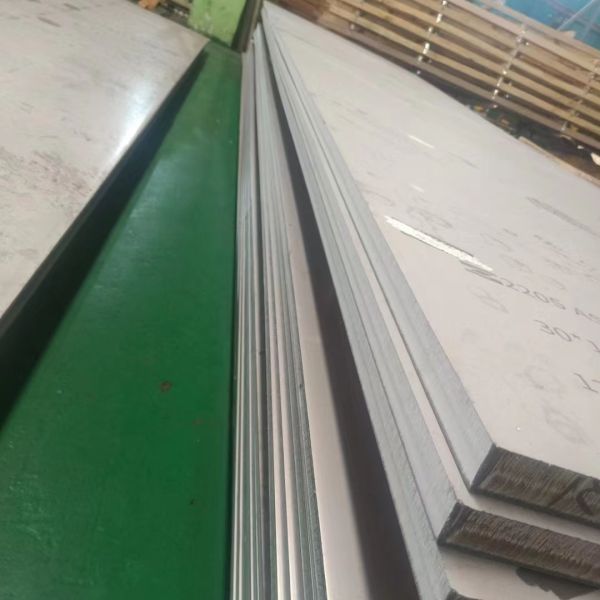

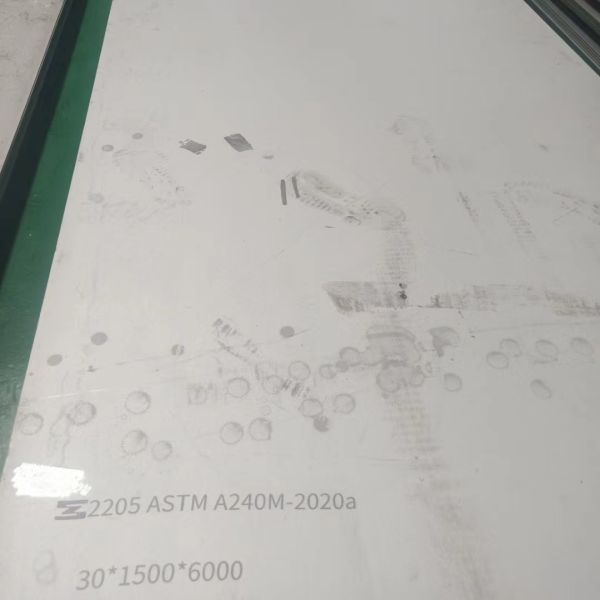

Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Duplex 2205 Stainless Steel Plate Sheets S31803 / S32205 / EN 1.4462 TISCO BAOSTEEL
Specifications
Brand Name :
TISCO
Model Number :
2205
Certification :
ISO
Place of Origin :
China
MOQ :
1 Ton
Price :
2500-3500 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products Name :
Stainless Steel Plate
Grade :
2205
Thickness :
0.6-30.0mm
Standard :
ASTM EN GB
Width :
1000mm 1219mm 1500mm
Surface :
2B NO.1
Brand :
TISCO BAOSTEEL
MOQ :
1 Ton
Description

Duplex 2205 / S31803 / S32205 / EN 1.4462 Stainless Steel Plate & Sheets TISCO BAOSTEEL

Item Duplex 2205 Stainless Steel Plate
Raw Material Stainless steel sheet (hot rolled and cold rolled)
Grades 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, 2205 ,2507,254SMO,253MA.etc.
Thickness 0.6 - 30.0mm
Stock Thickness 0.6mm ,0.8mm,1.0mm,1.2mm,1.5mm.2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm,25mm,30.0mm
Width 1000mm 1219mm 1500mm or cutting any size as your request
Finish 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package Standard export package

Duplex 2205 LIMITING CHEMICAL COMPOSITION, %

Element Percent By Weight
Cr Chromium 22.0 - 23.0%
Ni Nickel 4.5 - 6.5%
Mn Manganese 2.0% max
Si Silicon 1.0% max
P Phosphorous 0.03% max
S Sulfur 0.02% max
C Carbon 0.03% max
N Nitrogen 0.1 - 0.2%
Mo Molybdenum 3.0 - 3.5%
Fe Iron Balance

2.Duplex 2205 Introduction

2205 is a duplex stainless steel with higher alloy content, thus making it superior in corrosion resistance and strength. It has excellent resistance to uniform, pitting, crevice corrosion and chloride stress corrosion cracking. In dilute sulfuric acid contaminated with chloride ions.

3.Duplex 2205 MAJOR SPECIFICATIONS

4.Duplex 2205 PHYSICAL PROPERTIES

Density Magnetic Specific heat Thermal conductivity Thermal expansion rate
(g/cm) (J/g.C) 100C(W/m. 20~100C
(10/C)
7.8 YES 0.45 19 13.7

5.Duplex 2205 MECHANICAL PROPERTIES

Heat Treatment T*S Y*S El Hardness
MPA MPA % HB
1025-1125 800 550 15 ≤310

6.Duplex 2205 APPLICATIONS

Chemical processing industry piping, vessels and heat exchangers; desalination plant seawater piping; oil and gas industry equipment; power plant flue gas desulfurization systems, scrubber systems and absorber towers; and chemical tankers.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a direct factory with production lines and workers. Everything is flexible and there is no need to worry about intermediaries or additional fees for traders.

Q: Which countries do you export to?

A: Our products are mainly exported to Australia, Canada, Britain, the United States, Germany, Thailand, South Korea and so on.

Q: Do you provide samples? Is it free or extra?

A: Because our raw materials are so expensive that we do not supply free samples.

Q: What is your minimum order quantity?

A: In fact, there is no minimum order quantity for our products. But usually we recommend quantities based on acceptable prices.

Q: How about the delivery time?

A: It is order based, usually within 15-30 days after receiving your advance payment.
