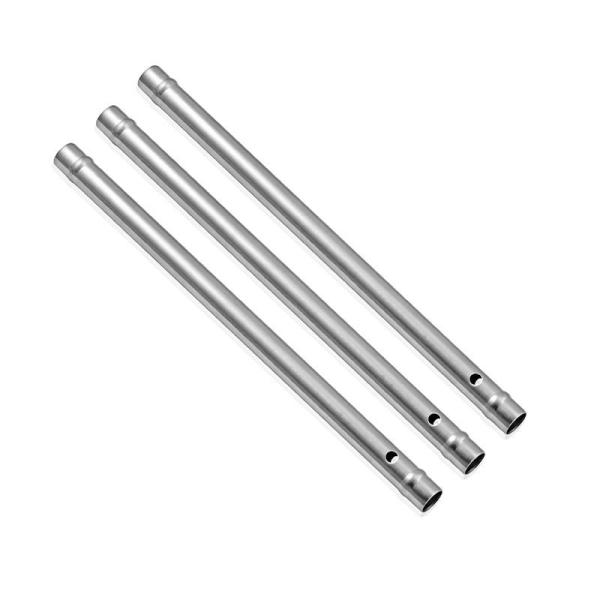

Stainless Steel Instrumentation Tubing ASTM A249 Welded TP316L 6.00 X 1.00MM for Industrial Applications
Stainless Steel Instrumentation Tubing ASTM A249 Welded TP316L 6.00 X 1.00MM for Industrial Applications
Specifications
Brand Name :
SPEZILLA
Model Number :
SP-SMLS-IT-BA
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1PC
Price :
NEGOCIATION
Payment Terms :
L/C, T/T
Supply Ability :
100TONS/MONTH
Delivery Time :
7 DAYS
Packaging Details :
WOODEND BOXED
Product Name :
Stainless Steel Instrumentation Tubing
Type :
Seamless
Production :
TIG Welding
Finish :
Bright Annealed
Size :
1/4'' - 1-1/2''
Materials :
TP304/304L, 316/316L
Inspection :
EN10204 3.1
Certificate :
ISO9001:2015
Material :
Stainless Steel
End Connections :
Male NPT
Surface Finish :
Polished
Corrosion Resistance :
High
Pressure Rate :
Above 10000 Psi
Temperature Range :
-40°F to 250°F
Pipe Finish :
340# Polished
Temperature Rating :
Up to 1500°F
Material Grade :
304/304L/304H(1.4301/1.4306/1.4948)
Quality :
EN10204 3.1
Properties :
Enhanced tensile and yield
Description

Stainless Steel Instrumentation Tubing ASTM A249 Welded TP316L 6.00 X 1.00MM, Bright Annealed

We can supply stainless steel seamless tube and pipe in type 304, 304L and 316, 316L from the stock sizes.

316 Stainless Steel - used for food and surgical stainless steel. Also known as marine grade stainless steel due to its increased resistance to chloride corrosion compared to type 304. 316L is an extra low carbon grade of 316, generally used in stainless steel watches. Its resistance to chloride attack means it is often selected for use in marine atmospheres. 316Ti includes titanium for heat resistance, therefore it is used in flexible chimney liners.

316 stainless steel is a molybdenum - bearing grade. This addition gives the better overall corrosion resistance properties than type 304 and higher creep strength at elevated temperatures.

Type 316L Stainless Steel Instrumentartion Tube (metric)

O/D Wall O/D Wall O/D Wall
(mm) (mm) (mm) (mm) (mm) (mm)
6 0.5 14 1.5 25 1.5
6 1.0 14 2.0 25 2.0
6 1.5 15 1.0 25 2.5
8 1.0 15 1.5 25 3.0
8 1.5 15 2.0 30 1.5
10 1.0 16 1.5 30 2.0
10 1.5 16 2.0 30 3.0
10 2.0 18 1.5 38 3.0
12 1.0 20 1.5 38 4.0
12 1.5 20 2.0
12 2.0 22 1.5

TP316L Stainless Steel Instrumentation Tube ASTM A269

O/D Wall O/D Wall O/D Wall
(in) (swg) (in) (swg) (in) (swg)
1/8 24 1/2 1/8 Inch 1 1/4 18
1/8 22 5/8 20 1 1/4 16
1/8 20 5/8 1818 1 1/4 14
3/61 24 5/8 16 1 1/4 1/8 inch
3/16 22 5/8 14 1 3/8 16
3/16 20 5/8 1/8 inch 1 1/2 16
3/16 18 3/4 20 1 1/2 14
1/4 22 3/4 18 1 1/2 1/4 inch
1/4 20 3/4 16 1 1/2 1/8 inch
1/4 18 3/4 14 1 3/4 16
1/4 16 3/4 12 1 3/4 1/8 inch
5/16 22 3/4 1/8 inch 2 16
5/16 20 3/4 3/16 2 14
5/16 18 7/8 18 2 1/8 inch
5/16 16 7/8 16 2 1/4 inch
3/8 22 7/8 14 2 1/4 16
3/8 20 7/8 1/8 inch 2 1/4 10
3/8 16 1 20 2 1/4 1/4 inch
3/8 14 1 18 2 1/2 16
3/8 1/8 Inch 1 16 2 1/2 1/8 inch
7/16 20 1 14 2 1/2 1/4 inch
1/2 22 1 12 3 16
1/2 20 1 10 3 14
1/2 18 1 3/16 inch 3 10
1/2 16 1 1/4 inch 3 1/4 inch
1/2 14 1 1/8 16 4 1/4 inch

Stainless Steel Instrumentation Tubing ASTM A249 Welded TP316L 6.00 X 1.00MM for Industrial Applications
