ASTM A270 TP316L Polished Stainless Steel Sanitary Tubing For Food / Beverage Industry

Spezilla Tube Co.,Ltd. is one of the leading service providers for ASTM A270 stainless steel sanitary tubings for more than 10 years. We understand the importance of surface finish & Weld Bead Quality in piping system & provide the best solution to end users/OEMs for piping systems. We have set up world class manufacturing facilities for stainless steel sanitary tubings in China under the brand name of Spezilla.

Surface Polish:

Spezilla provide flexible polish selection in our stainless steel sanitary tubing. We offer bright annealed finish, mechanical polish finish ranging from #180~400. Electropolish is also available upon request.

Test Procedures:

Our stainless steel sanitary tubings are carefully sampled and inspected through series of dedicate testing procedures, including material verification, dimension check & surface roughness measurement etc.

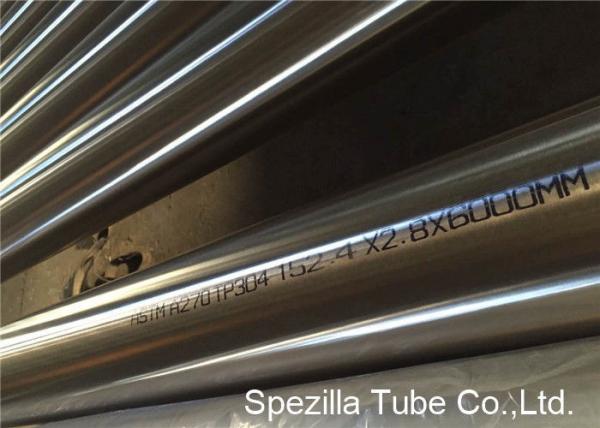

Product Marking:

1. Material Type
2. Dimension
3. Heat Number

Packaging:

All finished stainless steel sanitary tubings will be packed to suit the special conditions for international deliveries.

Documentation:

Our stainless steel sanitary tubings are accompanied by certified material test report 3.1 as per DIN EN 10204 / ASTM A1016. Prematerial certification can be provided upon request.

Spezilla proudly offers:

Cleanability:

Cleanability defines how easily contaminates can be removed from a surface. Our process guarantees stainless steel saniatry tubing correct finish requirements, chemical composition & passivity state, with no major physical and/or metallurgical flaws.

Traceability:

We have full traceability for each of our stainless steel sanitary tubings. Our traceability starts with certifications & incoming inspectionb of raw materials, through in-process quality control, final inspection , marking & packing. Every stainless steel sanitary tubing is inspected for all around quality & meticulous inspection insures that every tube will be of highest quality & in total compliance with its respective standards.

Description:

Typical Applications:

Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.

Quality Assurance:

Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

ASTM A270

ASTM A269

Also individual customer specifications.
