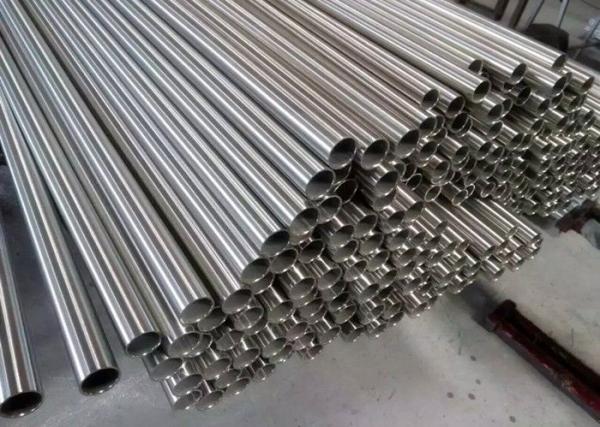

DIN 11850 Material 1.4307 DN50 Sanitary Stainless Steel High Purity Tubing Welded & OD 240G. Polished

Standard : ASTM/ASME A270, DIN 11850

Material : 1.4301, 1.4307, 1.4404

Type : Welded Tube

Processing Method : Welded & Polished

Max Length : 6 m.

Inside and Outside Surface : Polished 320 Grit (Ra ≤ 0.5µm)

Packing : Each in a PVC bag, Bundle with knitted plastic bag

Test : Eddy current test, Hydrostatic test

Application : Beer, Dairy, Beverage, Pharmacy, Food, Cosmetic, Chemical industry

Features:

Spezilla offers SMS Sanitary stainless steel tubing as well sanitary stainless steel high purity tube, meets EN10217/en10357 standards available in stainless steel AISI 316L(EN14404), 304L(EN14307) or 304 from 1” to 4” sizes, following SMS (Swedish Milk Standards). Surface finishing inside (132 μm/ 0,8 μm) Ra or 180 grit, outside (150 grit/ brushed) Roughness. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.

All diameters are available in 19 ft, 8 in - 236 inches (6.0 mts) standard length, cut to size upon request.

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

1. 100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS

2. 100% DIMENSION TESTS & 100% VISUAL EXAMINATION

3. Tension Test, Flaring Tests(For Seamless Tube/Pipe)/Flange Tests(For Welded Tube/Pipe), Hardness Test, Reversed Flattening Test(For Welded Tube/Pipe), Flattening Test (For Seamless Tube/Pipe)

4. 100% Hydrostatic Test/100% Non-Destructive Tests

5. Rougness Tests

Notes : All The Tests And Inspection Need To Provide With Reports According To Standard And Test Results

A. Mtc (Material Test Certification) According To En10204/3.1 Or En 10204/3.2
B. Raw Material Certification
C. All The Test & Inspection Reports As Per Po And Standards
D. Heat Treatment Report
E. Shipping Notification Before Shipment
F. Quality Warranty Letter

Applications:

Spezilla's EN10217-7 DIN 11850 EN 10357 welded stainless steel high purity sanitary tubings are applicable to a wide range of manufacturing industries as following:

1. Food Processing & Beverage

2. Dairy

3. Wine & Brewery

4. Cosmetic

5. Biotechnolgy, Pharmaceutical
