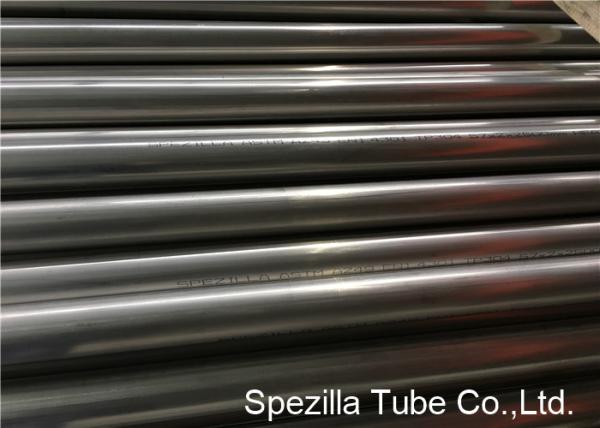

Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269
Specifications
Brand Name :
SPEZILLA
Model Number :
TP304/304L, TP316/316L
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :
PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
Stianless Steel Tube
Application :
Instrumentation, Hydraulic
Materials :
TP304/304L, 316/316L
Size Range :
6.35MM - 50.80MM
W.T. :
0.50MM - 3.05MM
Length :
25M Max.
Finishing :
Annealed & Pickled, Bright Annealed
Shape :
Round
Package :
Wooden Case
Description

Stainless Steel TP316 Hydraulic Tubing , Round Mechanical Tubing ASTM A269

Welded Stainless Steel Tubing Type 304/304L


ASTM A269 thru 1/2″ OD Incl.


ASTM A249/ASME SA249 over 1/2″ OD

Size
OD, Inches
BW
Ga.
Wall
Dec-In.
ID
Weight Lbs/Ft.
1/8
22
0.028
0.069
0.0290
20
0.035
0.055
0.0336
3/16
22
0.028
0.131
0.0478
1/4
25
0.020
0.210
0.0491
22
0.028
0.194
0.0664
21
0.032
0.187
0.0745
20
0.035
0.180
0.0804
18
0.049
0.152
0.1052
16
0.065
0.120
0.1284
5/16
20
0.035
0.242
0.1039
18
0.049
0.214
0.1382
16
0.065
0.182
0.1722
3/8
22
0.028
0.319
0.1038
20
0.035
0.305
0.1271
18
0.049
0.277
0.1706
16
0.065
0.245
0.2152
7/16
18
0.049
0.340
0.2036
1/2
25
0.020
0.460
0.1025
20
0.035
0.430
0.1738
18
0.049
0.402
0.2360
16
0.065
0.370
0.3020
5/8
20
0.035
0.555
0.2205
18
0.049
0.527
0.3014
16
0.065
0.495
0.3888
3/4
20
0.035
0.680
0.2673
18
0.049
0.652
0.3668
16
0.065
0.620
0.4755
14
0.083
0.584
0.5913
7/8
18
0.049
0.777
0.4323
16
0.065
0.745
0.5623
11
0.120
0.635
0.9676
1
20
0.035
0.930
0.3607
18
0.049
0.902
0.4977
16
0.065
0.870
0.6491
14
0.083
0.834
0.8129
11
0.120
0.760
1.1278
