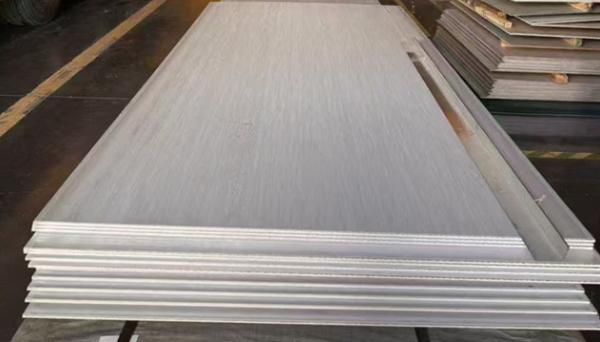

INCONEL600 Nickel Alloy Plate N06600 , 3-50mm Thickness Corrosion Resistant
INCONEL600 Nickel Alloy Plate N06600 , 3-50mm Thickness Corrosion Resistant
Specifications
Brand Name :
Zhonggong Special Metallurgy
Model Number :
INCONEL600 steel plate
Certification :
ISO Certificate
Place of Origin :
China
MOQ :
100KG
Price :
Price is negotiated based on the required specifications and quantity
Payment Terms :
Payment Terms: Mainly T/T.. L/C,D/A,D/P,
Supply Ability :
5000 tons per month
Delivery Time :
5-8 working days, depending on the parameters required for negotiation
Packaging Details :
Standard export packaging, or packaging as required
Brand :
Zhonggong Special Metallurgy
Hot working :
Forging, heat treatment
Cold working :
Strength improvement forming
Melting point is :
1354℃-1413℃
Density :
8.4 g/cm³
Tensile strength at room temperature: :
550MPa
Description

​​INCONEL® 600 (N06600) Nickel Alloy Plate​​
Available in thin plate to heavy gauge (3-50mm) with superior corrosion resistance

​​Composition & Processing:​​

Ni (70-72%), Cr (14-17%), Fe (~10%) + minor Co/Mn/Si

Solid-solution strengthened nickel-chromium-iron alloy

Enhanced via cold working; compatible with all welding/brazing methods

​​Core Properties:​​

  1. ​​High-Temperature Performance​​

    • Melting point: 1354-1413°C
    • Continuous service: ≤1093°C (forms protective oxide layer)
    • Maintains 140MPa yield strength at 700°C

  2. ​​Corrosion Resistance​​

    • Excellent oxidation/corrosion resistance
    • Withstands oxidizing acids (nitric/sulfuric), chlorides & alkalis

  3. ​​Mechanical Performance​​

    • RT tensile: 550MPa | Elongation: 40%
    • Good hot/cold workability & thermal strength (<700°C)

​​Applications:​​
Oxidation-resistant components under low stress at ≤1100°C, including:

Chemical processing equipment

Furnace components

Heat treatment fixtures


​​INCONEL® 600 (N06600) Chemical Composition (% weight)​​


Element Min Max Element Min Max
​​Ni​​ 72.0 - Cu - 0.5
​​Cr​​ 14.0 17.0 Al - -
​​Fe​​ 6.0 10.0 Ti - -
​​C​​ - 0.15 B - -
​​Mn​​ - 1.0 P - -
​​Si​​ - 0.5 S - ​​0.015​
