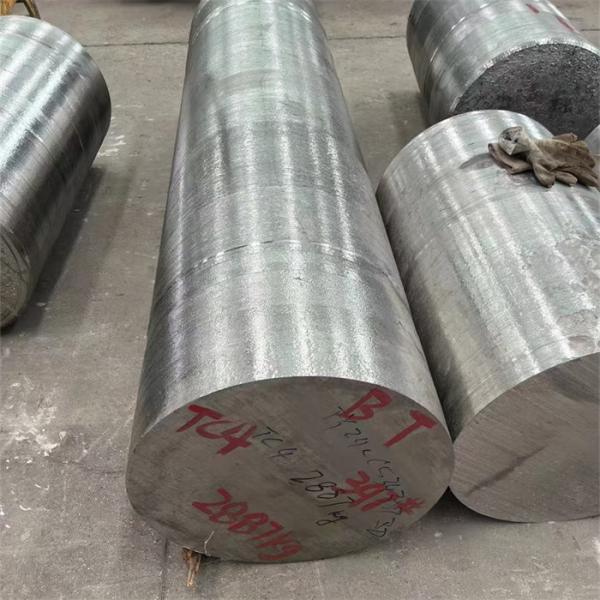

Aerospace Industry TC4 Titanium Alloy Steel Ti-6Al-4v Polished Titanium Rod Density 4.51g/Cm3
Aerospace Industry TC4 Titanium Alloy Steel Ti-6Al-4v Polished Titanium Rod Density 4.51g/Cm3
Aerospace Industry TC4 Titanium Alloy Steel Ti-6Al-4v Polished Titanium Rod Density 4.51g/Cm3
Aerospace Industry TC4 Titanium Alloy Steel Ti-6Al-4v Polished Titanium Rod Density 4.51g/Cm3
Specifications
Brand Name :
Zhonggong Special Metallurgy
Model Number :
TC4 Titanium Alloy
Place of Origin :
China
MOQ :
100KG
Price :
Price is negotiated based on the required specifications and quantity
Payment Terms :
Payment Terms: Mainly T/T.. L/C, D/A, D/P,
Supply Ability :
5000 tons per month
Delivery Time :
5-8 working days, depending on the parameters required for negotiation
Packaging Details :
Standard export packaging, or packaging as required
Certification :
ISO Certificate
Level :
Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr17, Gr23
Name :
Titanium Alloy Ti-6Al-4V
Density :
4.51g/cm3
component :
Ti-6Al-4V
application area :
Aerospace, automotive manufacturing, chemical industry, shipbuilding. etc.
Alloy :
Belonging to (α+β) type titanium alloy
Delivery Status :
shiny
Applications :
Industrial and medical
Description

Export-grade aerospace industry high-quality TC4 titanium alloy round steel polished rod Ti-6Al-4Vdensity4.51g/cm3

The composition of titanium alloy TC4 material is Ti-6Al-4V, which belongs to the (α+β) type titanium alloy and has good comprehensive mechanical properties. Greater than intensity. The strength of TC4 is sb=1.012GPa, the density is g=4.51g/cm3, and the specific strength is sb/g=23.5, while the specific strength of alloy steel is sb/g less than 18. Titanium alloy has low thermal conductivity. The thermal conductivity of titanium alloy is 1/5 of iron and 1/10 of aluminum, and the thermal conductivity of TC4 is l=7.955W/m · K.

The composition of GR5 titanium alloy is Ti-6Al-4V, which belongs to (α + β) type titanium alloy and has good comprehensive mechanical properties. GR5 titanium has the same corrosion resistance and light weight as pure titanium, but better mechanical properties. It is widely used in automobile industry, aviation industry, medical industry, sports industry, etc.

chemical composition: %

Ti Al V Fe C N H O
content margin 5.5~6.8 3.5~4.5 ≤0.30 ≤0.10 ≤0.05 ≤0.015 ≤0.20

Aerospace Industry TC4 Titanium Alloy Steel Ti-6Al-4v Polished Titanium Rod Density 4.51g/Cm3

Item name titanium bar/titanium rod
Standard ASTM B348, AMS 4928 / WL 3.7164 ,ASTM F67,ASTM F136, ISO5832-2, ISO5832-3, AMS 4930,ASTM F1713, MIL-T-9047, ASTM F1295 / ISO 5832-11
Material Gr1,Gr2,Gr3,Gr4,Gr5,Gr7, 6AL4V Eli, GR9, GR12, GR23
TB3, TB6, TC4, TC6, TC11, TC17, TC18
Diameter 2~300mm
Length 1000~6000mm
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
technology hot forging ~ hot rolled ~ machining
Packaging Wooden case or as per client requirement
Application Marine,Airframes,Gas Turbine Engines , Heat exchangers ,Condensers,Desalination plant,Dental alloys,Pulp and paper, Centrifuges, Springs ,Sporting equipment,Automotive ,Seawater piping ,Medical implants ,Electrochemistry,Steam turbines ,Nuclear waste storage,Food and pharmaceutical industry, Oil refining and gas industry, Jewellery, architecture, domestic appliances
Payment terms T/T, L/C, D/A, D/P,
Leadtime Negotiation confirmation

Chemical components of each grade

Grade Fe% C% N% H% O% Al% V% Mo% Ni% Pd% Ti
Gr1 0.2 0.08 0.03 0.015 0.18 -- -- -- -- -- BAL.
Gr2 0.3 0.08 0.03 0.015 0.25 -- -- -- -- -- BAL.
Gr3 0.3 0.08 0.05 0.015 0.35 -- -- -- -- -- BAL.
Gr4 0.3 0.08 0.05 0.015 0.40 -- -- -- -- -- BAL
Gr5 0.30 0.10 0.05 0.015 0.20 5.5 - 6.8 3.5 - 4.5 -- -- -- BAL
Gr7 0.3 0.08 0.03 0.015 0.25 -- -- -- -- 0.12 - 0.25 BAL.
Gr9 0.25 0.08 0.03 0.015 0.15 2.5 - 3.3 2.0 - 3.0 -- --
