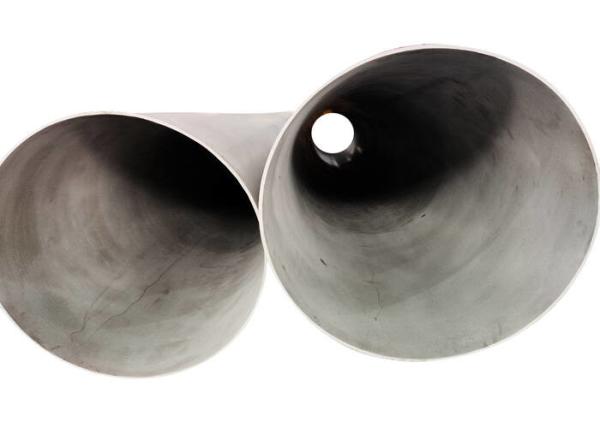

Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm
Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm
Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm
Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm
Specifications
Brand Name :
ZHE HENG
Model Number :
304,304L,304N,316,316L
Certification :
ISO9001,CE
Place of Origin :
Wenzhou
MOQ :
500 kg
Price :
$1000-4200/Ton
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1000+
Delivery Time :
30-45 work days
Packaging Details :
Exportsea worthy packing with each bundle tied and protected, Or as to clients' requirements.
Term Name :
Sanitary Stainless Steel Tubing Welded Thick Wall
Shape :
Rounde Pipe
Technique :
Cold Rolled
Thickness tolerance :
1.2mm，1.5mm，2mm
Length :
1000mm-12000mm
Size :
As per requirement
Welding Line Type :
seamless/welded
Packing :
We can negotiate
Description

Product Description

Overview:

Sanitary grade stainless steel pipe is a kind of steel pipe with strict requirements for material and technology. Sanitary grade stainless steel pipe is processed by online annealing process. The pipe is soft, plastic and extendable, and the length can be cut according to construction requirements. With the addition of internal polishing process, the inner wall of the pipe is smooth and flat, no scaling, low water transmission resistance, which can reduce unnecessary loss.
Sanitary stainless steel pipe is mainly used in dairy products, beer, beverage, pharmaceutical, biological, cosmetics, fine chemical fluid transportation, and even flammable, explosive, toxic, corrosive, temperature, pressure fluid transportation.
Common stainless steel pipe, the inner wall can see more metal scraps, polishing wax and other residues, visible welding traces. The inner wall and outer wall of the sanitary stainless steel pipe are polished, the inner wall is smooth, no obvious residue, no welding traces.
The advantages of sanitary stainless steel tube are difficult to compare with ordinary stainless steel tube.
Its advantages include: strong corrosion resistance, smooth tube, not easy to breed bacteria, small coefficient of thermal expansion, high temperature and high pressure resistance, can be in negative 200 degrees ~400 degrees of temperature between long-term safety work durable, service life can be up to 100 years.

Stainless Steel Seamless Pipe Chemical Component:

Chemical Composition about stainless steel pipe
Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤
201 0.12 0.75 7.00 0.045 0.045 1.00-1.28 13.70-15.70
202 0.15 1 2.25 0.045 0.045 4.07-4.17 14.00-16.00
304 0.08 0.75 2 0.045 0.03 8.00-11.00 18.00-20.00
304L 0.035 0.75 2 0.045 0.03 8.00-13.00 18.00-20.00
309 0.15 0.75 2 0.045 0.03 12.00-15.00 22.00-24.00
310S 0.08 1.5 2 0.045 0.03 19.00-22.00 24.00-26.00
316 0.08 1 2 0.045 0.03 10.00-14.00 16.00-18.00
316L 0.035 0.75 2 0.045 0.03 10.00-15.00 16.00-18.00
321 0.04-0.10 0.75 2 0.045 0.03 9.00-13.00 17.00-20.00
405 0.08 0.75 1 0.045 0.03 0.06 11.5-13.5
409 0.089 1 1 0.045 0.05 0.06 10.50-11.75
410 0.15 0.75 1 0.045 0.03 0.06 11.5-13.5
420 0.16-0.25 1 1 0.04 0.03 0.06 12.00-14.00
430 0.12 0.75 1 0.045 0.03 0.06 16.00-18.00
904L 0.02 1 2 0.045 0.03 23.00-28.00 19.00-23.00

Size table:

WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19)
DNmm DNin φmm SCH5S SCH10S SCH40S STD Sch40 Sch60 Sch80s XS Sch80 Sch120 Sch140 Sch160 XXS
6 1/8 10.3 1.24 1.73 1.73 1.73 2.41 2.41 2.41
8 1/4 13.7 1.65 2.24 2.24 2.24 3.02 3.02 3.02
10 3/8 17.1 1.65 2.31 2.31 2.31 3.2 3.2 3.2
15 1/2 21.3 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.7 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.4 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.2 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.7
40 1 1/2 48.3 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.3 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 76 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.9 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.6 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08
100 4 114.3 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 11.13 13.49 17.12
125 5 141.3 2.77 3.4 6.55 6.55 6.55 9.53 9.53 9.53 12.7 15.88 19.05
150 6 168.3 2.77 3.4 7.11 7.11 7.11 10.97 10.97 10.97 14.27 18.26 21.95
200 8 219.1 2.77 3.76 8.18 8.18 8.18 10.31 12.7 12.7 12.7 18.26 20.62 23.01 22.23
250 10 273 3.4 4.19 9.27 9.27 9.27 12.7 12.7 12.7 15.09 21.44 25.4 28.58 25.4
300 12 323.8 3.96 4.57 9.53 9.53 10.31 14.27 12.7 12.7 17.48 25.4 28.58 33.32 25.4
350 14 355.6 3.96 4.78 9.53 11.13 15.09 12.7 19.05 27.79 31.75 35.71
400 16 406.4 4.19 4.78 9.53 12.7 16.66 12.7 21.44 30.96 36.53 40.49
450 18 457 4.19 4.78 9.53 14.27 19.05 12.7 23.83 34.93 39.67 45.24
500 20 508 4.78 5.54 9.53 15.09 20.62 12.7 26.19 38.1 44.45 50.01
550 22 559 4.78 5.54 9.53 22.23 12.7 28.58 41.28 47.63 53.98
600 24 610 5.54 6.35 9.53 17.48 24.61 12.7 30.96 46.02 52.37 59.54
650 26 660 9.53 12.7
700 28 711 9.53 12.7
750 30 762 6.35 7.92 9.53 12.7
800 32 813 9.53 17.48 12.7
850 34 864 9.53 17.48 12.7
900 36 914 9.53 19.05 12.7
950 38 965 9.53 12.7
1000 40 1016 9.53 12.7
1050 42 1067 9.53 12.7
1100 44 1118 9.53 12.7
1150 46 1168 9.53 12.7
1200 48 1219 9.53 12.7

Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm

Sanitary Stainless Steel Tubing Welded Thick Wall 304 304L 316L 1.5mm

FAQ:

Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
