ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
Specifications
Brand Name :
Zheheng
Model Number :
tee
Certification :
ISO9001
Place of Origin :
Wenzhou,China
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
10-15 days for bulk, 3-5 working days for inventory.
MOQ :
More than 5 pcs
Connection :
Male
Packing :
In wooded cases or pallets,or as for clients' requirements
Application :
Petroleum,chemical,machinery,boiler
Size :
Welded 1/2"-48",DN15-1200 seamless 1/2''-24(DN15-DN600）
Product name :
Stainless steel straight/reducing tees
Material :
Stainless steel
Wall thickless :
SCH5s-SCH160
Tolerance :
±2%,±3%,
Description

Product description

Stainless steel tee is an important element used in piping systems. They are commonly used on branch lines to distribute water or other fluids from one main line to two or more branch lines. Stainless steel tee plays an important role in industry and home, and its main role is to strengthen the connectivity and stability of the pipeline system.

Chemical Composition Of ASME B16.9 TP310S TEES

Cr C≤ Mn≤ Si≤ S≤ P≤ Ni Mo
24.00-26.00 0.25 2.00 1.00 0.03 0.045 19.00-22.00

ASME B16.9 TP310S TEES Mechanical propcrties

Grade Tensile strength (MPa) Elongation (% in 50mm) Yield strength 0.2% proof (MPa) Hardness≤
310s 655 45 310 85

Application

Chemical processing
Petroleum
Pulp/paper
Refining
Textile
Waste treatment, Marine
Utilities/power generation
Industrial equipment
Automotive
Gas compression and distribution industries Pipe Tees are also recommended for industrial plant fluid power systems.

ASME B16.9 TP310S Tee Size Referance

ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry

Nominal Pipe Size (NPS) Outside Diameter at Bevel Center-to-End
Run, C Outlet,
M
[Notes ⑴ and ⑵]
1/2” 21.3 25 25
3/4” 26.7 29 29
1 33.4 38 38
1-1/4” 42.2 48 48
1-1/2” 48.3 57 57
2 60.3 64 64
2-1/2” 73 76 76
3 88.9 86 86
3-1/2” 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273 216 216
12 323.8 254 254
14 355.6 279 279
16 406.4 305 305
18 457 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1 016 749 749
42 1 067 762 711
44 1 118 813 762
46 1 168 851 800
48 1 219 889 838

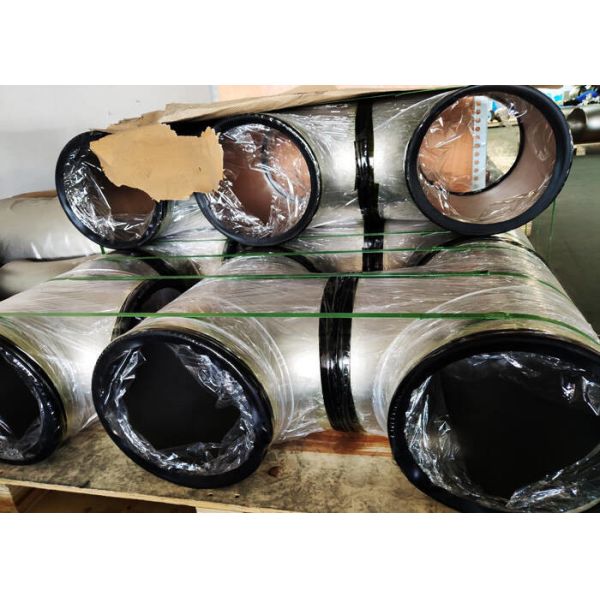

product image

ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
