AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
AISI 420C Stainless Steel Balls G500 G1000 For Anti - Friction Bearings 3.175MM
Specifications
Brand Name :
JN
Model Number :
3.175MM 1/8 Inch
Certification :
SGS ISO
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability :
20 Tons per Month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Material :
420C 420
Product Name :
420C Stainless Steel Ball
Hardness :
HRC50-HRC55
Feature :
Magnetic
Standard :
AISI,DIN,ASTM,JIS,EN
Application :
Bearings
Description

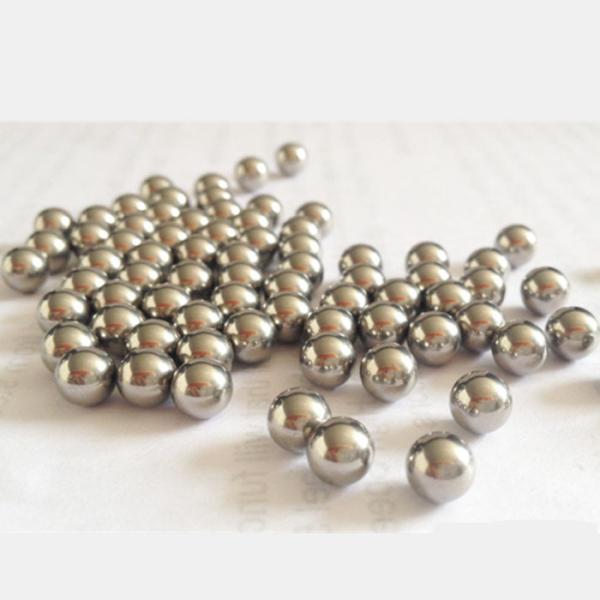

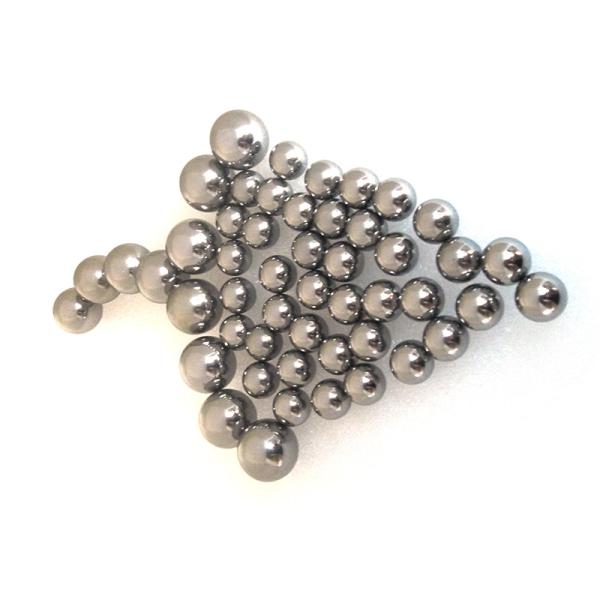

AISI 420C Stainless Steel Balls G500 G1000 For Anti-Friction Bearings 3.175MM

Martensitic hardened stainless steel balls

good hardness, corrosion resistance , wear and abrasion resistance.

Balls are provided in the passivated condition.

Basic Information

Material 420 420C
Size Range 0.5mm - 50.8mm
Grade G10 G16 G28 G100 G200 G500 G1000
Corrosion Resistance Corrosion Resistance

Chemical Composition

Material C Si Cr Mn P S Ni
420 0.15 % Max 1% Max 12%~14% 1% Max 0.040% Max 0.03% Max -

Mechanical Properties

Material Density Hardness Tensile Strength Magnetic
420 7.75 g/cm³ 48~55 HRC 95,000~250,000 psi Magnetic

International Standards

ITA
USA
GER
FRA
UK
RUS
CHN
JAP
X46Cr13
420C
1.4034
Z 34 C 14
-
40 Kh 13
4Cr13
-

Corrosion Resistance

420C: Good corrosion resistance in industrial atmosphere, freshwater, steam, alcool, ammonium,

several oilfield products and organic compounds, dairy products, mild acid environments.

Fairish in foodstuff and alkaline solutions. Fair in salt atmosphere.

It does not resist in contact with sea water and strong acids (even if diluted).

Applications
Special bearings, anti-friction bearings, special pumps, recirculating balls, lighters, pens, automotive seatbelts & components.
