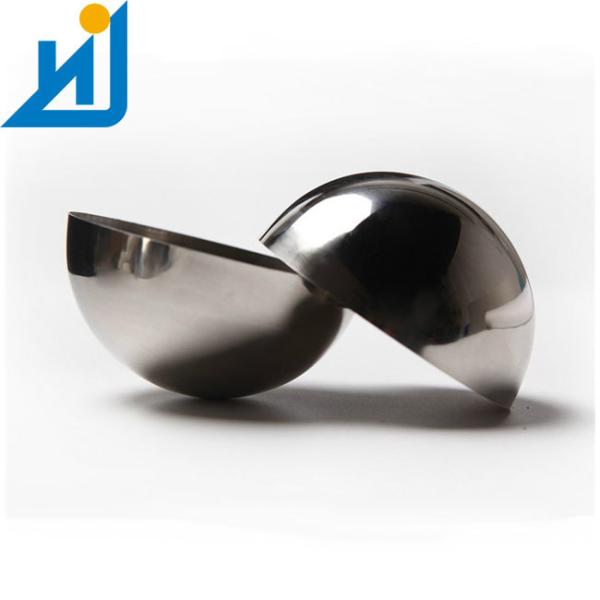

Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
Specifications
Brand Name :
JN
Model Number :
1000mm
Certification :
ISO
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500pcs per day
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Product Name :
Stainless Steel Hemisphere
Material Grade :
304
Surface :
mirror Polished, Bright, matte,Polish ,brushed
Thickness :
1MM 1.5MM
Color :
silver,red,pink,blue,green,black,rainbow,customized,yellow
OES :
YES
Description

1000MM 304 Mirror Stainless Steel Hemisphere Hollow Half Sphere 1MM Thickness

The surface is subjected to multiple polishing procedures, which are round and smooth,

ensuring that the surface is bright as a mirror, which highlights the natural color of stainless steel and is not easy to rust.

All stainless steel, user-friendly design, smooth and bright, high temperature resistance, easy to clean, durable

AISI 201 304 316 316L stainless steel hemisphere

size ranges is from 16mm to 5000mm

Thickness is with half sphere diameter,thinner wall for small hollow half sphere,

thicker wall for bigger hollow half sphere,meanwhile the thicker wall,the more expensive price of hollow half sphere.


To choose the best suitable wall to the hollow half sphere,it's up to the real applications and materials

Mechanical Properties

201 304 316 420C 440C
Density
g/cm3		 7.85 7.95 7.95 7.70 7.75
Hardness
HRC		 25 - 39 10 - 39 10 - 39 52 - 60 57 - 65
Tensile Strength
PSI×103		 100 - 180 72 - 188 80 - 180 250 - 275 275 - 290
Young's Modulus
GPa		 200 200 200 205 210


Chemical Composition

201 304 316 420C 440C
%C 0.150 Max 0.080 Max 0.080 Max 0.43 - 0.50 0.95 - 1.20
%Si 1.00 Max 0.75 Max 1.00 Max 1.00 Max 1.00 Max
%Mn 5.50 - 7.50 2.00 Max 2.00 Max 1.00 Max 1.00 Max
%P 0.060 Max 0.045 Max 0.045 Max 0.040 Max 0.040 Max
%S 0.030 Max 0.030 Max 0.030 Max 0.030 Max 0.030 Max
%Cr 16.00 - 18.00 18.00 - 20.00 16.00 - 18.00 12.50 - 14.50 16.00 - 18.00
%Ni 3.50 - 5.50 8.00 - 10.50 10.00 - 14.00 - -
%N 0.250 Max 0.100 Max - - -
%Mo - - 2.00 - 3.00 - 0.75 Max


International Standards

201 304 316 420C 440C
USA AISI201 AISI304 AISI316 AISI420C AISI440C
JAP SUS201 SUS304 SUS316 - SUS440C
UK 201S01 304S15 316S16 - -
CHN 1Cr17Mn6Ni5N 0Cr18Ni9 0Cr17Ni12Mo2 4Cr13 9Cr18Mo
RUS 14Ch18N4G4L 08KH18N10 08KH16N11M3 40Kh13 95X18
ITA - X5CrNi18-10 X5CrNiMo1712 X46Cr13 X105CrMo17
FRA Z12CMN17-07Az Z7CN18-09 Z6CND17.11 Z34C14 Z100CD17
GER 1.4372 1.4301 1.4401 1.4034 1.4125

Hollow Half Sphere 304 Mirror Polished Stainless Steel 1MM Thickness
