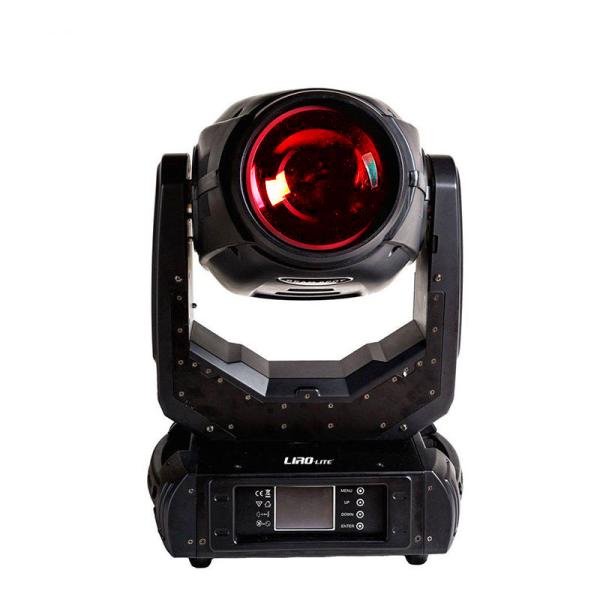

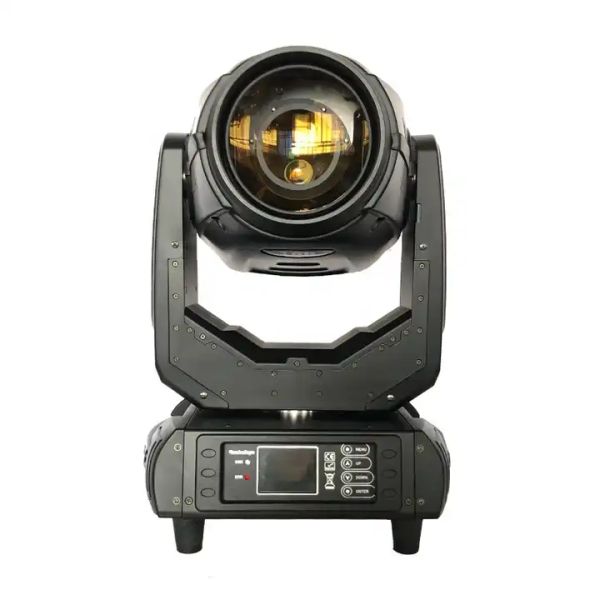

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Specifications
Brand Name :
LIRO or OEM
Model Number :
LR-BSW280
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Paypal , Western Union, MoneyGram
Supply Ability :
1500pcs/month
Delivery Time :
1-20days dependes on the quantity
Packaging Details :
Carton and Flightcase
Wide Voltage :
AC100-240V,50/60Hz
Source :
OSRAM 280w Lamp
Dimmer :
0-100% linear
Spot Beam angle :
5°- 20°
Zoom :
Linear motorized zoom
Channel :
16/24CH
Color :
one color wheel, 14 kinds of color chips in one color wheel
Fixed Gobos :
10 metal gobos & 4 beam reducers
Rotating Gobos :
9 Glass gobos can be indexed and rotated in both directions at different 11 speeds
Prism System :
Rotation 6-facet linear prism + 16-facet circular prism with continuous rotation in both directions
Description

R10 280W DJ Light 10R 280W Sharpy Beam Spot Wash 3in1 Moving Head Light For Night Club

【Specification】

Light Sources: 280W(10R)
Live Fsue:T5 A/250
Neutral Fuse: T5 A/250
Power Voltage: AC 100-240V, 50/60Hz
Max Power Consumption:470W at 230V(I=2.05A,Power factor 0.96)
Typical Power Consumption : 230W at 230V(I=1.8A, Power factor 0.95)
Allow for a deviation of +/-10%
Lamp:
Lamp : Osram 280W
Base Fap2.5
Lamp life : 2000hrs (Stand mode)
3000hrs (Eco mode)
Optical System:
High luminous-efficiency glass reflector
Beam angel : 5°- 20°(spot application)
2.5°- 10°(beam application)
Color Wheel:
one color wheel, 14 kinds of color chips in one color wheel
Static Gob Wheel:
10 metal gobos & 4 beam reducers
Rotation Gob Wheel:
9 Glass gobos can be indexed and rotated in both directions at different 11
speeds
Gobo wheels continuous rotation
Glass gobos: outside diameter=15.9mm, image diameter=12.5mm,
thickness=1.1mm
Prisms:
Rotation 6-facet linear prism with continuous rotation in both directions
Rotation 16-facet circular prism with continuous rotation in both directions
Frost filter :
Separate, variable frost filter
Zoom:
Linear motorized zoom
Strobe:
Strobe effect with variable speed (max.15 flashes/sec)
Control
Graphic touch screen for fixture setting and addressing
Gravitation sensor for auto screen positioning
Battery backup of the touch screen
Readout fixture and lamp usage, receiving DMX values, temperatures. Etc
Built-in analyzer for easy fault finding, error messages
Remotely switching on/off the lamp
Built-in demo sequences
Black-out while head moving, color or gobo changing.
Self-resettable thermos-fuse
DMX Channel: 16/24 Channel
Control Modes: DMX12
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 16 bit, Electric correction
Movement control: tracking and vector
Pan/Tilt-lock mechanism
Temperatures:
Maximum ambient temperature : 45°
Maximum surface temperature : 90°
Minimum Distances:
Min distance from flammable surface :1m
Min distance to lit objects (Stand Mode-280W):10m
Min distance to lit objects (Eco Mode-230W):7.5m
Total Heat Dissipation:
1600 BTU/h (calculated)
469 Wh (calculated)
Wide Voltage AC100-240V,50/60Hz
Source

OSRAM lamp 280W
Source Lifetime 3000 Hours Long-life
Dimmer 0-100% linear
CTO Color temperature adjust linearly
Spot Beam Angle 5°- 20°
Beam Angle 2.5°- 10°
Cooling System Adopt Axial Silent Fan To Enhance Cooling
Channel 16/24CH
Frost Separate, variable frost filter
Zoom Linear motorized zoom
Color

one color wheel, 14 kinds of color chips in one color wheel
Fixed Gobos 10 metal gobos & 4 beam reducers
Rotating gobos 9 Glass gobos can be indexed and rotated in both directions at different 11 speeds
Prism System

Rotation 6-facet linear prism + 16-facet circular prism with continuous rotation in both directions
Weight 21KG

【Packing list】

  • 1 × BSW moving head light
  • 2 × Omega bracket or Folding clamp (the default is Omega bracket,please contact us if need the folding clamp)
  • 1 × Power cable
  • 1 × DMX cable
  • 1 × Safety rope
  • 1 × User manual

【Product Description】

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club
Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club

【Suitable for various scenes, stage performances, bars, wedding commercials, parties】


Sharpy Light Beam 10R 280W Moving Head Spot 3in1 For Night Club


【Packing method】

1.Packing method (the default package is carton,please contact us if need the flightcase)

2.Shipping Method: By Air, sea, or Express(DHL, UPS, FedEx, etc) as request.

3.Payment Methods: T/T, Paypal, Western Union, MoneyGram,Credit Card,Cash
