Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness
Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness
Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness
Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness
Specifications
Brand Name :
HJY
Model Number :
P5
Certification :
CE FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negoniate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
15-20days after receiving deposit
Packaging Details :
Wooden case or flight case
Pixel density :
40000dots/sqm
Brightness :
5500cd/sqm
LED type :
SMD2525
Cabinet size :
640*640mm
Cabinet resolution :
128*128dots
Certificates :
CE FCC
Control system :
LINSN/NOVA
Input voltage :
220/110v
Best viewing distance :
5m
Warranty :
2 years
Description

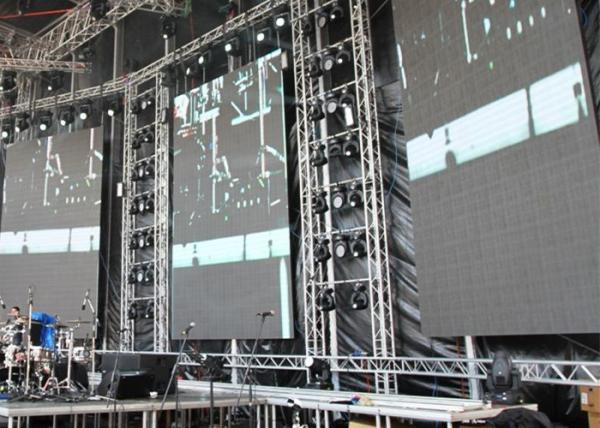

Outdoor large concert Stage Rental LED Display P5 high brightness led

Advance of Die-casting rental outdoor led screen

1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

Pixel Information Pixel Pitch 5mm
Pixel Density 40000 Pixels/m2
Pixel Configuration 1R1G1B
LED Wavelength Red: 615 nm - 635 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size(mm) 320 (Width) × 160 (Height)
Module Resolution 64(Width) × 32 (Height)
Cabinet Cabinet Size(mm) 640 (Width) ×640 (Height)
Cabinet Resolution 128 (Width) × 128 (Height)
Total QYT Module Per Cabinet 2 (Width) ×4 (Height)
Cabinet Weight 9kgs/pc
Cabinet Material Die-casting Aluminum LED Display
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 1000 Watt/m2
Avg. Power Consumption 600 Watt/m2
Brightness ≥5500cd/m2
Brightness Uniformity Luminance Discrepancy < 5%
Best Viewing Angle Horizontal:120°,Vertical:120°
Viewing Distance 5 - 15 meters
Ambint Conditions Temperature Range Working:-20deg. to +60deg
Operating Humidity 10%90%RH
Ingression Protection Grade IP65
Processing Scanning Mode 1/8 scanning
Refresh Frequency 1500Hz, maximum
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN
Controller Synchronization

Features of P5 led module:

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4. Ultra high brightness,low attenuation,high reliability and weather ability.

5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.

Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness

Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness

Concert Event Outdoor Video Screen Rental , P5 LED Panels For Stage High Brightness
