10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
Specifications
Place of Origin :
China
Model Number :
RS10KW
Brand Name :
SSTH
Price :
CN¥7,894.70/pieces 1-99 pieces
Input Voltage :
48V/96V
Output Voltage :
110V/220V
Output Current :
75A /50A
Output Frequency :
50/60Hz
Output Type :
Single
Size :
584*425*180mm
Type :
DC/AC Inverters
Inverter Efficiency :
≥90%
Weight :
67KG, 67KG
Product name :
10000W Home Solar Inverter
Rated power :
10000W
Inverter type :
On-grid Solar Power Inverter
Waveform :
Pure Sine Waver
Inverter Efficiency: :
90%
Application :
Solar Power System Home
Warranty :
12 Months, 12 Months
Certificate :
CE ROSH
Description
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
Model
RS2000
RS3000
RS4000
RS5000
RS6000
Rated Power
2000W
3000W
4000W
5000W
6000W
INPUT
Voltage
100/110/120Vac, 220/230/240Vac
Selectable Voltage Rang
Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances)
Narrow Rang: 82vac -138vac, 165vac - 275vac (For Peronal Computer)
Frequency Range
40-70Hz(50Hz/60Hz)
OUTPUT
AC Voltage Regulation
Vout (±10V)
Surge Power
4000VA
9000VA
12000VA
15000VA
18000VA
Efficiency (Peak)
88%
91%
Transfer Time
＜20ms
＜10ms
Waveform
Pure Sine Wave
BATTERY
Battery Voltage
24V
24V
48V
24V
48V
24V
48V
24V
48V
Charge Current
35A
50A
25A
70A
35A
75A
45A
75A
50A
Fast Charge Voltage
28.6VDC
28.6 VDC
57.2 VDC
28.6 VDC
57.2VDC
28.6 VDC
57.2 VDC
28.6 VDC
57.2 VDC
Float Charge Voltage
27.4VDC
27.4
VDC
54.8
VDC
27.4 VDC
54.8VDC
27.4 VDC
54.8 VDC
27.4 VDC
54.8 VDC
Over Charge Voltage
33.0VDC
33.0 VDC
66.0
VDC
33.0 VDC
66.0 VDC
33.0 VDC
66.0 VDC
33.0 VDC
66.0 VDC
Battery low Voltage
Alarm
21.0VDC
21.0
VDC
42.0
VDC
21.0 VDC
42.0VDC
21.0 VDC
42.0 VDC
21.0 VDC
42.0 VDC
Battery low Voltage Shutdown
20.0VDC
20.0
VDC
40.0
VDC
20.0
VDC
40.0
VDC
20.0
VDC
40.0
VDC
20.0
VDC
40.0
VDC
Protection
Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit
Operating environment temperature
55℃
Cooling
Intelligent Fan
Display
Color LCD
Specification Setting
By LCD or Position Machine:
Charging Current, Battery Type, Input Voltage, Output Frequency, Wide and Narrow rang of AC Input voltage, Power-Saver Model,
AC Priority or Battery Priority
PHYSICAL
Dimension
D*W*Hmm
390*222*178
500*258*190
574*345*197
574*345*197
574*345*197
Net Weight (kgs)
15
25.2
24.6
34.4
33.8
37.9
38.2
41.6
40.5
ENVIRONMENT
Humidity
5~95% Relative Humidity (Non-condensing)
Operating Temperature
-10℃ to 50℃
Storage Temperature
-15℃ to 60℃
Advantages and Features:
Pure sine wave inverter Output power factor
Selectable high-power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/Battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use of lithium batteries
Wave-by-wave phase detection, more stable and reliable
RS232 communication port and remote control panel optional
Dry contact communication port is available, pls confirm with the supplier
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
RS series is a pure sine wave power frequency inverter that converts direct current into alternating current. The equipment is safe and efficient, energy saving and environmental protection, fully functional, easy to install, simple to operate, intelligent and friendly, etc.
DC-AC inverter module adopts full digital intelligent design and outputs pure sine wave. Suitable for household appliances, power tools, industrial equipment, electronic audio and video and other AC load.
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter

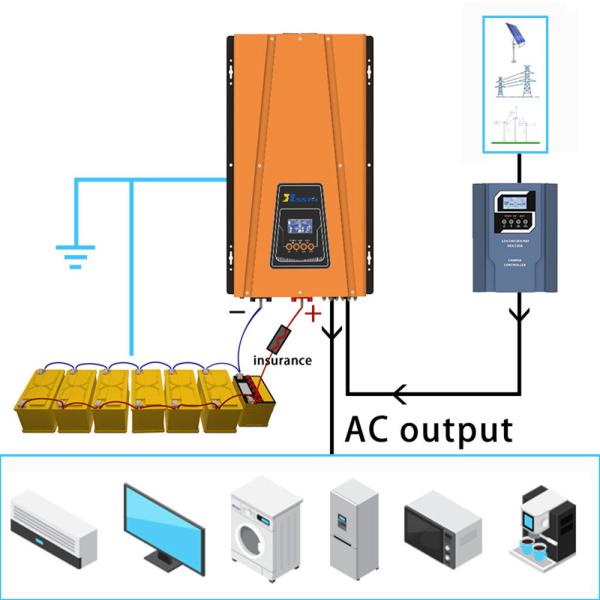

This is the common application of inverters, it also includes the following equipment can constitute a complete operating system • Generator or Utility. • PV modules Inverter can be applied to most home and office appliances, such as refrigerators, air conditioners, notebooks; Consult us for additional system architectures based on your requirements
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
More than 30,000 customers are attracted by our company, because we strictly control the installation and inspection of electrical products before leaving the factory and the test before delivery, so that we can do the best we can, so that our customers can use our products at ease)
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
We have passed Rohs certification, CE certification, BSCI, KC, FCC,Alibaba Vertified certification and design patent and other international certifications. Strictly control materials, processing, assembly, debugging, testing, packaging, transportation and other links to ensure the performance and quality of electrical products)
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
10000W Power Inverter DC To AC Toroidale 48v 10KW Power Inverter
···········································································································································································
Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it
worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the
shipping cost was.
