4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
Specifications
Place of Origin :
Guangdong, China
Model Number :
VICTOR NM-ECO-4.2KW PLUS
Brand Name :
SZSSTH
Price :
CN¥1,558.16/pieces 1-499 pieces
Input Voltage :
24V
Output Voltage :
220V 230V
Output Current :
Load
Output Frequency :
50Hz/60Hz
Output Type :
Single
Size :
420*350*110mm
Type :
DC/AC Inverters
Inverter Efficiency :
98%
Weight :
8kg
Product name :
Hybrid Solar Inverter 4.2Kw
Inverter type :
Hybrid Off Grid Solar Inverter
Controller type :
MPPT Solar Controller
Communication :
WiFi/GPRS(Optional)
Battery type :
Lead Acid \ Lithium \ Gel
Protection :
Overload
Rated power :
4200VA
AC Voltage :
230VAC
Display :
LCD Display
Max PV voltage :
500V
Certificate :
CE, ROHS
Warranty :
1 year
Description

4200w 24v Hybrid Solar Inverter Off Grid On Grid Pure Sine Wave Solar Inverters With Mppt for and Versatile Power Supply

Products Description
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt

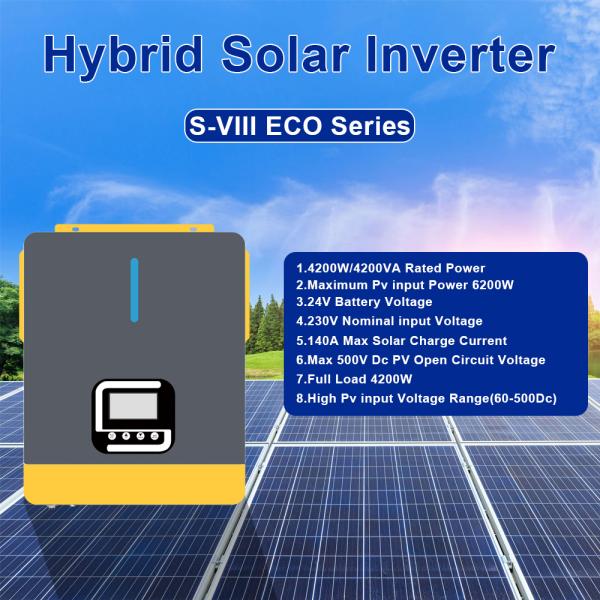

Product Features
1.Pure sine wave solar inverter(on/off Grid)
2.Output power factor 1.0
3.WIF&GPRS available for lOS and Android
4.Inverter can run without battery
5.One-key restoration to factory Settings
6.Built-in Lithium battery automatic activation
7.Dual communication ports for Battery communicationand Wifi communication
8.Built-in 140A(for 4.2KW)/120A(for 3.6KW16.2KW)MPPT Solar charge:max 6200W(for 3.6KW/4.2KW)max 6500W (for 6.2KW)
9.High PV input voltage range(60~500VDC)
10.Built-in anti-dust kit for harsh environment
11.Smart battery charge design to optimize battery life
12.Dual output
MODEL
VICTOR NM-ECO-3.6KWPLUS
VICTOR NM-ECO-4.2KWPLUS
VICTOR NM-ECO-6.2KWPLUS
Phase
1-phase
Maximum PV Input Powe
6200W
6200W
6500W
Rated Output Power
3500W/3600VA
4200W/4200VA
6200W/6200VA
Maximum Solar Char gig Current
120A
140A
120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage /Initial Feeding Voltage
60VDC/90VDC
MPPT Voltage Range
60-450VDC
Maximum Input Current
1/18A
1/22A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230240VAC
Output Voltage Range
195.5-253VAC
Nominal Output Curren
15.7A
18.2A
27.0A
Power Factor
>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
98%
TWO LOAD OUTPUT POWER
Full Load
360DW
42DDW
6200W
Maxium Main Load
350DW
4200W
6200W
Maxium Second Load(battery mode)
1200W
1400W
2067W
Maxium Load Cut Off Voltage
26VDC
26VDC
52VDC
Maxium Load Return Voltage
27VDC
27VDC
54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Volta ga Range
90-280VACor 170-280VAC
Frequency Range
49-51±1HZ
Maximum AC Input Current
30A
30A
40A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
MPPT Voltage Range
60-450VDC
Maximum Input Current
1/18A
1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Oul put Waveform
Pure sine wave
Eficiency (DC to AC)
94%
BATTERY&CHARGER
Nominal DC Voll age
24VDC
48VDC
Maximum Solar Charging Current
120A
140A
120A
Maximum AC Charging Current
100A
100A
100A
Maximum Solar+AC Charging Current
120A
140A
120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage /initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
60-450VDC
Maximum Input Curren
1/18A
1/22A
GRID OUTPUT(AC)
Nominal Output Voltage
220(230/240VAC
Output Molt age Range
195.5-253VAC
15.7A
18.2A
27.0A
AC INPUT
AC Start-up Voltage /Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VACor 170-280VAC
Maximum AC lnput Current
30A
30A
40A
Maximum AC Charging Current
100A
GENERAL
PHYSICAL

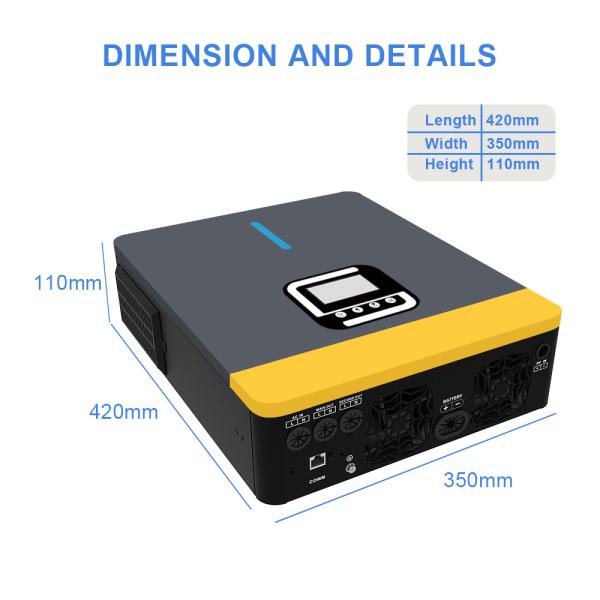

Dimension, D*W*H(mm)
420*350*110
Cartoon Dimension, D“W*H(mm)
500*416*180
Net Weight(kgs)
8
8
8.9
Gross Weight(kgs]
9
9
10
INTER ACE
Communication Port
RS 232/R 8485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non~condensing)
Cpa rating Temperature
STANDARD
Compliance Safety
CE
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
Recommend Products
Company Profile
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
Customers' feedback
4200w 24v Hybrid Solar Inverter Off Grid On Grid Solar Inverter With Mppt
FAQ
1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires influent English.

OEM and ODM available:

1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products,we can help you to design and put it into production

Before and After-sale service:

1)All products will have been quality checked strictly in test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within warranty period

Payment term:

T/T, Western Union, Paypal,MoneyGram, L/C are available.

Shipping and delivery:

1)We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS and so on.You can also choose your own shipping forwarder.
2)normal products need About 15-25 days,customized products need about 30-45 days.
