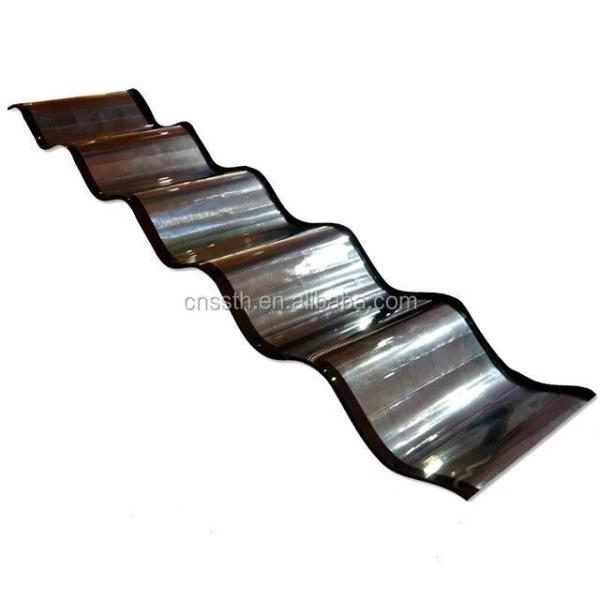

Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Specifications
Brand Name :
SZSSTH
Model Number :
CIGS 30W
Place of Origin :
Guangdong, China
Packaging Details :
Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling
Wooden pallet or according to customer's requests
Supply Ability :
50000 Watt/Watts per Day
MOQ :
1000 pieces
Price :
CN¥402.35/pieces 1000-9999 pieces
Cell size :
125mmx125mm
Panel Dimensions :
70*50 cm
Panel Efficiency :
21%
Product name :
rollable solar module 12V 30W Flex CIGS panel
chip type :
CIGS
Power :
30W
Short-circuit current :
4.45A
open-circuit voltage :
10.16
Current at PMPP :
3.87A
Voltage at PMPP :
7.79V
Loading grade :
2400Pa
Waterproof grade :
IP67
Hail-proof grade :
Level 4
Port :
Yantian/Shekou
Description
Products Description
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
New design high efficiency rollable solar module 12V 30W Flex CIGS panel
Solar panel power
30W
Chip type
CIGS
Length
700mm
Width
500mm
arch height
35mm
Color
Black
Junction box
68*68*19.7(mm) IP67
Cable type
2.5mm solar cable 450mm
Cable connector
PV connector
Working temperature
-40 to 85 centigrade
Features: three curved shapes, beautiful shapes

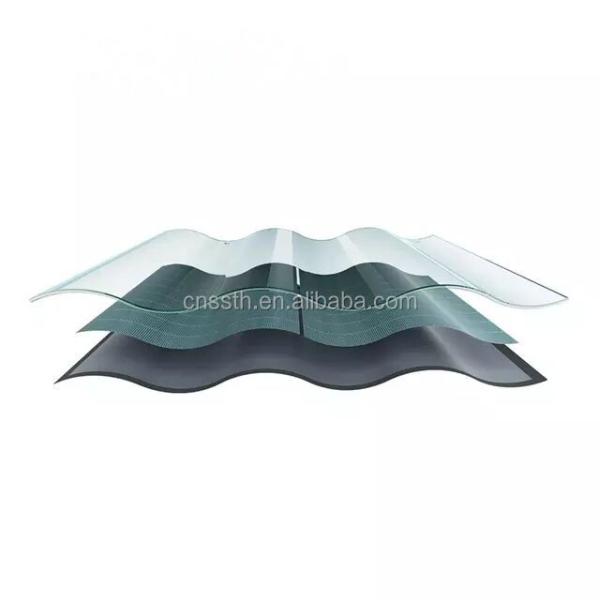

Structure: Laminated double tempered curved glass
Auxiliary materials: edge protection and EPDM tape
Square meter content: 3.44 pieces/㎡
Power: 30 watts, square meter power: 103 watts
Weight: 6.5Kg, Square meter weight: 22.1Kg

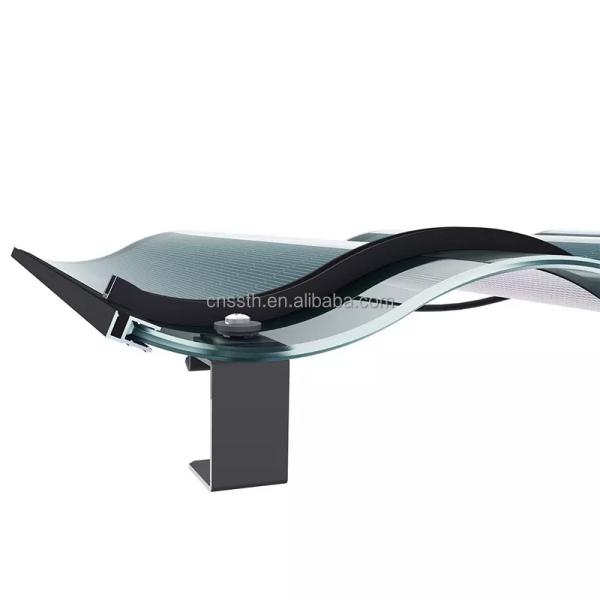

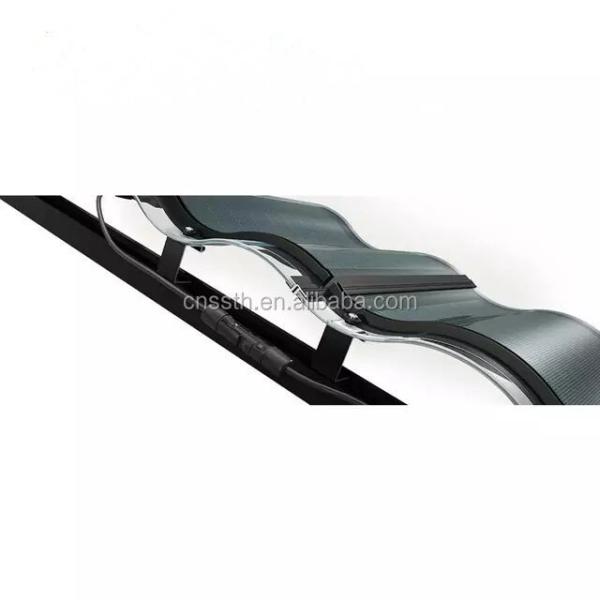

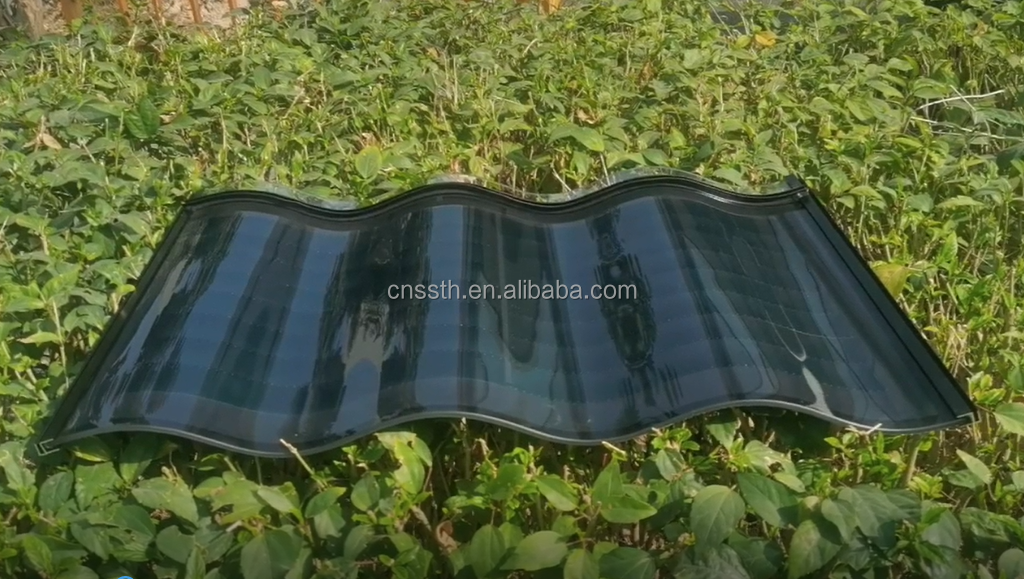

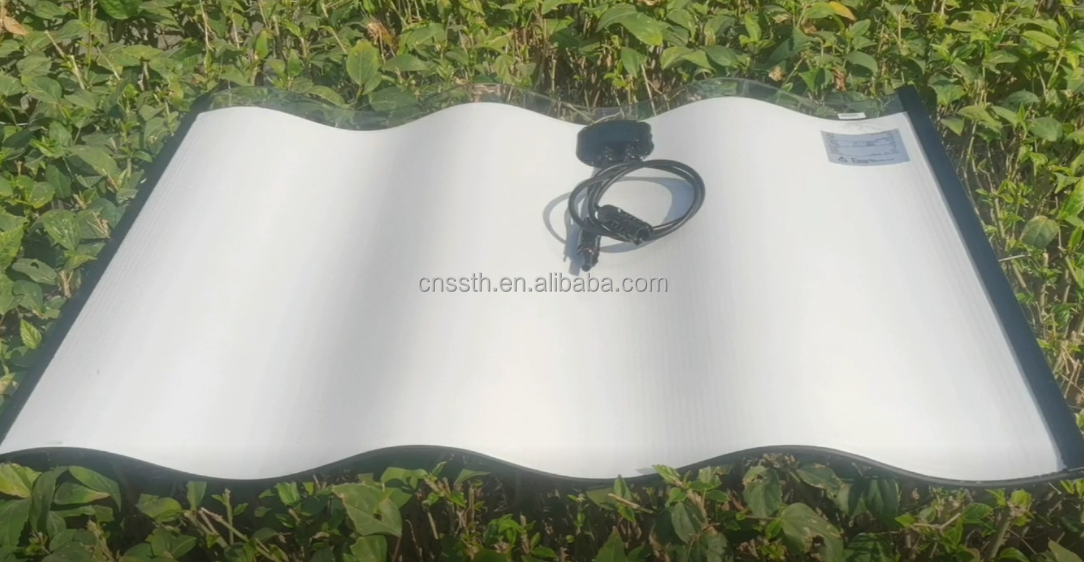

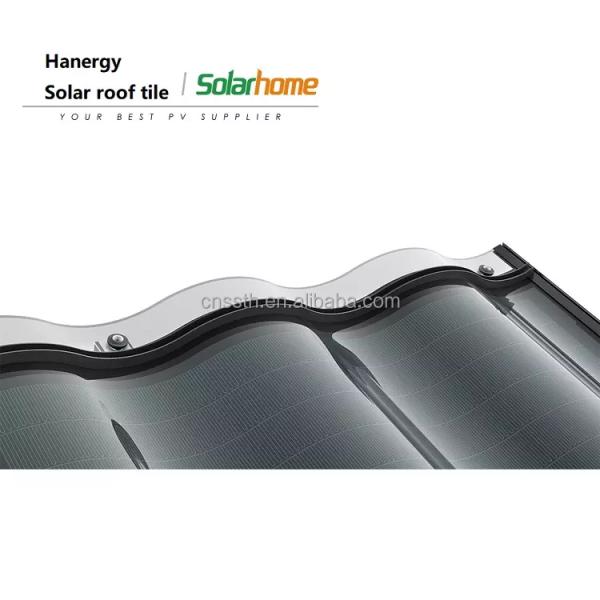

Details Images
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W

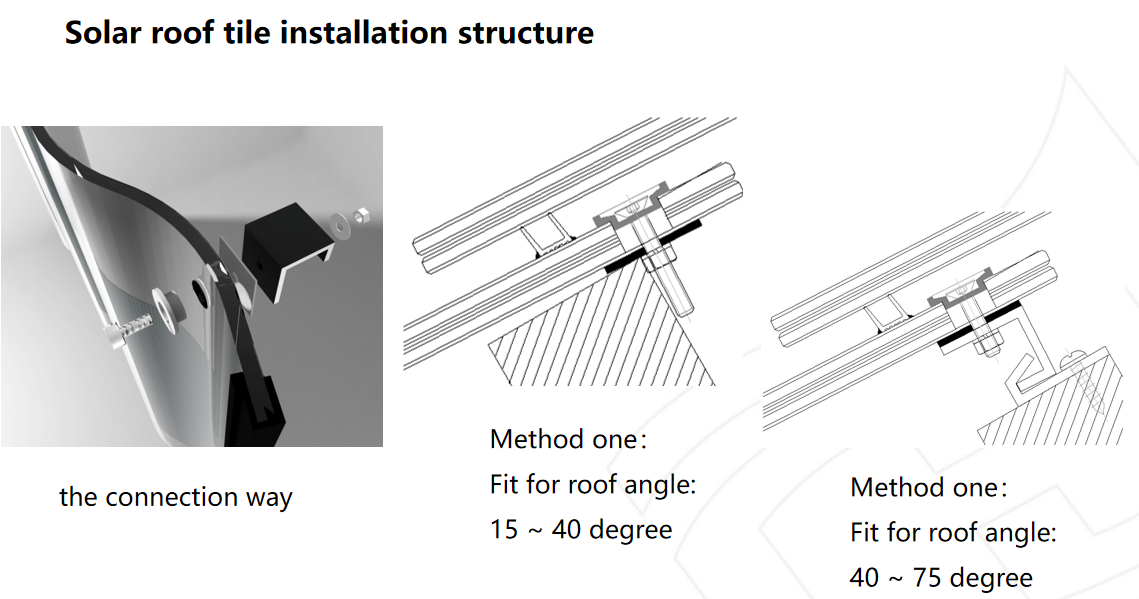

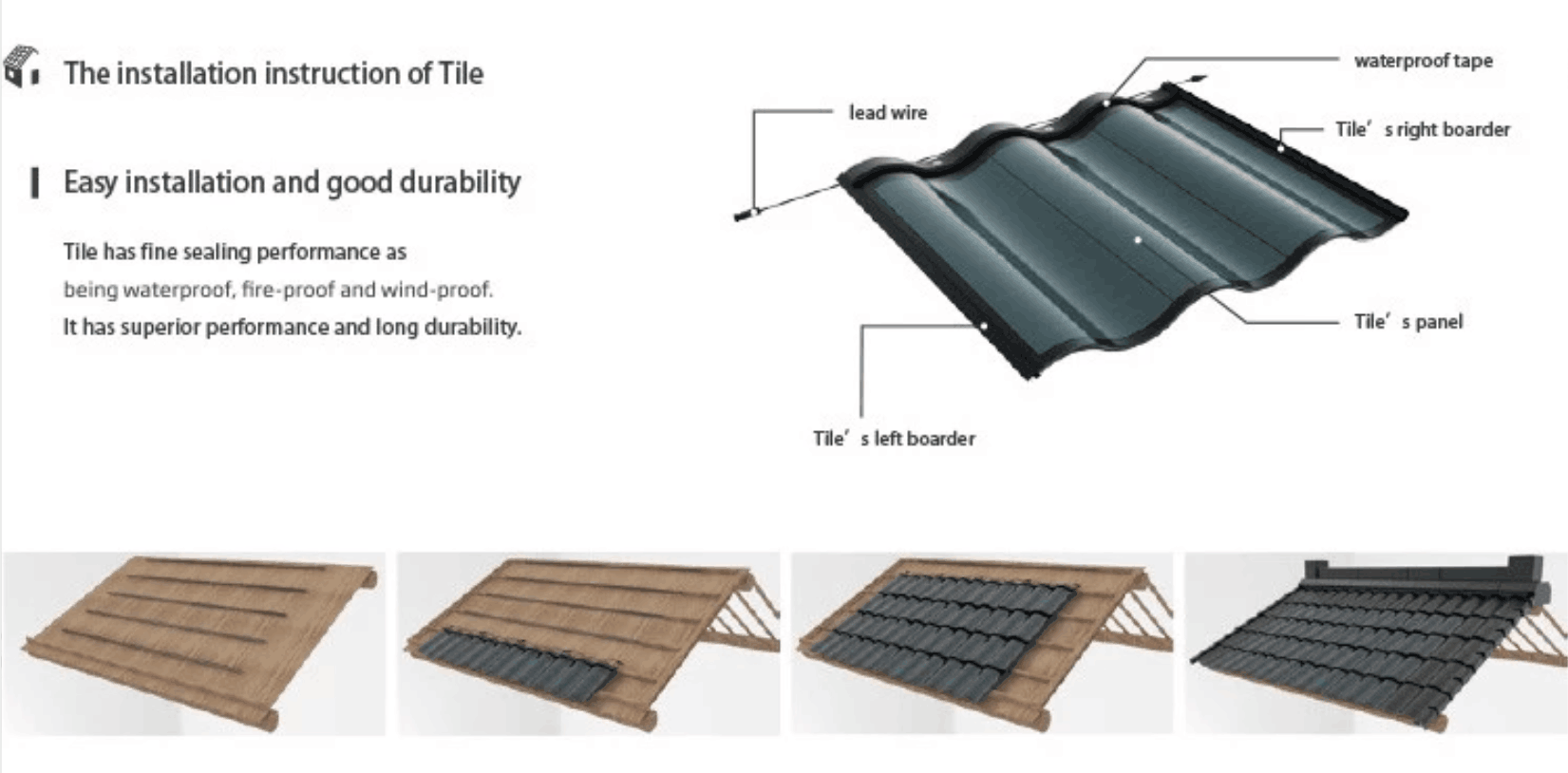

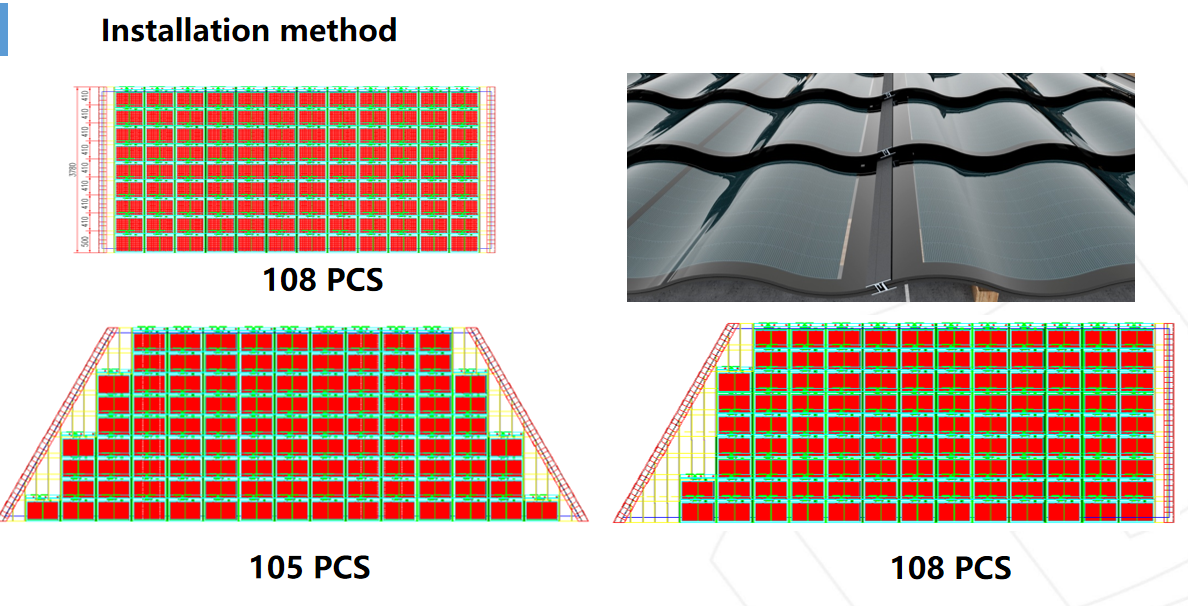

Installation Instructions
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W

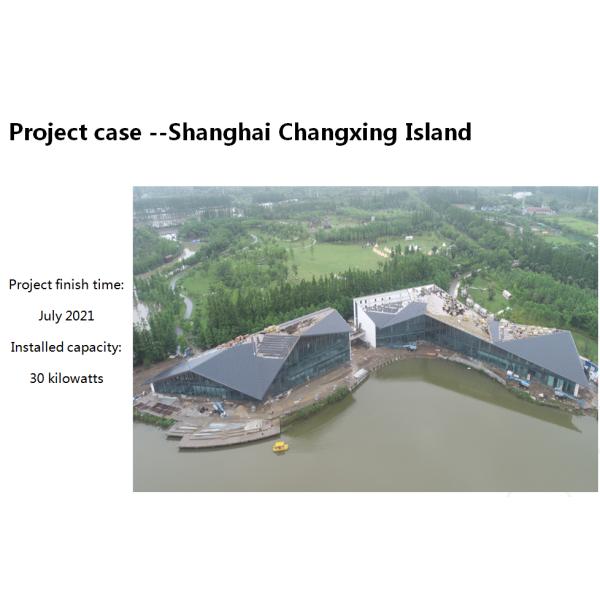

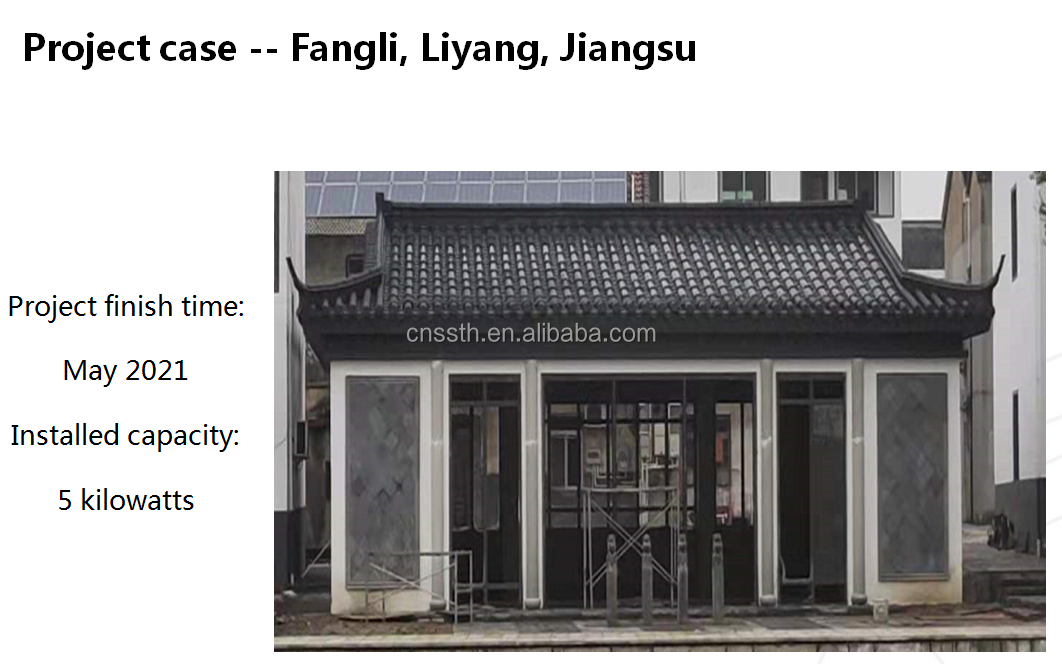

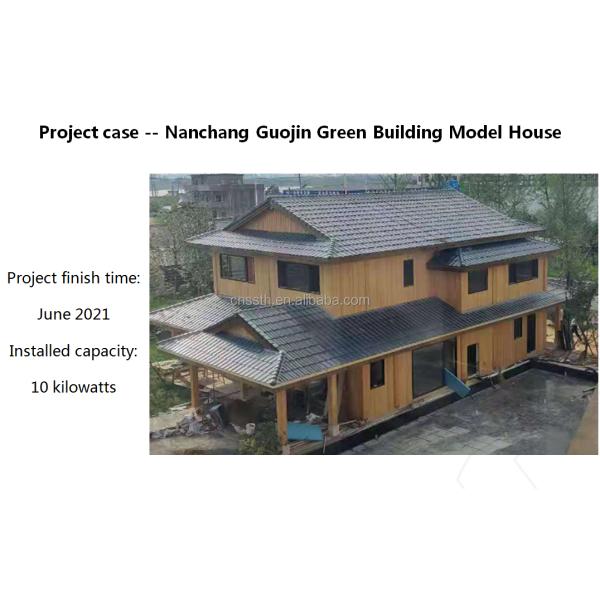

Project case
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Company Profile
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
Certifications
Flex CIGS Panel Rollable Solar Module Pv Roof Tiles Solar Cell Roof Tiles 12V 30W
