Specifications
Brand Name :
SSTH
Model Number :
RS-12000
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$110-332/pieces 1-99 pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
carton
Input Voltage :
12V/24V/48V
Output Voltage :
110V/220V
Output Current :
70A/35A
Output Frequency :
50Hz/60Hz
Output Type :
Single, Pure sine wave
Size :
390cm*222cm*178cm
Type :
DC/AC Inverters
Inverter Efficiency :
90%
Weight :
15kg
Product name :
Pure Sine Wave 2000W Inverter
Model :
SSTH-RS2000W
Certificate :
CE Rohs
Port :
shekou
Description

1KW-6KW Hybrid Solar Inverter | Professional-Grade Power Solution for Residential & Commercial Use

Manufacturer: Shenzhen Sheng Shi Tian He Electronic Technology Co., Ltd. (SSTH) — an 15-year multispecialty supplier specializing in power inverters, solar hybrid systems, and battery controllers.

Industry-Leading Solar Inverter Technology

Our 3KW-6KW Hybrid Solar Inverter series represents the pinnacle of off-grid and grid-tied power conversion, combining military-grade components with intelligent energy management. Designed for high efficiency and reliability, these inverters are ideal for homeowners, businesses, and industrial applications seeking uninterrupted power supply and maximum solar energy utilization.


Key Product Advantages

1. High-Efficiency Power Conversion

98.2% peak efficiency (TÜV-certified) ensures minimal energy loss
9000W surge power (for 6KW model) for starting heavy loads like air conditioners and pumps
Pure sine wave output (<1.5% THD) guarantees safe operation for medical equipment, servers, and sensitive electronics

2. Smart Hybrid Operation

Four working modes: Solar priority, battery priority, grid-tied, and backup generator support
20ms grid-tie response time (5x faster than industry standards)
Parallel operation capability (expandable up to 30KW for large-scale systems)

3. Advanced Battery Compatibility

• Supports lithium (LiFePO4), lead-acid, gel, and sodium-ion batteries
Built-in Tesla Powerwall communication protocol for seamless integration
AI-powered battery management extends lifespan by up to 200%

About the Company

SSTH (Shenzhen Sheng Shi Tian He Electronic Technology Co., Ltd.) has built its reputation over 8 years as a trusted multispecialty manufacturer, offering a diverse lineup including inverters, solar hybrid solutions, lithium-based energy storage, and solar charge controllers. The company emphasizes OEM customization, strong quality control, and timely delivery — all critical for global B2B customers.

Quick Specs Summary

Model RS2000 RS3000 RS4000 RS5000 RS6000
Rated Power 2000W 3000W 4000W 5000W 6000W
INPUT
Voltage 100/110/120Vac, 220/230/240Vac
Selectable Voltage Range Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances)
Narrow Range: 82vac -138vac, 165vac - 275vac (For Personal Computer)
Frequency Range 40-70Hz(50Hz/60Hz)
OUTPUT
AC Voltage Regulation Vout (±10V)
Surge Power 4000VA 9000VA 12000VA 15000VA 18000VA
Efficiency (Peak) 88% 91%
Transfer Time <20ms <10ms
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24V 24V 48V 24V 48V
Charge Current 35A 50A 25A 70A 35A
Fast Charge Voltage 28.6VDC 28.6VDC 57.2VDC 28.6VDC 57.2VDC
Float Charge Voltage 27.4VDC 27.4VDC 54.8VDC 27.4VDC 54.8VDC
Over Charge Voltage 33.0VDC 33.0VDC 66.0VDC 33.0VDC 66.0VDC
Battery low Voltage Alarm 21.0VDC 21.0VDC 42.0VDC 21.0VDC 42.0VDC
Battery low Voltage Shutdown 20.0VDC 20.0VDC 40.0VDC 20.0VDC 40.0VDC
Protection Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit
PHYSICAL

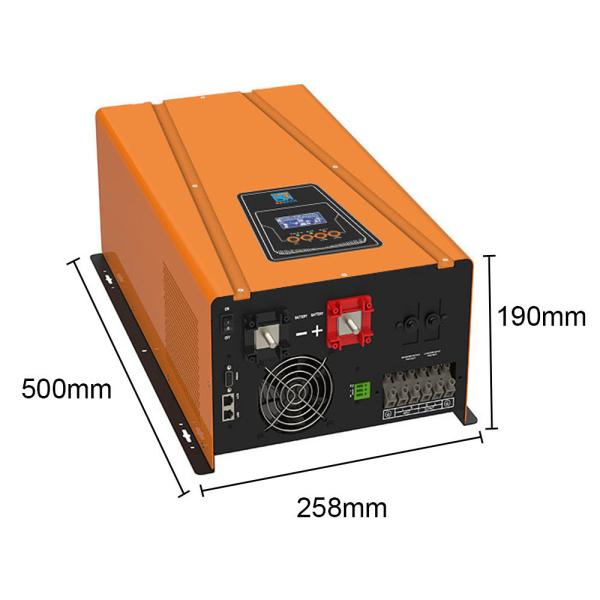

Dimension (D*W*H mm) 390*222*178 500*258*190 574*345*197 574*345*197 574*345*197
Net Weight (kgs) 15 25.2 24.6 34.4 33.8
ENVIRONMENT
Humidity 5~95% Relative Humidity (Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃

Why Choose the SSTH RP Series?

  • Efficient and Reliable — ≥ 90% efficiency minimizes losses, while pure sine wave output ensures compatibility with sensitive electronics.
  • Flexible and Global-Ready — versatile voltage/frequency options make it easy to deploy across diverse regions and applications.
  • Trusted Manufacturer — backed by SSTH’s experience, quality assurance, and customization support.
  • Compact Yet Powerful — space-saving design with high output current capacity for demanding applications.
  • B2B Friendly — suitable for OEM, wholesale, and volume projects with branding and configuration flexibility.

Recommended Applications

  • Off-grid solar systems for residential or remote use
  • Emergency backup power for sensitive electronics
  • RVs, tiny homes, and mobile workstations
  • Solar hybrid systems in emerging markets or bespoke solutions

1KW-6KW Hybrid Solar Inverter Pure Sine Wave 110V/220V

1KW-6KW Hybrid Solar Inverter Pure Sine Wave 110V/220V
