Specifications
Brand Name :
SZSSTH/OEM
Model Number :
RA
Place of Origin :
Guangdong, China
MOQ :
1pieces
Price :
USD$175.00-193.00/pieces
Network :
SDK
Type :
DC/AC Inverters
Output Type :
DUAL
Output Current :
Load
Output Frequency :
50Hz/60Hz
Size :
241*345*121 mm
Weight :
6.1KG
Output waveform :
Prue Sine Wave
Rated power :
2000W/3000W
Peak power :
3000W/6000W
Charging Current :
100A (Adjustable)
Frequency :
50/60 HZ
Shell Material :
lron
Applicable Battery Type :
Lead acid/LiFePO4/NCM batteny
Charging Method :
Constant current/constant voltage (CC/Cv)
Cooling Method :
Air Cooling
Operating Temperature :
-10℃~+45℃
Warranty :
12 Months
Description
3000W Bi-Directional UPS Inverter - 12V/220V Power Inverter with 100A Charger for Solar & Home Backup
Premium Pure Sine Wave Inverter for Reliable Power Conversion

This 3000W bi-directional power inverter combines high-efficiency energy conversion with a built-in 100A battery charger, making it ideal for solar systems, home backup, RVs, and off-grid applications.

Key Features & Benefits
  • 3000W Pure Sine Wave Output - Delivers clean, stable power for sensitive electronics (laptops, medical devices, appliances)
  • Bi-Directional Functionality - Works as both an inverter (DC to AC) and charger (AC to DC) for seamless energy management
  • Built-in 100A Smart Charger - Fast battery charging with automatic voltage detection (compatible with lead-acid/LiFePO4 batteries)
  • Multi-Protection System - Overload, short-circuit, over-temperature, and reverse polarity protection for safety
  • Wide Input Voltage (12V DC to 220V AC) - Supports flexible power sources (solar panels, batteries, grid)
  • LCD Display (Optional) - Real-time monitoring of voltage, current, and battery status (if model includes display)
Ideal Applications

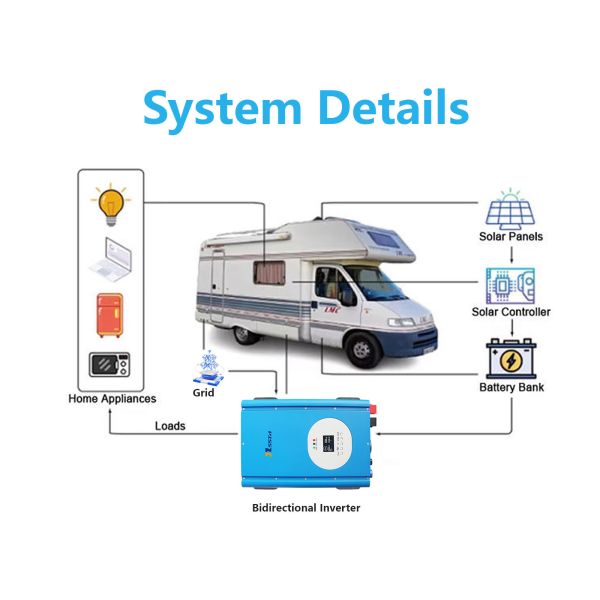

  • Solar Power Systems - Efficiently converts solar energy for home/off-grid use
  • Home & Office Backup - Keeps essential devices running during blackouts
  • RV & Marine Use - Reliable power for travel, camping, and boats
  • Emergency Power Supply - Works as a UPS (Uninterruptible Power Supply) for critical loads
Technical Specifications
AttributeValue
NetworkSDK
TypeDC/AC Inverters
Weight6.1KG
Charging MethodConstant current/constant voltage (CC/Cv)
Cooling MethodAir Cooling
Operating Temperature-10℃~+45℃
Warranty12 Months
Rated Power3000W (6000W surge)
Input Voltage12V DC
Output Voltage220V AC (Pure Sine Wave)
Charging Current100A (Adjustable)
Efficiency>90%
ProtectionsOverload/Short-Circuit/Overheat/Low Voltage
CoolingSilent fan (temperature-controlled)
Electrical Specifications
Charge Input
Voltage Range180~264VAC
Frequency Range47-63HZ
Maximum Efficiency≥91% @220VAC
Maximum Current15Amax
PF value≥0.95
Surge Current＜60ACold Start
Output
Rated Voltage13.2V (maximum charging voltage 14.8V)
Rated Current100A
Maximum Power1400W
Voltage Accuracy±0.8V
Current Accuracy≤8%
Load Regulation≤5%
Dynamic Load Regulation≤5%
Battery Charging Voltage10.5V-14.5V
