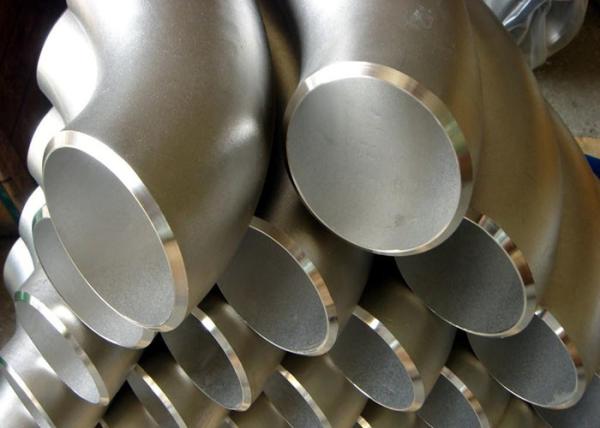

2507 SS Pipe Fittings Good Acid Corrosion Resistance High Mechanical Strength
2507 SS Pipe Fittings Good Acid Corrosion Resistance High Mechanical Strength
Specifications
Brand Name :
BOZHONG
Model Number :
2507 Stainless Steel Pipe Fitting
Certification :
ISO / TUV / DNV
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000TON/MONTH
Delivery Time :
3--10days
Packaging Details :
seaworthy packing or as required
Description :
2507 Stainless Steel Pipe Fitting
GRADE :
2507
TYPE :
Elbow,Reducer,Tee,Cap,Lab Joint Stub End
WT :
Sch5s-Xxs
Density :
7.8 g/cm3
Method :
cold or hot forged or welding
Description

2507 stainless steel pipe fitting

Product Description

Introduction

Stainless steel Super Duplex 2507 is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2507 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.

The following sections will discuss in detail about stainless steel grade Super Duplex 2507.

Chemical Composition

The chemical composition of stainless steel grade Super Duplex 2507 is outlined in the following table.

Element Content (%)
Chromium, Cr 24 - 26
Nickel, Ni 6 - 8
Molybdenum, Mo 3 - 5
Manganese, Mn 1.20 max
Silicon, Si 0.80 max
Copper, Cu 0.50 max
Nitrogen, N 0.24 - 0.32
Phosphorous, P 0.035 max
Carbon, C 0.030 max
Sulfur, S 0.020 max
Iron, Fe Balance

Physical Properties

The physical properties of stainless steel grade Super Duplex 2507 are tabulated below.

Properties Metric Imperial
Density 7.8 g/cm3 0.281 lb/in3
Melting point 1350°C 2460°F

Applications

Super Duplex 2507 is widely used in the following sectors:

  • Power
  • Marine
  • Chemical
  • Pulp and paper
  • Petrochemical
  • Water desalinization
  • Oil and gas production

Products made using Super Duplex 2507 include:

  • Fans
  • Wire
  • Fittings
  • Cargo tanks
  • Water heaters
  • Storage vessels
  • Hydraulic piping
  • Heat exchangers
  • Hot water tanks
  • Spiral wound gaskets
  • Lifting and pulley equipment
  • Propellers, rotors, and shafts
