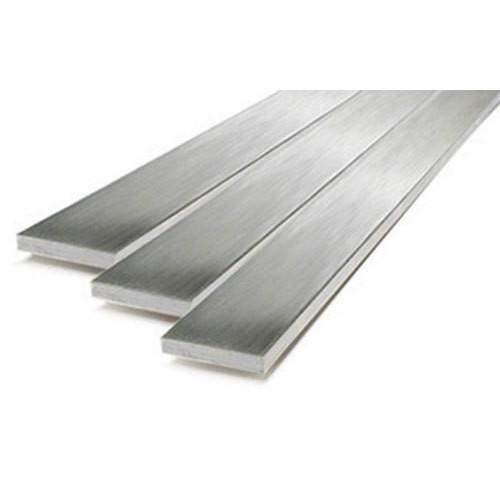

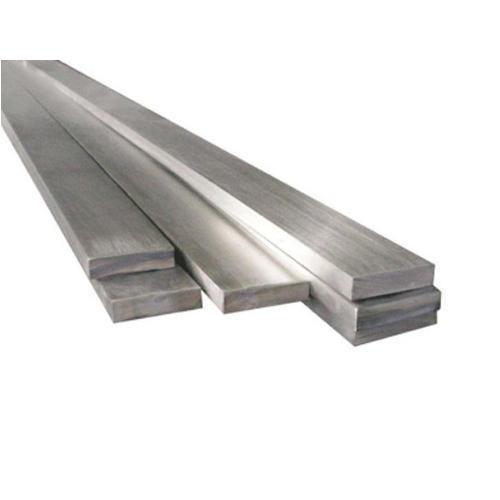

AMS 5604 S17400 Stainless Steel Flat Bar 400mm Length 6000mm
AMS 5604 S17400 Stainless Steel Flat Bar 400mm Length 6000mm
AMS 5604 S17400 Stainless Steel Flat Bar 400mm Length 6000mm
AMS 5604 S17400 Stainless Steel Flat Bar 400mm Length 6000mm
Specifications
Brand Name :
Bozhong
Model Number :
17-7 pH
Certification :
ISO / TUV / DNV
Place of Origin :
China
MOQ :
1000 KG
Price :
USD 1000
Payment Terms :
L/C, T/T
Supply Ability :
1200 Ton Per Month
Delivery Time :
5-10 Days
Packaging Details :
Seaworthy Packing
Material: :
Stainless Steel And Special Alloys
Standard: :
AMS 5604, ASTM A 693, ASME SA 693
UNS: :
S17400
Grade: :
17-7 PH
Shape: :
Round,Square,Flat,Angle
Application: :
Construction,Industry,surgical Tools
Certification: :
ISO,BV,SGS,Mill Test Certificate
Dimensions: :
3-400mm
Description
Product Description

17-4 PH is a registered trademark of AK Steel.

NS: S17400
Specifications: AMS 5604, ASTM A 693, ASME SA 693
International Specifications: Euronorm: X5CrNiCuNb16.4 Werstoff# 1.4542

Chemical Composition

The following table shows the chemical composition of grade 17-4 stainless steel.

Element Content (%)
Iron, Fe 73
Chromium, Cr 15.0 - 17.5
Nickel, Ni 3.0 - 5.0
Copper, Cu 3.0 - 5.0
Manganese, Mn 1.0
Silicon, Si 1.0
Tantalum, Ta 0.45
Niobium, Nb (Columbium, Cb) 0.45
Nb + Ta 0.15 - 0.45
Carbon, C 0.070
Phosphorous, P 0.040
Sulfur, S 0.030

Physical Properties

The physical properties of grade 17-4 stainless steel are given in the following table.

Properties Metric Imperial
Density 7.75 g/cm3 0.280 lb/in³

Mechanical Properties

The mechanical properties of annealed grade 17-4 stainless steel are displayed in the following table.

Properties Metric Imperial
Shear modulus 77.4 GPa 11200 ksi
Elastic modulus 190-210 GPa 27557-30458 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Hardness, Brinell 352 352
Hardness, Knoop (estimated from Rockwell C) 363 363
Hardness, Rockwell C 36 36
Hardness, Vickers (estimated from Rockwell C) 349 349
