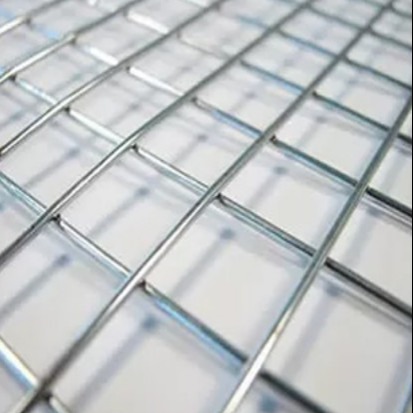

Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Welded Wire Mesh Fencing Panels
Specifications
Brand Name :
QIANPU
Certification :
ISO
Place of Origin :
Anping of China
MOQ :
50Rolls
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
20 days
Packaging Details :
Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Product Name :
SS Welded Wire Mesh
Material :
SS304 Or SS316
Hole Shape :
Square Hole
Opening Size :
6", 5", 4", 3", 2", 1", Etc
Panel Size :
3Ft× 6Ft, 4Ft × 8Ft, 5Ft × 106Ft, Etc. Customized Size.
Wire Diameter :
1.2mm, Etc
Description

Welded wire mesh panels are products made of high-quality low-carbon steel wire (or stainless steel wire) through straightening and row welding processes. After surface treatments such as galvanizing and PVC coating, they feature stable structure, corrosion resistance, durability and convenient construction, serving as a fundamental material in construction, agriculture, industry and other fields.

Core Classification

Classification Dimension Specific Types Core Features
Material Low-carbon steel mesh panels Low cost, moderate strength, suitable for general protection and construction scenarios
Stainless steel mesh panels (304/316L) Strong corrosion resistance, high temperature resistance, ideal for food, chemical and marine environments
Surface Treatment Electro-galvanizing (cold galvanizing) Low cost, thin zinc coating, suitable for indoor or short-term protection use
Hot-dip galvanizing Thick zinc coating, excellent corrosion resistance, service life of ≥10 years, applicable to outdoor or harsh environments
PVC dipping/spraying Rich color options (green, gray, blue, etc.), UV resistance, attractive appearance and durability
Application Construction mesh panels Reinforcing mesh, insulation mesh, floor heating mesh with relatively thin wire diameter (0.5-3mm)
Protection mesh panels Fencing, guardrails, cages with medium wire diameter (2.5-5mm)
Heavy-duty mesh panels (gabion mesh) Thick wire diameter (≥3mm), used for river slope protection and side slope reinforcement

Common Specifications

Mesh Size: 12.7×12.7mm (Insulation Mesh), 25.4×25.4mm, 50×50mm, 100×100mm, etc.
Wire Diameter: 0.5mm - 6.0mm (regular), up to 12mm or more for heavy-duty models
Panel Size: Standard 1×2m, customizable up to 3×6m

Main Applications

Construction engineering (core application field)
Agriculture & animal husbandry
Industry & municipal engineering
Water conservancy & environmental protection projects
Home decoration & daily use

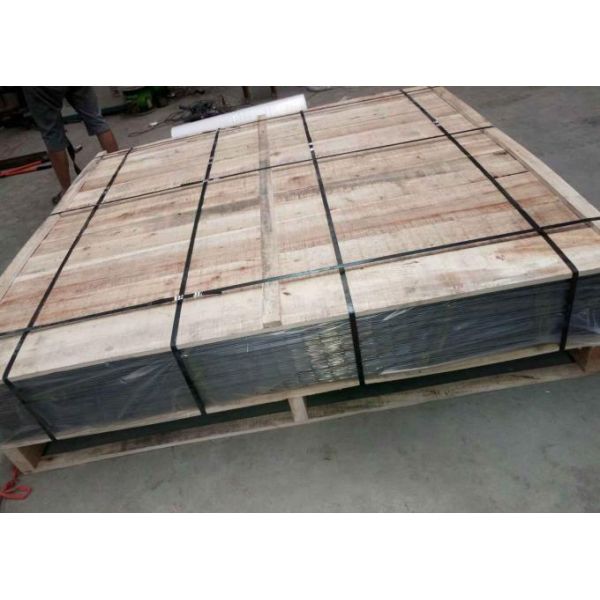

Packing:

Each roll with polyfilm with water proof paper, outside wooden pallets.
