SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility
SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility
Specifications
Certification :
ISO
Delivery Time :
2weeks
Width :
0.2m To 3.0m
Applications :
Architecture Applications, For Staircases, Facades And Ceilings.
MOQ :
50m length
Material :
Stainless Steel Rope
Payment Terms :
T/T,Western Union,L/C
Common Length :
30m, 100m
Packaging Details :
Warpped with plastic film, then in wooden case.
Weave Type :
X-Type
Brand Name :
QIANPU
Price :
Negotiable
Product Name :
X Type Rope Mesh
Place of Origin :
Anping of China
Description

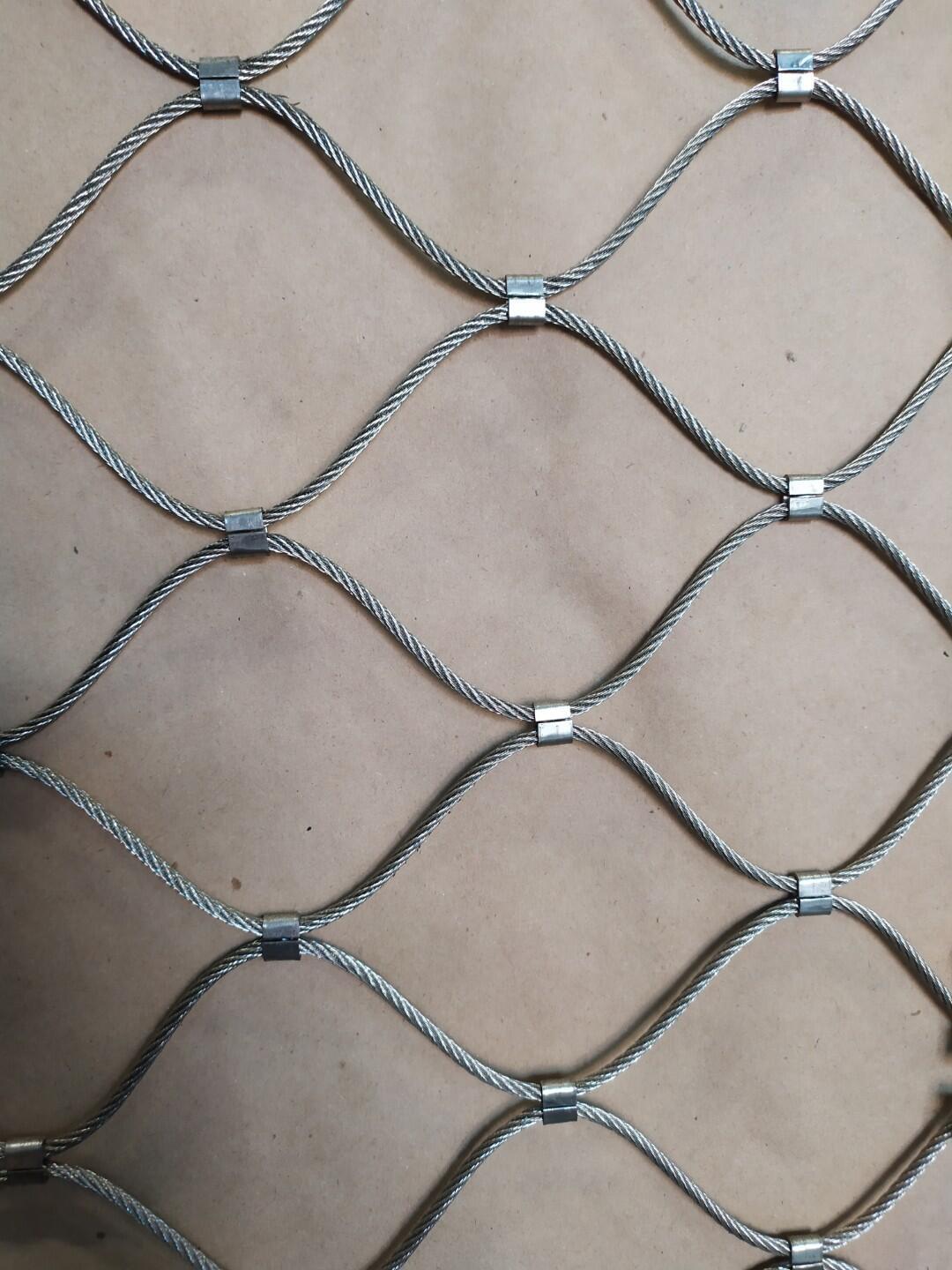

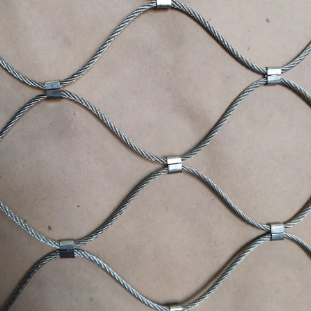

SS304 Stainless Steel Cable Mesh

SS304 stainless steel cable mesh, also known as stainless steel wire rope mesh, is assembled by 304 stainless steel multi-strand wire ropes and metal ferrules. The ferrule locking technology fixes each intersection firmly, forming flexible diamond-shape openings.

This flexible metal rope mesh features high tensile strength, great flexibility, corrosion resistance and rust-proof performance. It will not break even under strong impact. Widely used for zoo animal enclosure, architectural facade decoration, fall-protection safety net, stair balustrade infill, rockfall protection and garden barrier.

Technical Specifications
Structure: 7×7
Cable Diameter (mm) Opening Size MW × MH (mm) Transparency (%) Weight (kg/㎡) Min. Tensile Strength (KN)
1.025×4388.40.910.63
1.030×5290.60.680.63
1.035×6192.00.540.63
1.040×6993.30.440.63
1.050×8794.80.320.63
1.060×10495.80.250.63
1.070×12196.40.200.63
1.080×13996.90.170.63
1.525×4382.61.711.55
1.530×5285.91.311.55
1.540×6989.90.871.55
1.550×8792.20.641.55
1.560×10493.70.501.55
1.570×12194.60.411.55
1.580×13995.30.351.55
1.5100×17396.30.271.55
1.5120×20897.00.221.55
1.5140×24295.50.181.55
1.5160×27797.80.151.55
1.5180×31298.00.141.55
2.040×6986.11.452.75
2.050×8789.31.072.75
2.060×10491.40.852.75
2.070×12192.60.702.75
2.080×13993.60.602.75
2.0100×17395.00.452.75
2.0120×20895.90.362.75
2.0140×24296.60.302.75
2.0160×27797.10.262.75
2.0180×31297.50.232.75
2.0200×34697.80.202.75
Note: α=60°
Structure: 7×19
Cable Diameter (mm) Opening Size MW × MH (mm) Transparency (%) Weight (kg/㎡) Min. Tensile Strength (KN)
3.050×8785.22.485.12
3.060×10487.11.945.12
3.070×12189.01.595.12
3.080×13990.51.345.12
3.0100×17392.61.015.12
3.0120×20893.90.815.12
3.0140×24294.90.685.12
3.0160×27795.60.585.12
3.0180×31295.90.515.12
3.0200×34696.30.455.12
4.0200×34695.00.705.12
Note: α=60°

Other specifications according to your requirements.

Product Details
SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility

Diamond Opening Sizes: 25mm to 200mm (MW), 43mm to 436mm (MH); 60°

Cable Diameters: 1.0 mm to 4.0 mm

Roll Width: 0.2m, 0.6m, 1.0m, 1.2m, 2.0m, 3.0m

Roll Length: 2m, 10m, 15m, 30m

SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility
Materials

Stainless Steel 304, galvanized

Key Features
  • Superior Wear Resistance: High carbon steel raw material greatly extends service life under abrasive screening work
  • Stable Mesh Opening: Double crimp weaving structure keeps aperture consistent, avoids mesh deformation under heavy impact
  • High Tensile Strength: Resists shock and heavy-load hitting from stones, ores and gravel
  • Customizable Specifications: Wire diameter, aperture size, sheet size can be tailor-made per client's requirement
  • Easy Installation: Available with hook edges for direct mounting on vibrating screen machines
Applications
  • Quarry & mining: Screening stone, gravel, ore, coal
  • Crushing & aggregate plant: Material grading and separation
  • Construction industry: Particle filtering, heavy-duty safety grating
  • Recycling industry: Waste material sorting
Packing

Wrapped with plastic film, then in wooden case

SS304 Stainless Steel Cable Mesh with High Tensile Strength, Corrosion Resistance, and Great Flexibility
