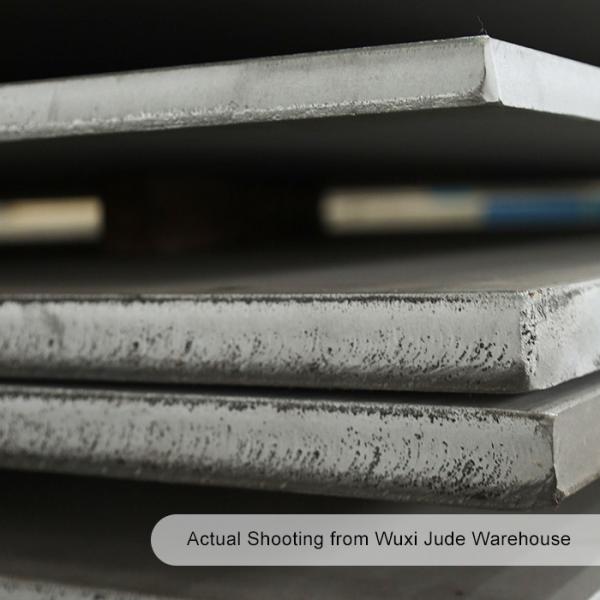

2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm
Specifications
Brand Name :
JISCO、BAO STEEL、DELONG
Model Number :
hot rolled stainless steel
Certification :
ISO9001
Place of Origin :
China
MOQ :
1MT
Payment Terms :
T/T, L/C
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
5-20 days
Packaging Details :
Water-proof paper+Wooden Pallets or Clients' requirement
Length :
3000-6000mm Or As Required
Width :
1240-2000mm Or As Required
Application :
chemical processing, transport
Technique :
Hot Rolled
Standard :
GB,AISI,JIS,DIN,ASTM
Grade :
904L,304,430
Thickness :
3-60mm
Edge :
Mill Edge,Slit Edge
Price term :
L/C T/T (30% Deposit)
Tolerance :
±1%
Description

316L STAINLESS STEEL PLATE 430 HOT ROLLED STEEL AND COLD ROLLED STEEL

The 316L stainless steel plate is a corrosion-resistant and highly durable material with excellent strength properties, making it ideal for a wide range of applications. When combined with 430 hot rolled or cold-rolled steel, it creates a composite material that possesses a unique set of properties, such as high strength and corrosion resistance. This combination makes it ideal for use in applications where strength and corrosion resistance are critical, such as in the construction of chemical processing plants, oil and gas refineries, and other harsh environments.

Name Stainless steel plate/sheet
Grade 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L,302, 301, 201, 202, 403, 405, 409, 409L, 410,
410S, 420, 430, 631, 904L, Duplex, 2205,2507,etc.
Standard JIS, AISI, ASTM, DIN, TUV,BV,SUS,EN,etc
Thickness 0.1-300mm thickness
Surface 2B, 2D, BA, NO. 1, NO. 4, NO. 8, 8K, mirror,checkered,embossed,hair line, sand blast, Brush, etching, etc
Technique Hot Rolled And Cold Rolled
Width 3-600mm -1500mm
Length 3-2000/2438/3048mm
Size 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or as required
Color Golden, Black , Sapphire Blue, Brown, Rose gold, Bronze, Purple, gray, silver, Champagne, violet, blue diamond, etc
Application Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling
Lead time 7 to 25 working days after the receipt of 30% deposit
Payment terms 30%TT for deposit, 70% balance before shipment or LC at sight
Packing Wooden pallet or according to customer's request

Available Surface

Finish Thickness Size Characteristics Applications
NO.2B 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface General Application Medical Instruments,Tableware
No. BA
(Bright Annealed)		 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose
NO.4 satin #4 0.3-3.0mm Width: 1000/1219/1500mm;
Length: any length		 Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
NO.8 (8K mirror) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 A mirror-like reflective surface by polishing with finer abrasives over 800 mesh Reflector, Mirror, Interior-Exterior decoration forbuilding
HL (Hairline) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles

Chemical Composition

The typical chemical composition is shown in the table below.


Grade		 C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤0.03 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 17.0-19.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 24.0-26.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -

Application

chemical processing, transport, and storage for a variety of industries

2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm

Packing and Shipping

2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm

Our Factory

2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm

2000mm 316l Stainless Steel Plate 430 Hot Rolled Stainless Steel Sheet 3-60mm

JUDE is a comprehensive service provider of full-process solutions for stainless steel products. Fast delivery and competitive prices have earned us market recognition.

JUDE keeps 50,000 tons of regular-size stainless steel sheets/plates in stock all year round. We provide cold-rolled stainless steel sheets with thicknesses of 0.3mm-6.0mm and hot-rolled stainless steel plates with thicknesses of 3.0mm-100mm. For the sizes which have stock, we can even do same-day shipments.
