Specifications
Brand Name :
JISCO、BAO STEEL、DELONG
Model Number :
201/304/316/316L/321/430/2205
Certification :
ISO9001
Place of Origin :
China
MOQ :
1MT
Payment Terms :
T/T, L/C
Supply Ability :
50000 Ton/Tons per Month
Delivery Time :
5-20 days
Packaging Details :
Water-proof paper+Wooden Pallets or Clients' requirement
Application :
Appliance, Auto, Building, Capital equipment, Energy, Instrumentation, Medical device, Telecommunications
Technique :
Cold Rolled/Hot Rolled
Standard :
GB,AISI,JIS,DIN,ASTM
Grade :
201/304/316/316L/321/430/2205
Thickness :
0.3mm-70mm
Edge :
Mill Edge,Slit Edge
Tolerance :
±0.05mm
Type :
Equal
Surface finish :
No.1/No.3/No.4/HL/1D/8K
Technology: :
Hot rolling/Welding/Bending/Laser Cutting
Packing :
Standardsea worthy export packing or according to the customers' request.
Roll weight :
According to customer requirements
Description

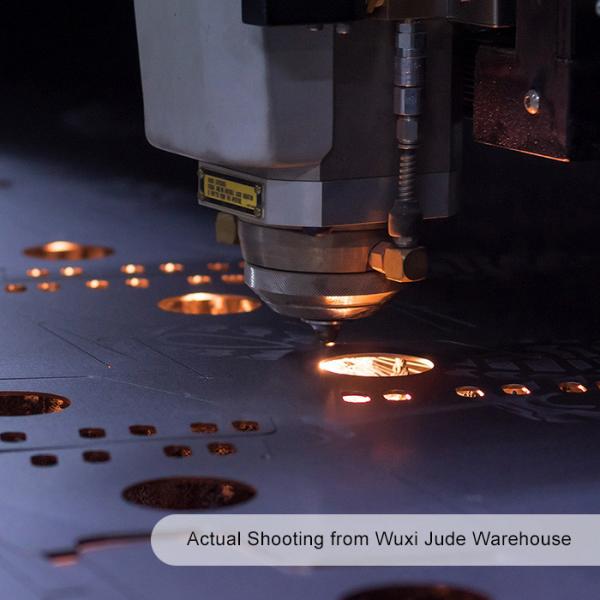

Laser cutting is a precise method of cutting stainless steel sheet metal by focusing a laser beam on the surface of the sheet metal to produce a high energy density heat source that melts and vaporizes the sheet metal material, and then blows the vapor away to achieve the cut. With the advantages of high precision, high efficiency, high quality, no contact and no pollution, laser cutting is suitable for cutting various shapes, curves and holes in stainless steel sheet metal, and features good cutting edge quality, no burr and no deformation.

Punching Press

Tonnage

 20 metric

Maximum Stroke Length

 42 mm / 1.65˝

Maximum Thickness

 6.4 mm / 0.25˝ (high density brush table)

Travel Range (w/o reposition)

 1270 mm x 2500 mm / 50˝ x 98.4˝

Maximum Weight of Material

 50 kg / 110 lbs. (F1 speed) • 150 kg / 331 lbs. (F4 speed)

Maximum Hit Rate

 X Axis 350 HPM • Y Axis 280 HPM

Turret Rotation Speed

 30 rpm

Auto-Index Rotation Speed

 60 rpm

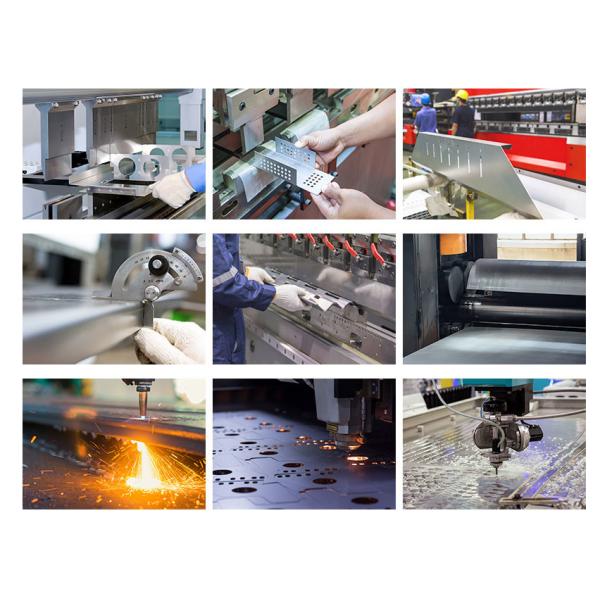

Equipment

AE 2510 NT

Plasmas cutting
Max. Length 25,000mm
Max. Width 4,500mm
Max. Thickness 6.0-120mm

Water-jet cutting
Max. Length 24,000mm
Max. Width 8,000mm
Max. Thickness 500mm

Laser cutting
Max. Length 28,000mm
Max. Width 4,100mm
Max. Thickness 40mm

Flame cutting
Max. Length 24,000mm
Max. Width 8,000mm
Max. Thickness 500mm

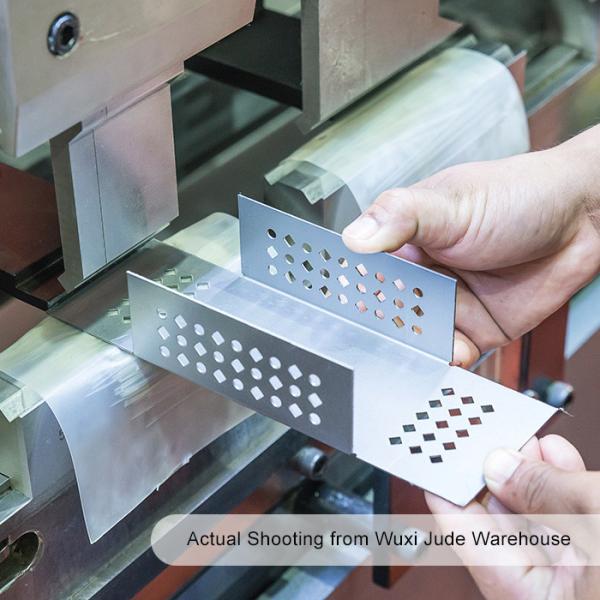

Press brake
Bending capacity 3,000 T
Max. bending length 15,000mm
Angle of bending 90° bending, non-90° bending, dead edge (including gap less than plate thickness), level difference
Equipment UAM(80-100)/2500-6100

Rolls bending
Max. Thickness 200mm
Forming C-shaped, U-shaped, full circle, multiple radius combinations

Beveling
Bending capacity 3,000 T
Max. bending length 15,000mm
Max. bending width 0~70mm
Chamfering 0°~60° adjustable
Equipment GMMA-100U/GMMA-80A Series

Chemical Composition

The typical chemical composition is shown in the table below.


Grade		 C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤0.03 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 17.0-19.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 24.0-26.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -

Surface Finish

Finish Thickness Size Characteristics Applications
NO.2B 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface General Application Medical Instruments,Tableware
No. BA
(Bright Annealed)		 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose
NO.4 satin #4 0.3-3.0mm Width: 1000/1219/1500mm;
Length: any length		 Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
NO.8 (8K mirror) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 A mirror-like reflective surface by polishing with finer abrasives over 800 mesh Reflector, Mirror, Interior-Exterior decoration forbuilding
HL (Hairline) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles

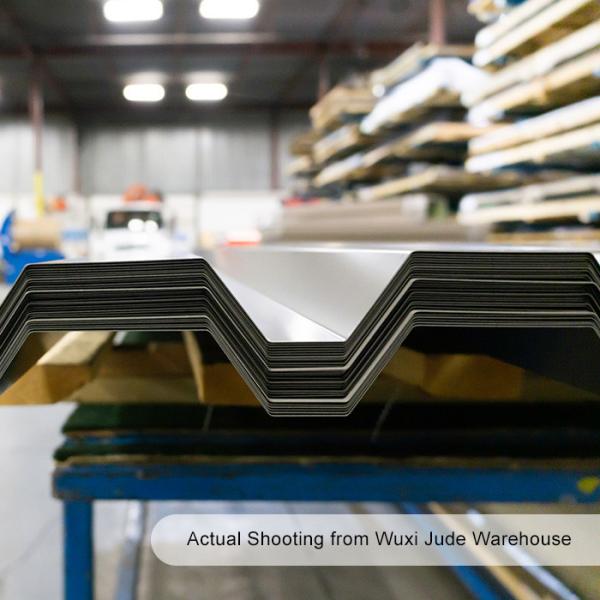

Our Warehouse

1270x2500mm 316 Stainless Steel Sheet Metal 304 Laser Cutting Sheet Bending Fabrication

Wuxi JUDE Machining Center is located in Wuxi, China, which was established in 2007. We have the most advanced stainless steel equipment in China, which can process all kinds of stainless steels from cold-rolled to hot-rolled, and from narrow strip to ultra-wide plate. We are here to meet the processing requirements of different customers.
