Seamless Stainless Steel Tube
Seamless Stainless Steel Tube
Specifications
Brand Name :
Cosco Steel
Model Number :
304/304L,316L,309S,310S,321,347,347H etc.
Certification :
ISO,SGS,CQC,etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
600Tons/Month
Delivery Time :
20-25 days
Packaging Details :
Plastic bag in bundle,Wooden box,etc.
Surface Finished :
Annealed And Pickled - AP Finish
Outside Diameter :
219.1mm ( +/- 1% tolerance )
Wall Thickness :
8.18mm ( +/- 10% tolerance )
Length Of Pipe :
6100mm ( +/-5mm )
Material :
0Cr18Ni9(304), 00Cr19Ni10(304L), 1Cr18Ni9Ti(321), 0Cr17Ni12Mo2(316) etc
Standard :
ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
Description

ASTM A312 AISI304 304L 316L SS Pipe Seamless Stainless Steel Pipe​

Quick Detail:

Standard Specification

ASTM A312,A213,A249,A269,A270A789,A554,A790,etc.

Material

304,304L,309S,310S,316L,317L,321,,347,347H,2205 etc.

Outer Diameter

6mm to 325mm

Wall Thickness

0.5mm to 25mm

Length

6m, 12m, 18m

Type

Round Pipe

Description:

  1. Size DN(in): 1/8” to 20” According to ANSI B36.1, B36.19M
  2. Wall Thickness: From Sch5s to XXS
  3. Length of pipe: Single Random, Double Random,20Feet etc.
  4. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

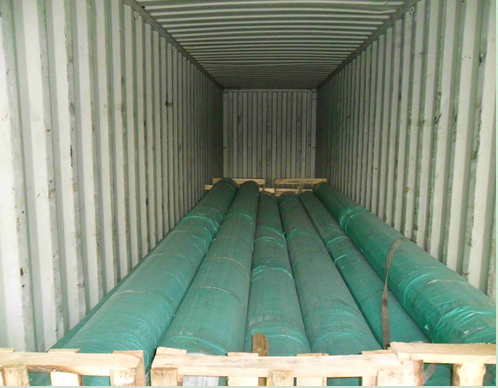

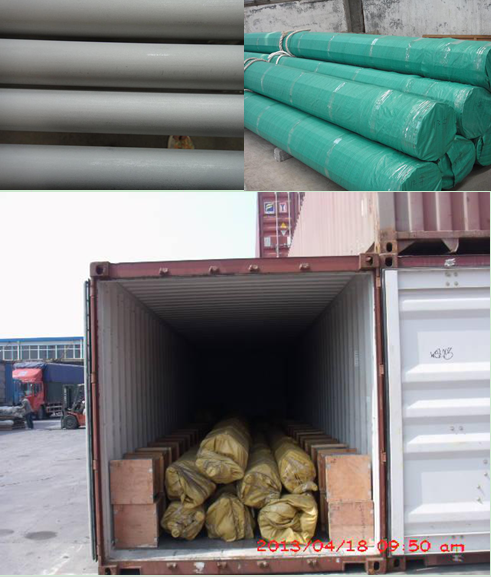

  5. Packing: Pipe cap both end,plastic bag in bundle
  6. H.S Code: 7304419000
  7. Material: 0Cr18Ni9(304), 00Cr19Ni10(304L), 1Cr18Ni9Ti(321), 0Cr17Ni12Mo2(316), 00Cr17Ni14Mo2(316L), 0Cr18Ni12Mo2Ti(316Ti), 0Cr19Ni13Mo3(317), 00Cr19Ni13Mo3(317L), 0Cr25Ni20(310S), 1Cr19Ni11NB(317H)
  8. Standard: U.S.A Standard ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M Germany Standard DIN2462, DIN17456 Japanese Standard JIS G3463, JIS G3459

Applications:

We,this type seamless steel pipe be widely used in kinds of industries:

  1. Petroleum,Chemical industry,Environment protection equipment,
  2. Medical equipment,Shipbuilding industry,Paper making factory,
  3. Electric power plant,Pollution discharging project etc.

Specifications

Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe

Specification covers

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe

Diameter Tolerance

+/-1%

Permitted Variations

In

Wall Thickness

Tolerance,% from Nominal

NPS Designator Over Under

1/8 to 21/2 inc., all t/D ratios 20 12.5

3 to 18 inc., t/D up to 5% incl. 22.5 12.5

3 to 18 inc., t/D over 5% 15 12.5

20 and larger,welded,all t/D ratios 17.5 12.5

20 and larger,seamless,t/D up to 5% incl. 22.5 12.5

20 and larger,seamless,t/D over 5% 15 12.5

Where: t = Nominal Wall Thickness

D = Ordered Outside Diameter

Inspection item
  1. Size(outside,wall,length);
  2. 2.Surface of Pipe;
  3. Chemical Composition;
  4. 4.Mechanical Testing
  5. Hydro-static Or Nondestructive Electric Test
  6. ICT(Inter-granular Corrosion Test) etc.

Ordering Information
  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Test report requirements etc.

Our advantage

  1. Competitive price with good quality
  2. Soonest delivery days (Big enough stock 304L Seamless Pipe in warehouse)
  3. Good quality control system
  4. Good after sales services
  5. Good package
