Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length
Specifications
Brand Name :
Modern
Model Number :
904L
Certification :
BV
Place of Origin :
Shandong, China
MOQ :
500Kg
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
8000Ton per year
Delivery Time :
10-15 working days, prompt delivery.
Packaging Details :
Standard export seaworthy package,or as required. *Wooden Box. *Wooden Pallet. *Woven Bag with Bundle in 3 Points.
Standard :
AISI, ASTM, DIN, EN, GB, JIS, ANSI,SUS
Type :
Seamless
Surface :
Bright, pickling ,polishing,annealing,etc.
Application :
Construction,Decoration,Industry
Steel grade :
900 series
Thickness :
1mm-150mm(SCH10-XXS)
Shape :
Round
Length :
3000mm~6000mm
Item :
904L Cold drawn Stainless Steel Pipe Tube Seamless with Small diameter
Package :
Standard Seaworthy Package
Description

904L Cold drawn Stainless Steel Pipe Tube Seamless with Small diameter

Product Description

Standard: ASTM A249, ASTM A268, ASTM A269, ASTM A312, etc.

Material: 904L

Item: 904L Cold drawn Stainless Steel Pipe Tube Seamless with Small diameter

Specification:

Outer diameter: 1.0-1220mm (1/8”-48”)

Wall thickness: 0.1-150mm (SCH 5S- XXS)

Length: 3m, 5.8m, 6m, 11.8m, or as request.

Surface: Pickled, annealed, polished, bright, sand blast, hair line, etc.

What is 904L stainless steel?

904L (N08904 ,EN1.4539) super austenitic stainless steel contains 14.0-18.0% chromium, 24.0-26.0% nickel, and 4.5% molybdenum.

904L super austenitic stainless steel is a low-carbon high-nickel, molybdenum austenitic stainless acid-resistant steel, which is a proprietary material introduced by the French company H · S. Has good activation-passivation transformation ability, excellent corrosion resistance, good corrosion resistance in non-oxidizing acids such as sulfuric acid, acetic acid, formic acid, and phosphoric acid, and good in neutral chloride-containing media Resistance to pitting corrosion, and has good resistance to crevice corrosion and stress corrosion. It is suitable for sulfuric acid of various concentrations below 70 ° C. It also has good corrosion resistance in acetic acid at any concentration and temperature under normal pressure, and mixed acids of formic acid and acetic acid.

Datasheet for 904L Stainless steel

Chemical Composition%
Material C Si Mn P S Cr Mo Ni Cu
904L ≤0.02 ≤1.00 ≤2.00 ≤0.045 ≤0.035 19.0-23.0 4.0-5.0 23.0-28.0 1.0-2.0
Mechanical Properties
Material

Yield Strength

N/mm2

 Tensile Strength
N/mm2		 Elongation
(%)
904L ≥216 ≥490 ≥35

904L Stainless steel Applications

  • Wiring in electrostatic precipitators
  • Oil refinery components
  • Seawater cooling devices
  • Gas scrubbing plants
  • Pulp and paper processing industries
  • Acetic, phosphoric and sulphuric acid processing plants

904L Grade Specification Comparison

Grade UNS No Old British Euronorm Swedish SS
BS En No Name
904L N08904 904S13 - 1.4539 X1NiCrMoCuN25-20-5 2562

Production Process of stainless steel seamless pipes

Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length

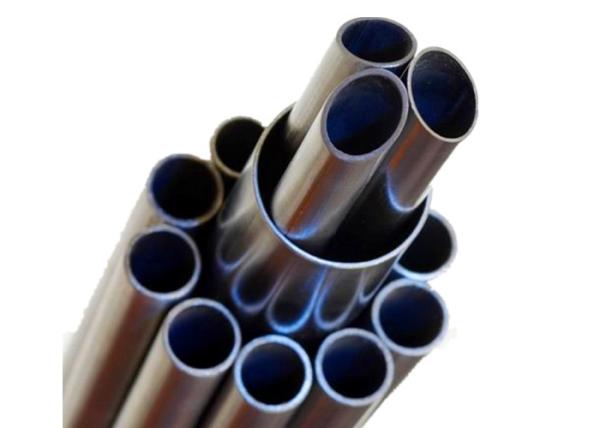

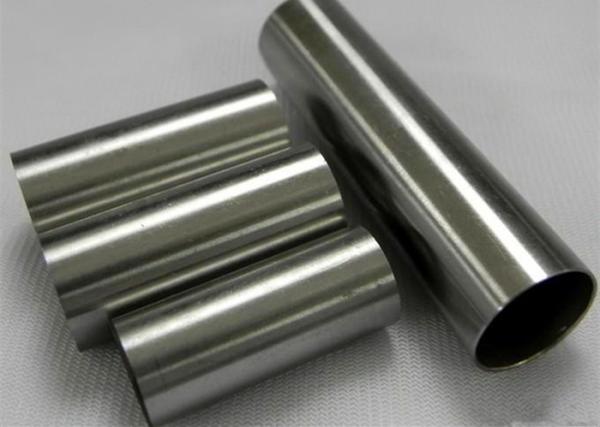

Products' Photos

Cold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm LengthCold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm LengthCold Drawn Stainless Steel Seamless Pipe Small Diameter 3000mm-6000mm Length

The sheet for pipes' diameter and thickness

Unit: mm
Nominal diameter Out diameter Nominal wall thickness
A B ASME JIS DIN JIS DIN SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
15 1/2" 21.3 21.7 21.3 2.8 2.0 2.11 - 2.41 2.77 2.77 - 3.73 3.73 - - - 4.78 7.47
20 3/4" 26.7 27.2 26.9 2.8 2.3 2.11 - 2.41 2.87 2.87 - 3.91 3.91 - - - 5.56 7.82
25 1" 33.4 34.0 33.7 3.2 2.6 2.77 - 2.90 3.38 3.38 - 4.55 4.55 - - - 6.35 9.09
32 1 1/4" 42.2 42.7 42.4 3.5 2.6 2.77 - 2.97 3.56 3.56 - 4.85 4.85 - - - 6.35 9.70
40 1 1/2" 48.3 48.6 48.3 3.5 2.6 2.77 - 3.18 3.68 3.68 - 5.08 5.08 - - - 7.14 10.15
50 2" 60.3 60.5 60.5 3.8 2.9 2.77 - 3.18 3.91 3.91 - 5.54 5.54 - - - 8.74 11.07
65 2 1/2" 73.0 76.3 76.1 4.2 2.9 3.05 - 4.78 5.16 5.16 - 7.01 7.01 - - - 9.53 14.02
80 3" 88.9 89.1 88.9 4.2 3.2 3.05 - 4.78 5.49 5.49 - 7.62 7.62 - - - 11.13 15.24
90 3 1/2" 101.6 101.6 - 4.2 - 3.05 - 4.78 5.74 5.74 - 8.08 8.08 - - - - -
100 4" 114.3 114.3 114.3 4.5 3.6 3.05 - 4.78 6.02 6.02 - 8.56 8.56 - 11.13 - 13.49 17.12
125 5" 141.3 139.8 139.7 4.5 4.0 3.40 - - 6.55 6.55 - 9.53 9.53 - 12.7 - 15.88 19.05
150 6" 168.3 165.2 168.3 5.0 4.5 3.40 - - 7.11 7.11 - 10.97 10.97 - 14.27 - 18.26 21.95
200 8" 219.1 216.3 219.1 5.6 6.3 3.76 6.35 7.04 8.18 8.18 10.31 12.70 12.70 15.09 18.26 20.62 23.01 22.23
250 10" 273.0 267.4 273.0 5.8 6.3 4.19 6.35 7.80 9.27 9.27 12.70 12.70 15.09 18.26 21.44 25.40 28.58 25.40
300 12" 323.8 318.5 323.9 6.6 7.1 4.57 6.35 8.38 9.53 10.31 14.27 12.70 17.48 21.44 25.40 28.58 33.32 25.40
350 14" 355.6 355.6 355.6 6.9 8.0 6.35 7.92 9.53 9.53 11.13 15.09 12.70 19.05 23.83 27.79 31.75 35.71 -
400 16" 406.4 406.4 406.4 7.9 8.8 6.35 7.92 9.53 9.53 12.70 16.66 12.70 21.44 26.19 30.96 36.53 40.49 -
450 18" 457.2 457.2 457.0 7.9 10.0 6.35 7.92 11.13 9.53 14.27 19.05 12.70 23.83 29.36 34.93 39.67 45.24 -
500 20" 508.0 508.0 508.0 7.9 11.0 6.35 9.53 12.70 9.53 15.09 20.62 12.70 26.19 32.54 38.10 44.45 50.01 -
550 22" 555.8 558.8 - - - 6.35 9.53 12.70 9.53 - 22.23 12.70 28.58 34.93 41.28 47.63 53.98 -
600 24" 609.6 609.6 610.0 - 12.5 6.35 9.53 14.27 9.53 17.48 24.61 12.70 30.96 38.89 46.02 52.37 59.54 -
650 26" 660.4 660.4 - - - 7.92 12.70 - 9.53 - - 12.70 - - - - - -
700 28" 711.2 711.2 711.0 - 12.5 7.92 12.70 15.88 9.53 - - 12.70 - - - - - -
750 30" 762.0 762.0 - - - 7.92 12.70 15.88 9.53 - - 12.70 - - - - - -
800 32" 812.8 812.8 813.0 - 12.5 7.92 12.70 15.88 9.53 17.48 - 12.70 - -
850 34" 863.6 863.6 - - - 7.92 12.70 15.88 9.53 17.48 - 12.70 - -
900 36" 914.4 914.4 914.0 - 12.5 7.92 12.70 15.88 9.53 19.05 - 12.70 - -
950 38" 965.2 965.2 - - - 7.92 12.70 15.88 9.53 - - 12.70 - -
1000 40" 1016.0 1016.0 1016.0 - 12.5 7.92 12.70 15.88 9.53 - - 12.70 - -
1050 42" 1066.8 1066.8 - - - - - - 9.53 - - 12.70 - -
1100 44" 1117.6 1117.6 - - - - - - 9.53 - - 12.70 - - - - - -
1150 46" 1168.4 1168.4 - - - - - - 9.53 - - 12.70 - - - - - -
1200 48" 1219.2 1219.2 1220.0 - - - - - 9.53 - - 12.70 - - - - - -
