CL1.6 10 Bar All Stainless Steel Pressure Gauge EN 837-1 Bayonet Ring Silicone Oil Filled 63mm Industrial Manometer

Product Overview

This 63mm stainless steel pressure gauge is designed for industrial pressure measurement up to 10 bar. It is manufactured in accordance with EN 837-1 standard and built with a bourdon tube sensing element for mechanical pressure indication.

The gauge features a bayonet ring case structure and silicone oil filling, providing excellent vibration resistance and stable pointer reading in dynamic operating conditions such as pumps, compressors, and hydraulic systems.

With CL1.6 accuracy and full stainless steel construction, it is suitable for demanding industrial environments requiring durability and reliability.

Technical Specifications

Applications

• Hydraulic systems
• Industrial pump systems
• Air compressor systems
• HVAC systems
• Water treatment systems
• Mechanical equipment monitoring
• Industrial process control systems

Key Advantages

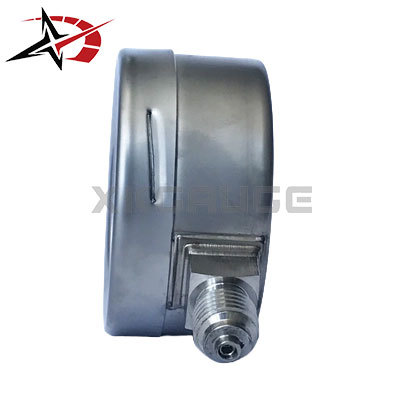

Bayonet Ring Structure

Improves sealing performance and allows safer internal pressure release in extreme conditions.

Silicone Oil Filled Anti-Vibration Design

::contentReference[oaicite:0]{index=0} Reduces pointer fluctuation caused by pulsation and vibration in pump and hydraulic systems.

CL1.6 Industrial Accuracy

Provides reliable measurement performance for general industrial applications.

EN 837-1 Standard Compliance

Ensures global industrial compatibility and measurement reliability.

Full Stainless Steel Construction

Corrosion-resistant body suitable for harsh industrial environments.

Working Principle

The bourdon tube deforms when pressure is applied. This mechanical motion is transmitted through a linkage system to rotate the pointer and display pressure values on the dial.

Silicone oil filling dampens vibration and stabilizes pointer movement under pulsating pressure conditions.

FAQ

What is CL1.6 accuracy?

CL1.6 means ±1.6% full-scale accuracy for industrial pressure measurement.

Why use bayonet ring pressure gauge?

It improves case sealing and structural safety in industrial environments.

What is silicone oil filled pressure gauge used for?

It is used to reduce vibration and improve reading stability in pumps and hydraulic systems.

What industries use this pressure gauge?

It is widely used in HVAC, hydraulic, chemical, and industrial process systems.
