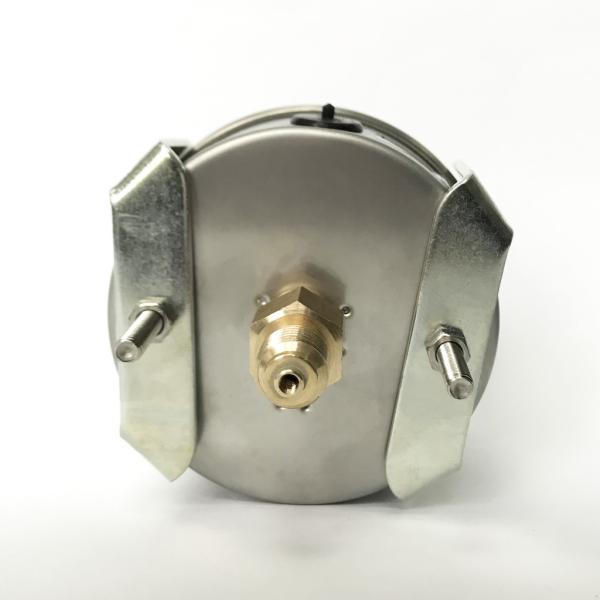

Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.80.B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
75mm
Mount :
Panel Mount
Pressure Range :
60 psi or Customized
Case Material :
316 SS, 304 SS
Lens Material :
Instrument glass
Bourton Tube :
Phosphor bronze
Movement :
Brass
Dial :
Aluminum
Accuracy :
1.5
Liquid :
Silicone oil, glycerin
Description

3 Inches 60 psi Stainless Steel Case Brass Wetted Parts 3/8" NPT Bracket Mount Liquid Filled Pressure Gauge

Description

Mechanical, liquid-filled gauges are sealed to keep the liquid in. When there are temperature fluctuations, the liquid expands or contracts and creates “case pressure”. This exerts a force that interferes with the pressure reading.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 80mm

Accuracy

 Acc.1.5
Pressure range 60 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, colorful, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 3/8 G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Stainless Steel 60 Psi Pressure Gauge 3 Inches 3/8 NPT Oil Pressure Gauge Bracket
