40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M01.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
40mm
Mount :
Axial
Pressure Range :
100 MPa
Color :
White
Case Material :
Stainless Steel
Lens :
PC glass
Movement :
Copper alloy
Thread :
1/8" or 1/4" PT, NPT, G, BSP
Accuracy :
2.5
Bracket :
U-Clamp
Description

40mm Stainless Steel Case Pressure Gauge 100 psi Axial Mount Manometer Acc 2.5 with U Clamp

Description

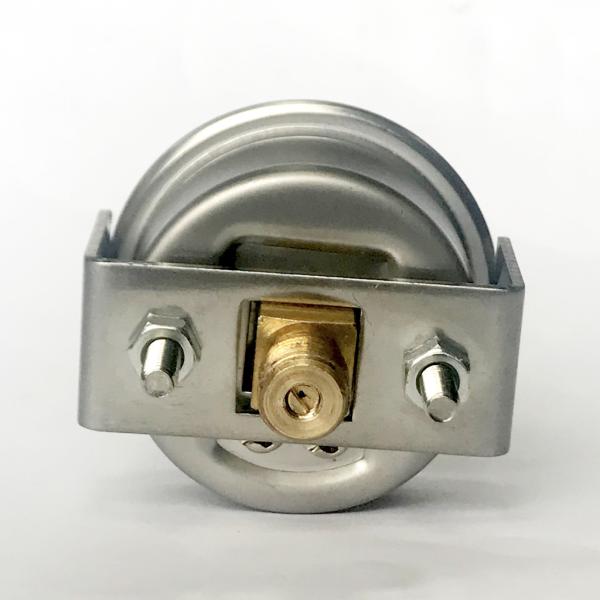

This pressure gauge has a very concise dial plate, black lettering with white background. Black pointer with stop pin. The U-clamp helps the pressure gauge easily to be installed on the panels.

Applications

Injection Molding Device, Hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems

Special features

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 100 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C
Medium: +80 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale

Process connection

 Brass

Pressure element

 Bourdon tube, brass
Movement Copper alloy
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection thread
Surface mounting flange
Mounting bracket


Ordering information
Model / Dial size / Pressure Range / Process connection / Options


40mm 100 Psi Pressure Gauge Axial Mount Manometer Acc 2.5 U Clamp Pressure Gauge
