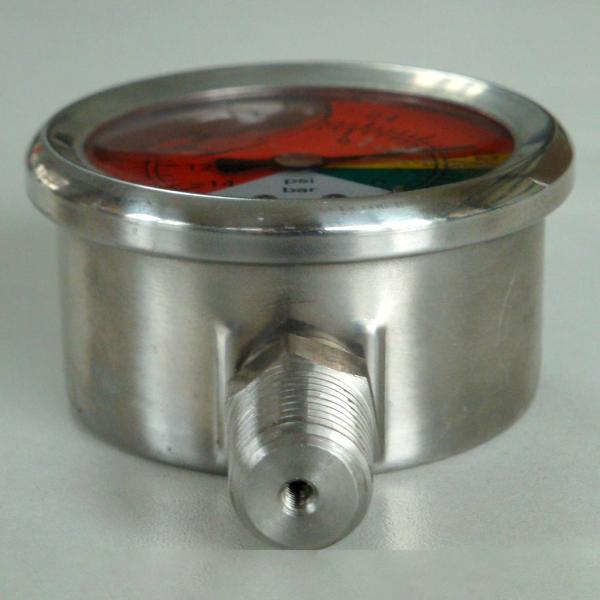

50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
50mm All Stainless Steel Pressure Gauge 14 Psi 1 Bar Glycerine Filled Vacuum Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.02.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
50mm
Mount :
Lower
Pressure Range :
-1 bar or Customized
Case Material :
SS 304
Lens Material :
PC glass
Bourton Tube :
Stainless Steel
Movement :
Stainless Steel
Dial :
Aluminum, colorful
Liquid :
Glycerine
Description

50mm 2" All Stainless Steel Pressure Gauge -14 psi -1 bar Glycerine Filled Vacuum Manometer G1/4"

Description

Wesen manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. This instrument has as safety function a blow-out device with blow-out plug on the back of the case. In the event of a failure, overpressure can escape there.

Applications

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 50mm

Accuracy

 1.6, 1.0
Pressure range -14 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS 316L, C-type bourdon tube
Movement SS 304
Dial Aluminium, colorful, with pointer stop pin
Black lettering
Pointer Aluminium
Case SS 304
Ring Rolling ring, stainless steel
Window PC, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
