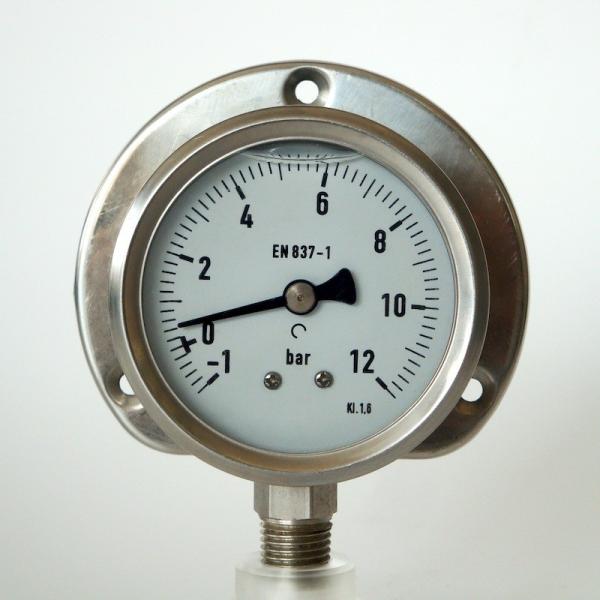

12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.063.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Panel Mount
Pressure Range :
12 bar or Customized
Ring :
Rolling type
Case Material :
SUS 316L
Window :
PC
Bourton Tube :
SUS 316
Movement :
SUS 304
Liquid :
Glycerin, silicone oil
Color :
White
Description

63mm 12 bar Heat-supply Pipe Applications Flange Panel Mount All Stainless Steel Pressure Gauge

Description

Suitable for corrosive applications where the medium will not attack stainless steel. Ideally suited to harsh environmental conditions, due to the all stainless steel construction, which can be supplied dry or if protection is required against pulsation and or vibration these gauges can be supplied liquid filled. An ideal solution for any harsh environment pressure measurement application

Applications

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 2.5
Pressure range 1.6 MPa (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS 316L, H-type bourdon tube
Movement SS 304
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case SS 304
Ring Necking-down, stainless steel
Window PC, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

12 Bar 63mm Panel Mount Pressure Gauge Front Flange All Stainless Steel EN 837-1
