3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
100mm
Mount :
Bottom
Pressure Range :
200 bar or Customized
Case Material :
Stainless Steel
Lens Material :
Glass, safety glass
Bourton Tube :
Stainless Steel
Movement :
Stainless Steel
Dial :
Aluminum
Accuracy :
KL 1.0
Description

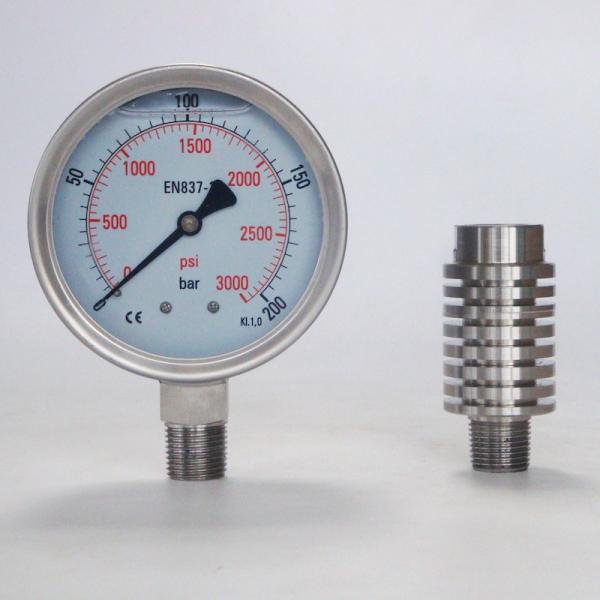

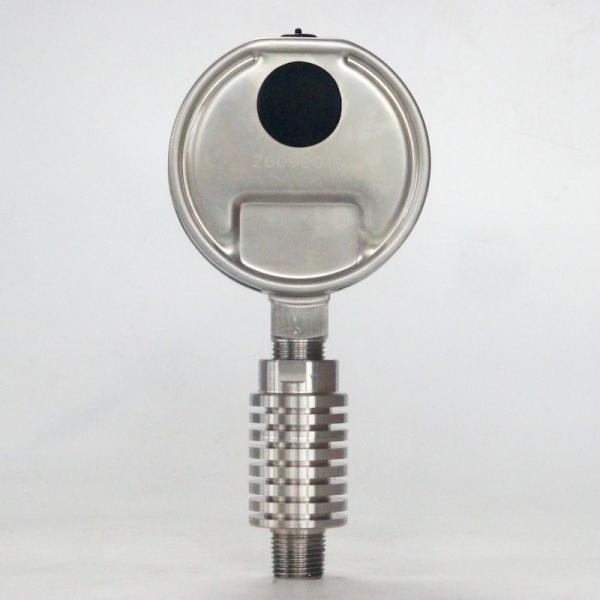

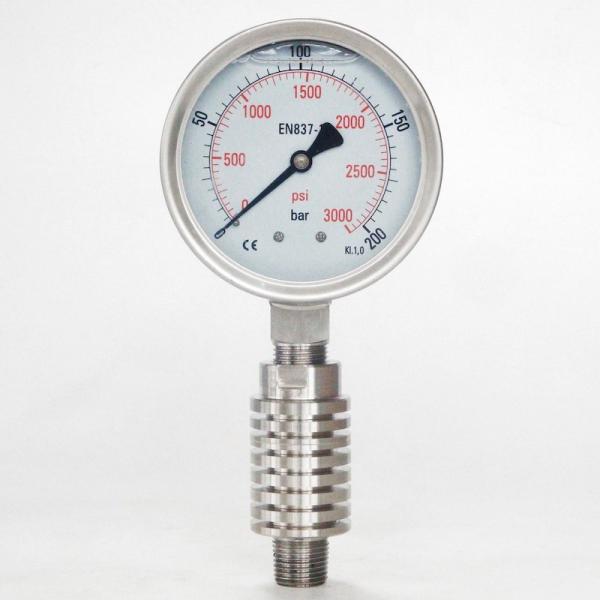

4" 200 bar 3000 psi Hot Medium Manometer All Stainless Steel Pressure Gauge with Heat Sink

Description

This type of pressure gauge is a curved tube with an oval profile. The pressure of the fluid to be measured acts inside the tube and the tube straightens out when the pressure increases. A mechanism amplifies the movements of the tube and transforms them into a rotary motion for the needle. Bourdon tube pressure gauges are used for pressures from 0.6 to 4,000 bar, they are sensitive to overpressure. For aggressive media, the material of the Bourdon tube must be adapted.

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.6, 1.0, 2.5
Pressure range 200 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

Model M03.01, lower mount (radial)

3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

3000 Psi 200 Bar All Stainless Steel Pressure Gauge KL 1.0 Bottom Connection
