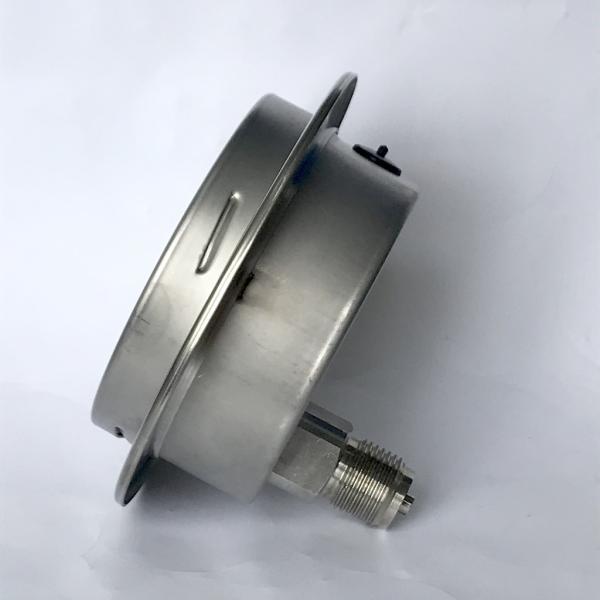

2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
2.5 Bar 100mm All Stainless Steel Pressure Gauge KL 1.0 Panel Mount
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.02.100.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm
Mount :
Flange
Pressure Range :
2.5 bar or Customized
Ring :
Bayonet
Case Material :
Stainless steel 316L
Window :
Shatterproof glass
Bourton Tube :
Stainless steel 316
Movement :
Stainless steel 304
Liquid :
Glycerin, silicone oil
Deaign :
EN837-1
Description

100mm 2.5 bar KL 1.0 Panel Mount Refinery Application All Stainless Steel Pressure Gauge

Description

The type M02F is specifically designed and manufactured to exact panel builder requirements. With exclusive features, it is ideal when used for panel mount gauges in the oil and gas, refinery, petrochemical, and food and beverage industries.

Applications

With liquid-filled case for applications with high dynamic pressure pulsations or vibration

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Processindustry:chemical/petrochemical, power stations, mining, on and off shore, environmental technology, mechanical engineering, machine building and plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.0
Pressure range 2.5 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS 316L, H-type bourdon tube
Movement SS 304
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case SS 304
Ring Necking-down, stainless steel
Window PC, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
