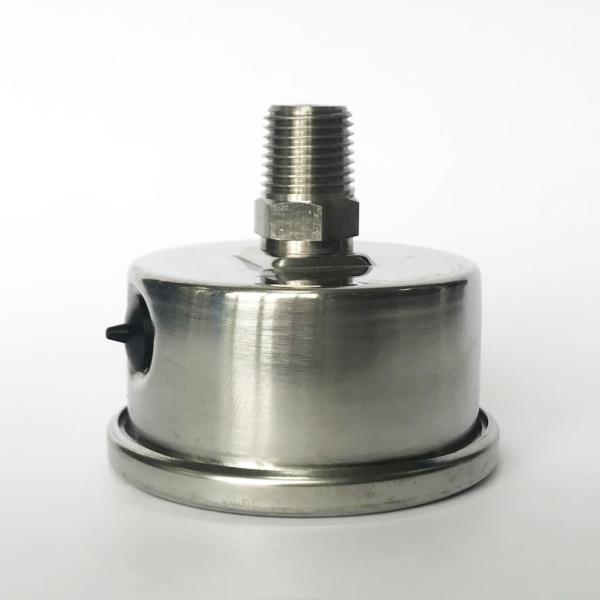

Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.02.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
50mm
Mount :
Back Mount
Pressure Range :
-0.1 Mpa, vacuum
Case Material :
Stainless Steel
Lens Material :
PC
Bourton Tube :
Stainless Steel
Movement :
Stainless Steel
Dial :
Aluminum
Color :
Metallic
Description

50mm 2" -0.1 MPa Steam Manometer Stanless Steel Vacuum Pressure Gauge

Description

One of the most important factors to consider is the pressure range of the gauge. Generally speaking, you should use a gauge that is able to read at least twice the amount of the expected working pressure. This provides a reasonable margin of safety for using the gauge. As a rule of thumb, operating pressure should never go above three-quarters of a gauge’s reading range.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 50mm

Accuracy

 2.5, 1.6
Pressure range -0.1 MPa vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 SS

Pressure element

 SS, C-type or helical type
Movement SS
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case SS
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Stainless Steel Vacuum Pressure Gauge 50mm 0.1 MPa Steam Manometer
