Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar
Specifications
Brand Name :
WESEN or Customized
Model Number :
M05.01.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
50mm
Mount :
Bottom, Radial
Pressure Range :
400 bar or customized
Case Material :
Black-painted Steel
Window :
Polycarbonate (PC)
Bourton Tube :
Phosphor Bronze, helical type
Movement :
Copper alloy
Dial :
Aluminum
Accuracy :
2.5
Description

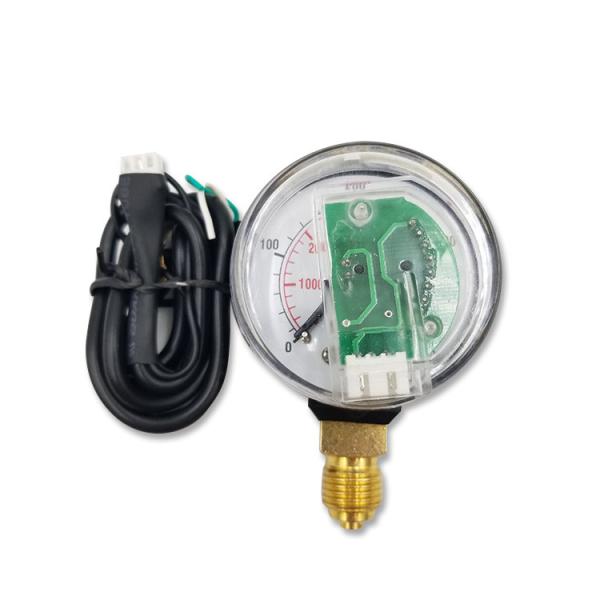

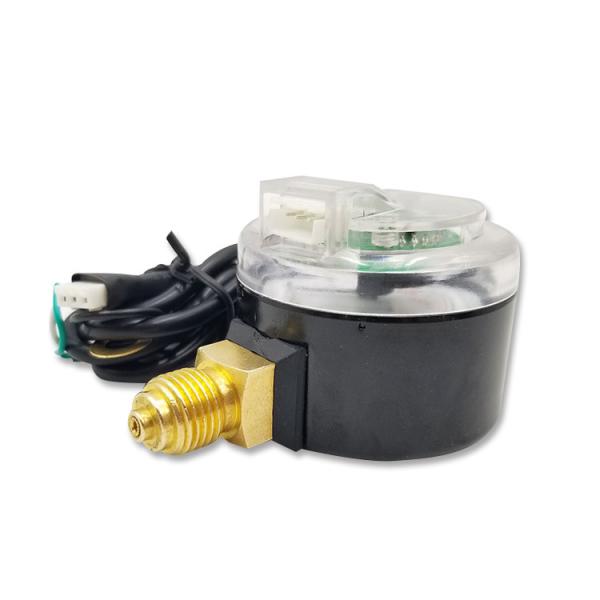

50mm Non-linear Electrical Output Signal External Cable CNG Pressure Gauge 400 bar

Description

Resistive CNG pressure sensor using the AEB standard for 1/4 radial thread.
With mechanical reading by means of a gauge directly on the sensor (tank level indication from empty to full is shown in a clockwise direction).

The sensor transforms the pressure of a tank into an electrical signal if combined with a switch unit / AEB indicator pre-arranged for such purpose.
No calibration required.

Applications

Measurement of the filling pressure in gas tanks for CNG vehicles

Special features

Non-contact optical sensor (wear-free)

Nominal size 2”(50 mm)

Robust steel case

Scale range 0/6,000 PSI

Specifications

Design

EN 837-1

Nominal size

 50mm

Accuracy

 2.5
Pressure range

0~400 bar

0/6,000 PSI

or other equivalent units of pressure or vacuum

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value

Short time: full scale value

Permissible temperature

Ambient: -40 ... +120 °C
Medium: -40 ... +120 °C

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Bourdon tube, brass, helical type
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Black steel, painted steel
Window PC, with integrated optical electronics
Options

Other pressure connections

Custom dial layout

Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales

Electronics

Output signal (with supply voltage 12V DC) 600 PSI ±150 PSI: 2.5 V ± 1.5 V

1000 PSI ±150 PSI: 5 V ± 1.5 V

1500 PSI ±150 PSI: 7.5 V ± 1.5 V

2000 PSI ±150 PSI: 11.3 V - 2 V
Output signal (with supply voltage 5V DC) 600 PSI ±150 PSI: 1.5 V ± 0.3 V

1000 PSI ±150 PSI: 2.5 V ± 0.3 V

1500 PSI ±150 PSI: 3.5 V ± 0.5 V

2000 PSI ±150 PSI: 4.5 V ± 0.5 V
Supply voltage 12 or 5 V DC
Electrical connector Connector, 3-pin

Dimensions

Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar

Non Linear CNG Pressure Gauge 50mm Hydraulic Pressure Gauge 400 Bar

Dimensions in mm
A B D E H T W Weight
50 42.5±0.5 9.5 10 45±1 1/4" 14 0.125 kg

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
