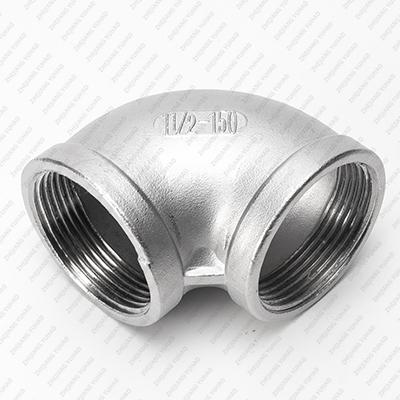

304 316 Stainless Steel 90 Degree Female Thread Elbow DN15-DN200
304 316 Stainless Steel 90 Degree Female Thread Elbow DN15-DN200
Specifications
Brand Name :
YUHAO
Model Number :
Screwed pipe fittings
Certification :
ASTM, AISI, GB, DIN, JIS
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
5-15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
Shape :
Elbow
Connection Type :
Threaded or Socket Welded
Application :
Connection, Decoration, oil and gas, Automative, New Energy, Chemical
Type :
Female
Thread Type :
BSPT, BSPP, NPT, PS, DIN
Material :
316, 316L, 304, 304L, Carbon
Standard :
DIN, ANSI, ASTM, JIS, GB
Packing :
wooden case,Bags，pallets
Brand :
Yuhao
Wall Thickness :
SCH5-SCH160
Description

DN15 to DN200 304 316 Stainless Steel Screwed Pipe Fittings SS 90 Degree Female Thread Elbow


►Products description

Stainless Steel 90° Female Thread Elbow – Precision-Engineered for Optimal Flow Control


Product Excellence:
Our stainless steel 90° female thread elbows are masterfully crafted to provide superior directional flow control in pressurized piping systems. Manufactured from premium 304/316 stainless steel, these precision components deliver:

  • Perfect 90° Redirection: Engineered for smooth flow transition with minimal pressure drop
  • Dual Female Thread Design: NPT/BSP threaded ends ensure secure, leak-proof connections
  • Exceptional Durability: Corrosion-resistant construction withstands extreme temperatures (-20°F to 1000°F)


Manufacturing Superiority:
We combine cutting-edge technology with uncompromising quality standards:


  • ✔ Advanced Production Process:
  • 5-axis CNC machining for perfect dimensional accuracy (±0.005")
  • Automated thread rolling with proprietary surface treatment
  • Full-spectrum material testing from raw stock to finished product


✔ Stringent Quality Protocols:

  • 100% thread gauge verification to ASME B1.20.1 standards
  • Material certification meeting ASTM A403/A276 requirements
  • Hydrostatic testing available up to 1.5x rated pressure


Our Competitive Advantages:

  • Complete Vertical Integration: Controlling every manufacturing step under one roof
  • Global Compliance: ASME B16.11, ISO 9001:2015, PED certified
  • Technical Support: Dedicated engineering team for application consulting


Available Specifications:

  • Materials: 304, 304L, 316, 316L, 321, 347, duplex (2205), super duplex (2507)
  • Size Range: 1/8" to 4" NPT/BSP (other standards available)
  • Surface Finishes: Mill finish, electropolished (Ra<15μ"), passivated
  • Marking: Laser-etched with full material traceability


Why Professionals Choose Our Elbows:

  • Optimized Flow Dynamics: Computational fluid dynamics-designed interior geometry
  • Zero-Leak Guarantee: Proprietary thread sealing technology
  • Vibration Resistance: Precision-machined engagement surfaces
  • Inventory Availability: 50,000+ standard units ready for immediate shipment


Trust our stainless steel 90° female thread elbows for critical applications where directional change reliability is paramount. Engineered to outperform in chemical processing, oil/gas, marine, and high-purity systems.


Contact our fluid systems specialists today for technical consultation and custom solutions!


►Product Information

Place of Origin Zhejiang, China
Thread BSPT, BSPP, NPT, PS, DIN
Material 316, 316L, 304, 304L, Carbon
Application Oil, Water, Industrial, Chemical, Water
Package Standard sea worth bundles,Standard Plywood cases
Size 1/8"-32"
Casting Method Investment precision casting, CNC machine
Brand Yuhao
Wall Thickness SCH5-SCH160


►Products Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7
1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 -
6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7



►Shotp Shoot

304 316 Stainless Steel 90 Degree Female Thread Elbow DN15-DN200

304 316 Stainless Steel 90 Degree Female Thread Elbow DN15-DN200

304 316 Stainless Steel 90 Degree Female Thread Elbow DN15-DN200


►FAQ

Q1: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q2: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q3: Can you provide the free samples?

A: We can supply the free samples but the sample express freight need paid by yourside.

Q4: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.

Q5: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.
